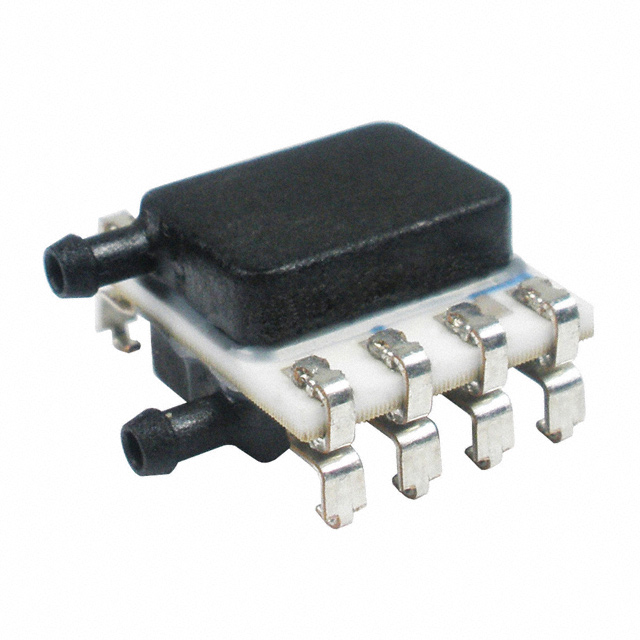

HSCMRRD Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 15PSID 0.08" 12BIT 8SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Output | Package / Case | Operating Pressure | Operating Pressure | Features | Supplier Device Package | Maximum Pressure | Maximum Pressure | Pressure Type | Port Style | Mounting Type | Applications | Port Size | Port Size | Port Size | Accuracy | Output [Min] | Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | I2C | 3.6 V | 3 V | J Lead | 12 b | 8-SMD Dual Ports J-Lead Same Side | 103.42 kPa | 15 PSI | Amplified Output Temperature Compensated | 8-SMD | 60 PSI | 413.69 kPa | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | ||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | SPI | 3.6 V | 3 V | J Lead | 12 b | 8-SMD Dual Ports J-Lead Same Side | 689.48 kPa | 100 PSI | Amplified Output Temperature Compensated | 8-SMD | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | ||||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | Analog Voltage | 5.05 V | 4.95 V | J Lead | 8-SMD Dual Ports J-Lead Same Side | 7.48 kPa | 1.08 PSI | Amplified Output Temperature Compensated | 8-SMD | 12.65 PSI | 87.21 kPa | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | 0.5 V | 4.5 V | |
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | I2C | 3.33 V | 3.27 V | J Lead | 12 b | 8-SMD Dual Ports J-Lead Same Side | 0.25 kPa | 0.04 PSI | Amplified Output Temperature Compensated | 8-SMD | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | ||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | I2C | 3.6 V | 3 V | J Lead | 12 b | 8-SMD Dual Ports J-Lead Same Side | 16 kPa | 2.32 PSI | Amplified Output Temperature Compensated | 8-SMD | 20.31 PSI | 140 kPa | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | ||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | I2C | 3.6 V | 3 V | J Lead | 12 b | 8-SMD Dual Ports J-Lead Same Side | 0.6 kPa | 0.09 PSI | Amplified Output Temperature Compensated | 8-SMD | 9.79 PSI | 67.5 kPa | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | ||
Honeywell Sensing and Productivity Solutions | 85 °C | -20 C | Analog Voltage | 5.05 V | 4.95 V | J Lead | 8-SMD Dual Ports J-Lead Same Side | 0.25 kPa | 0.04 PSI | Amplified Output Temperature Compensated | 8-SMD | 9.76 PSI | 67.28 kPa | Differential | Barbed | Surface Mount | Board Mount | 1.93 mm | Dual Male Tube | 0.08 " | 0.25 % | 0.5 V | 4.5 V |
