PBO-10C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 9V 10W

Part	Line Regulation	Load Regulation	Approval Agency	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Voltage - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Current - Output (Max) [Max]
CUI Inc. PBO-10C-9	1 %	1.5 %	CE cURus	1	80 %	32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	10 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	9 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module

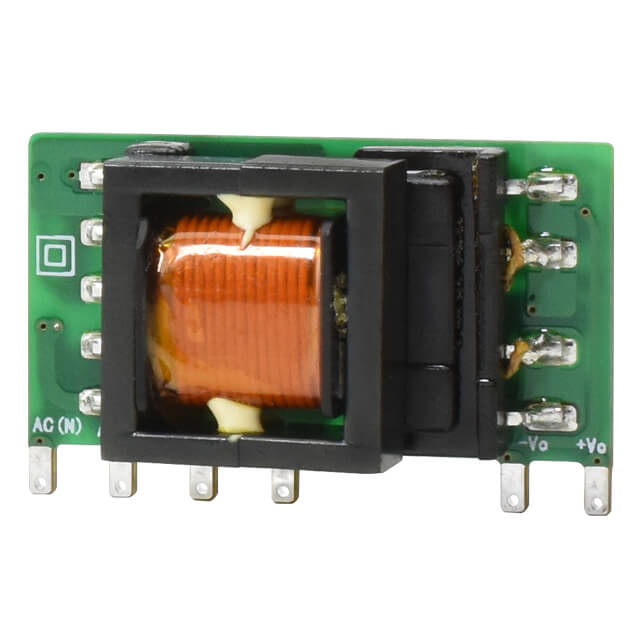

CUI Inc. PBO-10C-15	1 %	1.5 %	CE cURus	1		32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	10 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	15 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	670 mA
CUI Inc. PBO-10C-12	1 %	1.5 %	CE cURus	1		32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	10 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	12 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	830 mA
CUI Inc. PBO-10C-3	1 %	1.5 %	CE cURus	1	73 %	32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	6.6 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	3.3 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	2 A
CUI Inc. PBO-10C-5	1 %	1.5 %	CE cURus	1	77 %	32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	10 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	5 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	2 A
CUI Inc. PBO-10C-24	1 %	1.5 %	CE cURus	1	83 %	32 mm	1.26 in	0.68 in	17.2 mm	0.59 in	15 mm	60335-1 62368-1	10 W	-40 °C	85 °C	Household Appliances ITE (Commercial)	Through Hole	24 V	Open Frame	85 VAC 100 V	305 VAC 430 VDC	6-SIP Module	420 mA
