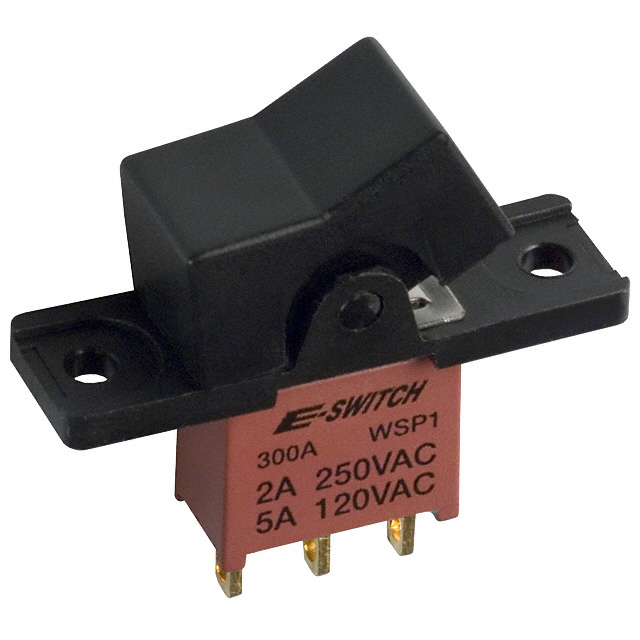

300AWSP3 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPDT 5A 120V

Part	Electrical Life	Voltage Rating - DC	Circuit	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Actuator Type	Mounting Type	Actuator Marking	Ingress Protection	Features	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
E-Switch 300AWSP3J1BLKVS3QE	30000 Cycles	28 V	SPDT	120 V	85 °C	-30 ░C	5 A	Black	On-Off-On	Concave	Through Hole	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	PC Pin
E-Switch 300AWSP3R1M1RE	30000 Cycles	20 V	SPDT	20 V	85 °C	-30 ░C	0.4 VA	Black	On-Off-On	Concave	Flange Panel Mount	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Solder Lug	7.2 mm	13.14 mm
E-Switch 300AWSP3J5BLKVS2RE	30000 Cycles	20 V	SPDT	20 V	85 °C	-30 ░C	0.4 VA	Black	On-Off-On	Concave	Through Hole	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	PC Pin
E-Switch 300AWSP3J1BLKM7RE	30000 Cycles	20 V	SPDT	20 V	85 °C	-30 ░C	0.4 VA	Black	On-Off-On	Concave	Right Angle Through Hole Vertical	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	PC Pin
E-Switch 300AWSP3R1BLKM1QE	30000 Cycles	28 V	SPDT	120 V	85 °C	-30 ░C	5 A	Black	On-Off-On	Concave	Flange Panel Mount	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Solder Lug	7.2 mm	13.14 mm
E-Switch 300AWSP3R1M1QE	30000 Cycles	28 V	SPDT	120 V	85 °C	-30 ░C	5 A	Black	On-Off-On	Concave	Flange Panel Mount	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Solder Lug	7.2 mm	13.14 mm
E-Switch 300AWSP3R2M1RE	30000 Cycles	20 V	SPDT	20 V	85 °C	-30 ░C	0.4 VA	Black	On-Off-On	Paddle	Flange Panel Mount	No Marking	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Solder Lug	7.2 mm	13.14 mm
