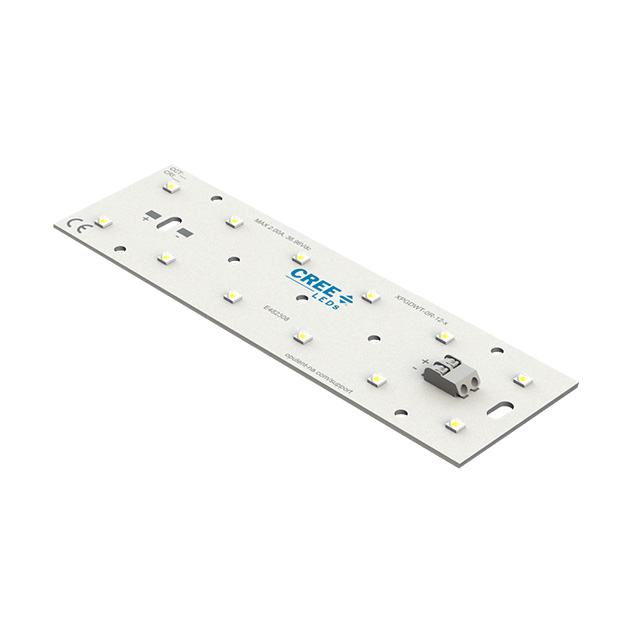

LSR1-12 Series

Catalog

LED LIGHTING MODULES RCTNGL 2X6 WHT 4000K 70-CRI 8405LM

Part	Current - Test	Height [z]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Forward (Vf) (Typ)	Temperature - Test	Luminous Flux @ Current/Temperature	Lens Type	CCT (K)	Current - Max [Max]	Configuration	Color	CCT (K)
New Energy LSR1-12C32-4070-00	350 mA	1.52 mm	171 lm/W	70	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1968 lm	Flat	4000 K	2 A	Rectangle	Neutral White
New Energy LSR1-12C32-4080-00	350 mA	1.52 mm	155 lm/W	80	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1776 lm	Flat	4000 K	2 A	Rectangle	Neutral White
New Energy LSR1-12C32-5770-00	350 mA		171 lm/W	70	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1968 lm	Domed	5700 K	2 A	Rectangle	Cool White
New Energy LSR1-12C32-5070-00	350 mA		171 lm/W	70	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1968 lm	Domed	5000 K	2 A	Rectangle	Cool White	5-Step MacAdam Ellipse
New Energy LSR1-12C32-3070-00	350 mA	1.52 mm	163 lm/W	70	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1872 lm	Flat	3000 K	2 A	Rectangle	Warm White	5-Step MacAdam Ellipse
New Energy LSR1-12C32-3080-00	350 mA	1.52 mm	145 lm/W	80	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1668 lm	Flat	3000 K	2 A	Rectangle	Warm White	5-Step MacAdam Ellipse
New Energy LSR1-12C32-2790-00	350 mA		119 lm/W	90	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1368 lm	Domed	2700 K	2 A	Rectangle	Warm White	5-Step MacAdam Ellipse
New Energy LSR1-12C32-5080-00	350 mA	1.52 mm	163 lm/W	80	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1872 lm	Flat	5000 K	2 A	Rectangle	Cool White	5-Step MacAdam Ellipse
New Energy LSR1-12C32-5780-00	350 mA	1.52 mm	163 lm/W	80	45.01 mm	146.61 mm	LED Module	32.76 V	85 °C	1872 lm	Flat	5700 K	2 A	Rectangle	Cool White
