SC1565 Series

Catalog

LDO VOLTAGE REGULATORS ULDO 1.5A 1.8V SO-8

Part	Package / Case	Package / Case	Package / Case	Supplier Device Package	Number of Regulators	Voltage - Output (Min/Fixed)	Protection Features	Voltage - Input (Max) [Max]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Mounting Type	Current - Output	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Control Features
Semtech Corporation SC1565IS-1.8TRT	0.154 in	8-SOIC	3.9 mm	8-SO	1	1.8 V	Over Current Over Temperature	5.5 V	Positive	-40 °C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
Semtech Corporation SC1565IM-2.5TRT		D2PAK (3 Leads + Tab) TO-263-4 TO-263AA		TO-263	1	2.5 V	Over Current Over Temperature	5.5 V	Positive	-40 °C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA

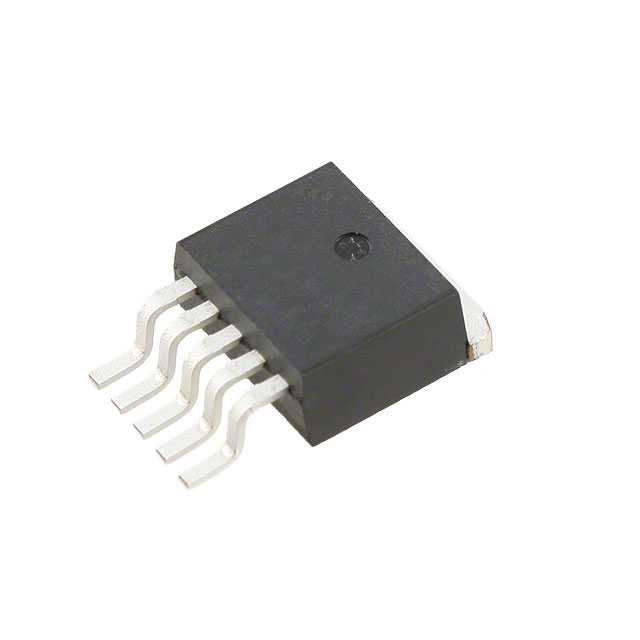

Semtech Corporation SC1565I5M2.5TRT		D2PAK TO-263-6 TO-263BA		TO-263-5	1	2.5 V	Over Current Over Temperature	5.5 V	Positive	-40 °C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
Semtech Corporation SC1565IS-2.5TRT	0.154 in	8-SOIC	3.9 mm	8-SO	1	2.5 V	Over Current Over Temperature	5.5 V	Positive	-40 C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
Semtech Corporation SC1565IT-2.5T		TO-220-3		TO-220	1	2.5 V	Over Current Over Temperature	5.5 V	Positive	-40 C	150 °C	35 µA	Through Hole	1.5 A	0.6 V	1.75 mA
Semtech Corporation SC1565IST25TRT		TO-261-4 TO-261AA		SOT-223-3	1	2.5 V	Over Current Over Temperature	5.5 V	Positive	-40 C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
Semtech Corporation SC1565IST18TRT		TO-261-4 TO-261AA		SOT-223-3	1	1.8 V	Over Current Over Temperature	5.5 V	Positive	-40 C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
Semtech Corporation SC1565I5M1.8TRT		D2PAK TO-263-6 TO-263BA		TO-263-5	1	1.8 V	Over Current Over Temperature	5.5 V	Positive	-40 C	150 °C	35 µA	Surface Mount	1.5 A	0.6 V	1.75 mA	Enable
