8505 Series

Catalog

HOOK-UP STRND 26AWG GRAY

Part	Jacket Color	Qualification	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Cable Type	Conductor Strand [x]	Conductor Strand [x]	Length [x]	Length [x]	Voltage	Length	Length
Belden Inc. 8505 008100	Gray	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7	100 ft	30.5 m	600 V
Belden Inc. 8505 004100	Yellow	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7	100 ft	30.5 m	600 V
Belden Inc. 8505 0041000	Yellow	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7			600 V	304.8 m	1000 ft
Belden Inc. 8505 0081000	Gray	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7			600 V	304.8 m	1000 ft
Belden Inc. 8505 0031000	Orange	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7			600 V	304.8 m	1000 ft

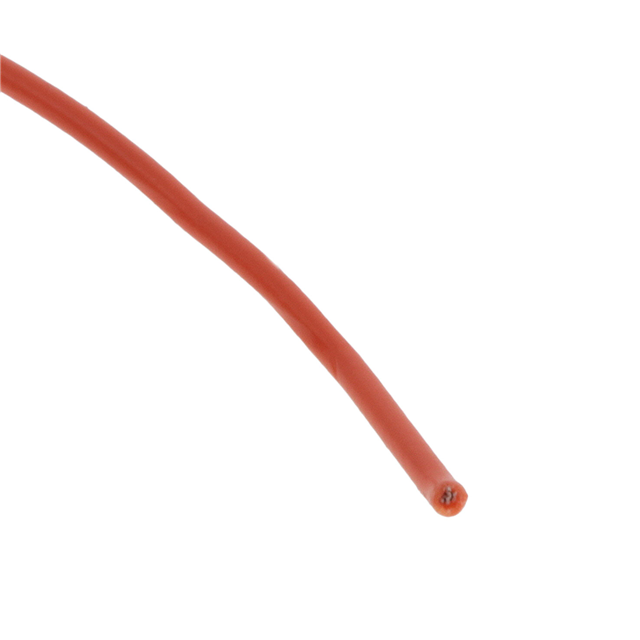

Belden Inc. 8505 003100	Orange	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7	100 ft	30.5 m	600 V
Belden Inc. 8505 005100	Green	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7	100 ft	30.5 m	600 V
Belden Inc. 8505 0021000	Red	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7			600 V	304.8 m	1000 ft
Belden Inc. 8505 0011000	Brown	MIL-W-16878/1 Type B	0.25 mm	0.01 in	Copper Tinned	26 AWG	0.99 mm	0.039 in	Poly-Vinyl Chloride (PVC)	Hook-Up	34 AWG	7			600 V	304.8 m	1000 ft
