PH14 Series
Manufacturer: Panduit Corp
Beta
⌘K

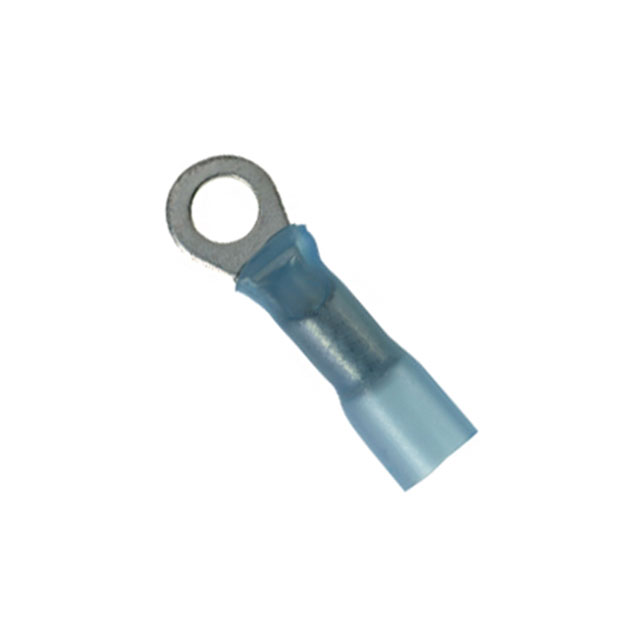

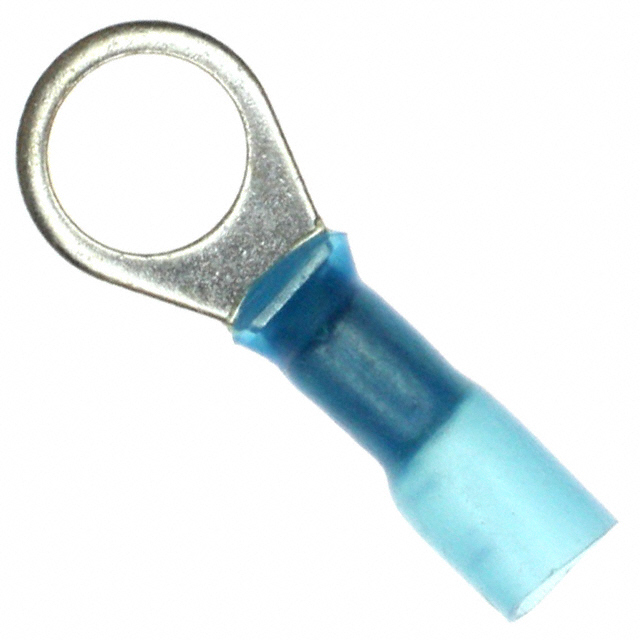

RING TONGUE TERMINAL, M4, #8, 14 AWG, 2.5 MM², PH-R SERIES, BLUE
| Part | Material - Insulation [custom] | Insulation Diameter [diameter] | Insulation Diameter | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges [y] | Length - Overall [x] | Length - Overall | Insulation | Color | Mounting Type | Contact Finish | Contact Material | Termination | Features | Terminal Type | Length - Overall [x] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Polyolefin | 0.19 in | 4.83 mm | 8 Stud | 7.87 mm | 0.31 in | 1.03 in | 26.16 mm | Insulated with Heat Shrink | Blue | Free Hanging (In-Line) | Tin | Copper | Crimp | Brazed Seam | Circular | ||
 Panduit Corp | Polyolefin | 0.19 in | 4.83 mm | 3/8 Stud | 13.46 mm | 0.53 in | 1.24 in | Insulated with Heat Shrink | Blue | Free Hanging (In-Line) | Tin | Copper | Crimp | Brazed Seam | Circular | 31.5 mm | ||
Panduit Corp | ||||||||||||||||||
 Panduit Corp | Polyolefin | 0.19 in | 4.83 mm | 11.68 mm | 0.46 in | 1.24 in | Insulated with Heat Shrink | Blue | Free Hanging (In-Line) | Tin | Copper | Crimp | Brazed Seam | Circular | 31.5 mm | 0.3125 Stud | ||
Panduit Corp | Polyolefin | 0.19 in | 4.83 mm | 7.87 mm | 0.31 in | 1.06 " | Insulated with Heat Shrink | Blue | Free Hanging (In-Line) | Tin | Copper | Crimp | Brazed Seam | Circular | 26.92 mm | 6 Stud |
