SFH 2505 Series

Catalog

SENSOR PHOTODIODE 900NM RADIAL

Part	Spectral Range [Max]	Spectral Range [Min]	Response Time	Mounting Type	Package / Case	Diode Type	Wavelength	Active Area	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Typ)	Viewing Angle
ams-OSRAM USA INC. SFH 2505-Z	1100 nm	750 nm	5 ns	Through Hole	Radial	PIN	900 nm	1 mm˛	50 V	85 °C	-40 C	100 pA	30 °

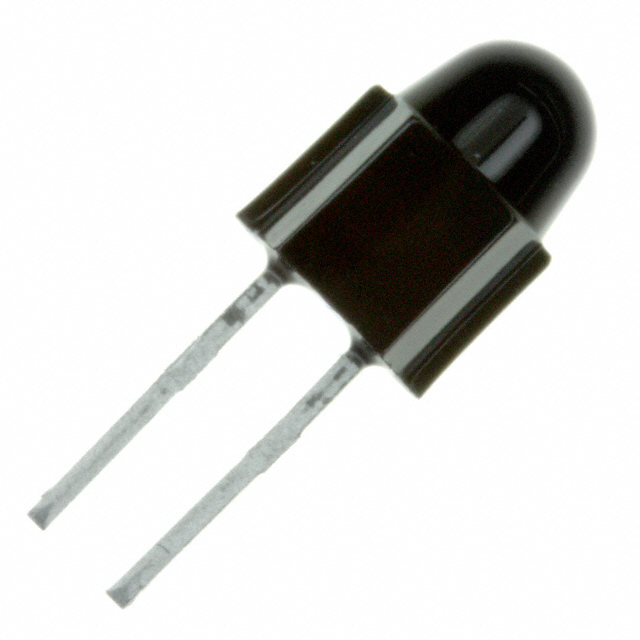

ams-OSRAM USA INC. SFH 2505 FA-Z	1100 nm	750 nm	5 ns	Through Hole	Radial	PIN	900 nm	1 mm˛	50 V	85 °C	-40 C	100 pA	30 °
