NPTC272 Series

Catalog

CONN HDR 54POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Shape	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post	Insulation Height [z]	Insulation Height	Connector Type	Voltage Rating	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Features	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions NPTC272KFMP-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	Black	UL94 V-0	0.1 "	2.54 mm	54	Tin	0.299 "	7.6 mm	Header	250 V	3 A	Push-Pull	Surface Mount	Female Socket	All	125 °C	-40 C	2	Board Guide	Solder	0.1 in	2.54 mm

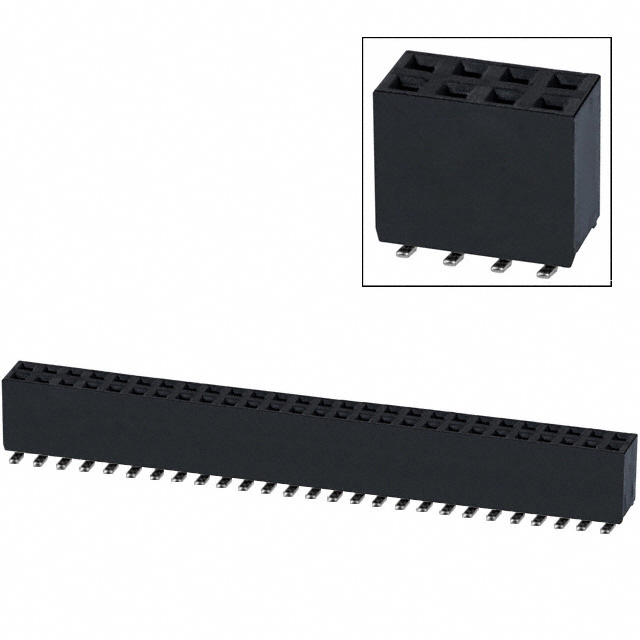

Sullins Connector Solutions NPTC272KFMS-RC	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Square	Black	UL94 V-0	0.1 "	2.54 mm	54	Tin	0.299 "	7.6 mm	Header	250 V	3 A	Push-Pull	Surface Mount	Female Socket	All	125 °C	-40 C	2		Solder	0.1 in	2.54 mm
