KC Series
Manufacturer: E-Switch
Beta
⌘K
ROTARY SWITCHES ROTARY, PANEL MOUNT
| Part | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Termination Style | Angle of Throw | Mounting Type | Number of Positions | Contact Timing | Depth Behind Panel [z] | Actuator Type [diameter] | Actuator Type | Current Rating (Amps) | Number of Poles per Deck | Voltage Rating - AC | Circuit per Deck | Contact Finish | Number of Decks [custom] | Index Stops | Contact Material | Accessory Type | For Use With/Related Products | Actuator Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10.2 mm | 7 mm | Solder Lug | 30 ° | Panel Mount | 8 | Non-Shorting (BBM) | 20.7 mm | 6 mm | Round | 350 mA | 1 | 125 V | SP8T | Silver | 1 | Fixed | Copper Alloy | |||
E-Switch | 30 mm | PC Pin | 30 ° | Panel Mount Through Hole | 6 | Non-Shorting (BBM) | 14.2 mm | Flatted (6.35mm Dia) | 350 mA | 2 | 125 V | DP6T | Gold | 1 | Fixed | Copper Alloy | |||||

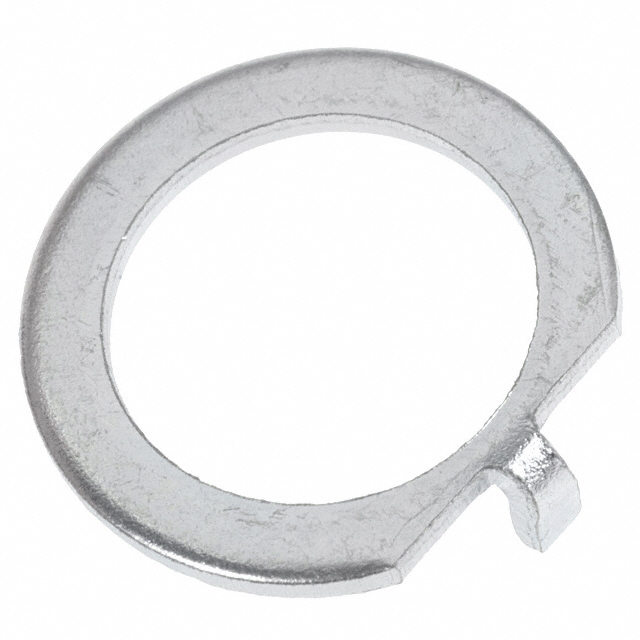

 E-Switch | Locking Ring | KC Series | |||||||||||||||||||
E-Switch | 9.8 mm | 9.5 mm | PC Pin | 30 ° | Panel Mount Through Hole | 12 | Shorting (MBB) | 14.2 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SP12T | Silver | 1 | Fixed | Copper Alloy | ||||
E-Switch | 7 mm | Solder Lug | 30 ° | Panel Mount | 1 | Non-Shorting (BBM) | 20.7 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SPST | Silver | 1 | Fixed | Copper Alloy | |||||
E-Switch | 9.8 mm | Solder Lug | 30 ° | Panel Mount | 5 | Non-Shorting (BBM) | 18.5 mm | Screwdriver Slot | 350 mA | 1 | 125 V | SP5T | Silver | 1 | Fixed | Copper Alloy | Flush | ||||
E-Switch | 9.8 mm | 38 mm | PC Pin | 30 ° | Panel Mount Through Hole | 6 | Non-Shorting (BBM) | 14.2 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SP6T | Silver | 1 | Fixed | Copper Alloy | ||||
 E-Switch | 9.8 mm | 7 mm | Solder Lug | 30 ° | Panel Mount | 7 | Non-Shorting (BBM) | 18.5 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SP7T | Silver | 1 | Fixed | Copper Alloy | ||||
E-Switch | 9.5 mm | PC Pin | 30 ° | Panel Mount Through Hole | 2 | Non-Shorting (BBM) | 14.1 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SPDT | Silver | 1 | Fixed | Copper Alloy | |||||
E-Switch | 9.8 mm | 13 mm | Solder Lug | 30 ° | Panel Mount | 2 | Non-Shorting (BBM) | 18.5 mm | Flatted (6.35mm Dia) | 350 mA | 1 | 125 V | SPDT | Silver | 1 | Fixed | Copper Alloy |
