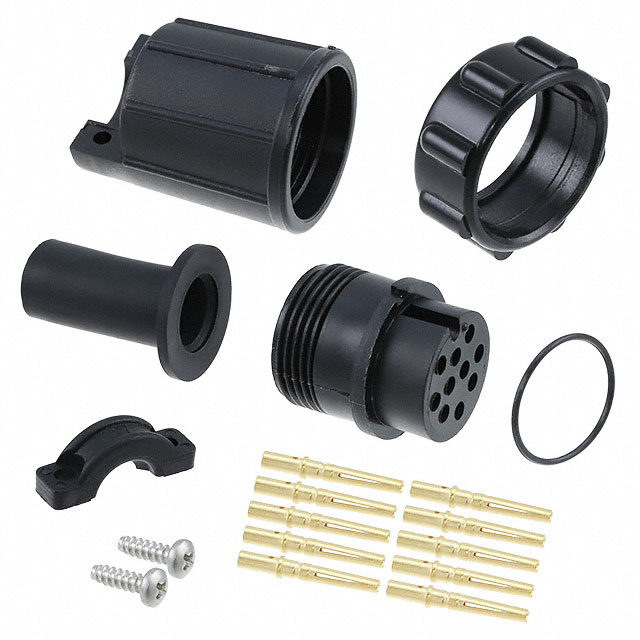

13380-10S Series
Manufacturer: Conxall/Switchcraft
Beta
⌘K
CONN PLUG FMALE 10POS GOLD CRIMP
| Part | Termination | Ingress Protection | Voltage Rating | Backshell Material, Plating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish - Mating | Shielding | Number of Positions | Features | Primary Material | Orientation | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Contact Material | Color | Mounting Type | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Conxall/Switchcraft | Crimp | Weathertight | 600 V | Nylon Polyamide (PA) | Bayonet Lock | -40 °C | 115 °C | Female Sockets Plug | Gold | Unshielded | 10 | Backshell Cable Clamp | Plastic | Keyed | 9.65 mm | 0.31 in 0.38 in | 7.87 mm | Brass | Black | Free Hanging (In-Line) | ||||||||
Conxall/Switchcraft | Crimp | Weathertight | 600 V | Nylon Polyamide (PA) | Bayonet Lock | -40 °C | 115 °C | Female Sockets Plug | Gold | Unshielded | 10 | Backshell Cable Clamp | Plastic | Keyed | Brass | Black | Free Hanging (In-Line) | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in | |||||||
Conxall/Switchcraft | Crimp | Weathertight | 600 V | Nylon Polyamide (PA) | Bayonet Lock | -40 °C | 115 °C | Female Sockets Plug | Gold | Unshielded | 10 | Backshell Cable Clamp | Plastic | Keyed | Brass | Black | Free Hanging (In-Line) | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm |
