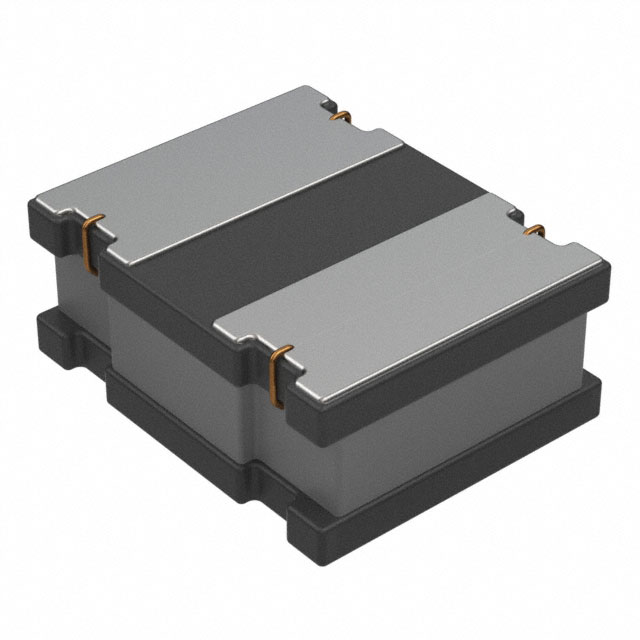

SDET25201T Series

Catalog

FIXED IND 10UH 800MA 609MOHM SMD

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Current - Saturation (Isat)	Supplier Device Package	Inductance	Inductance Frequency - Test	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Mounting Type	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec SDET25201T-100MS	Shielded	-55 C	125 °C	2520 Metric	1008	0.65 A	1008	10 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	800 mA	Surface Mount
Delta Electronics/Cyntec SDET25201T-6R8MS	Shielded	-55 C	125 °C	2520 Metric	1008	770 mA	1008	6.8 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	0.81 A	Surface Mount	485 mOhm
Delta Electronics/Cyntec SDET25201T-3R3MS	Shielded	-55 C	125 °C	2520 Metric	1008	1.17 A	1008	3.3 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	1.2 A	Surface Mount	249 mOhm
Delta Electronics/Cyntec SDET25201T-1R5MS	Shielded	-55 C	125 °C	2520 Metric	1008	1.62 A	1008	1.5 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	1.7 A	Surface Mount	114 mOhm
Delta Electronics/Cyntec SDET25201T-1R0MS	Shielded	-55 C	125 °C	2520 Metric	1008	1.89 A	1008	1 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	1.98 A	Surface Mount	81 mOhm
Delta Electronics/Cyntec SDET25201T-4R7MS	Shielded	-55 C	125 °C	2520 Metric	1008	1.08 A	1008	4.7 ÁH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	1.08 A	Surface Mount	323 mOhm
Delta Electronics/Cyntec SDET25201T-2R2MS	Shielded	-55 C	125 °C	2520 Metric	1008	1.39 A	1008	2.2 µH	1 MHz	20 %	0.039 in	1 mm	2.5 mm	0.079 in	0.098 in	2 mm	1.5 A	Surface Mount	162 mOhm
