8731-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

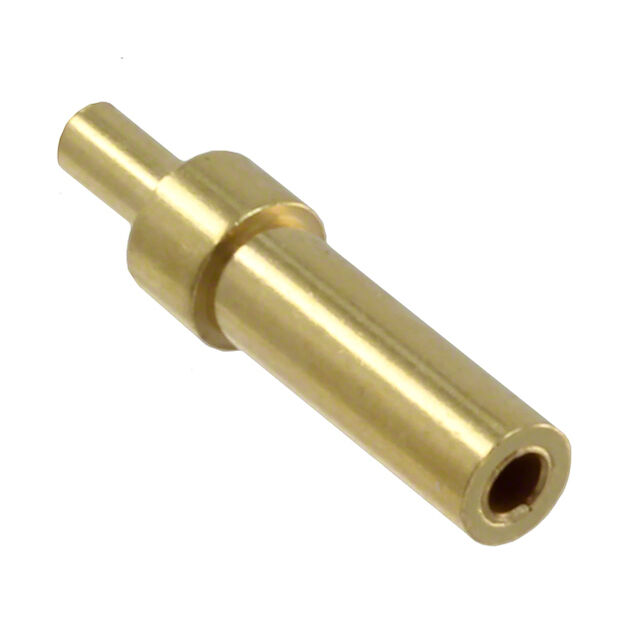

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Tail Type | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.63 mm | 0.064 in | 0.125 in | 3.18 mm | 0.51 in | 12.95 mm | 30 Áin | 0.76 Ám | Crimp | Beryllium Copper | No Tail | Gold | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.28 in | 7.11 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.63 mm | 0.064 in | 0.125 in | 3.18 mm | 0.51 in | 12.95 mm | 30 Áin | 0.76 Ám | Crimp | Beryllium Copper | No Tail | Gold | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.28 in | 7.11 mm |
