DAC8560 Series

16-bit, single-channel, low-power, ultra-low glitch, voltage output DAC with 2.5V,2ppm/°C reference

Catalog

16-bit, single-channel, low-power, ultra-low glitch, voltage output DAC with 2.5V,2ppm/°C reference

Part	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Settling Time	Output Type	Data Interface	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Architecture	Operating Temperature [Min]	Operating Temperature [Max]	Reference Type	INL/DNL (LSB)	Number of Bits	Number of DAC's	Utilized IC / Part	Sampling Rate (Per Second)	DAC Type	Supplied Contents
Texas Instruments DAC8560IADGKT	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16
Texas Instruments DAC8560IADGKR	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16
Texas Instruments DAC8560IBDGKT	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16

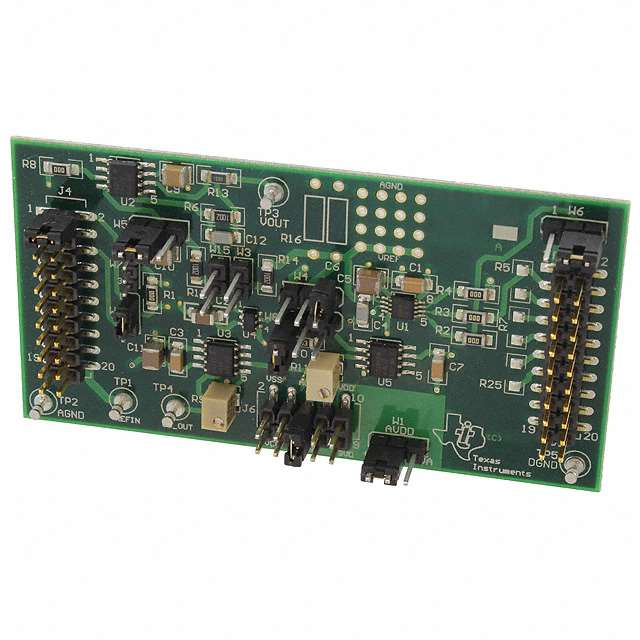

Texas Instruments DAC8560EVM			8 µs		DSP SPI												16	1	DAC8560	225 k	Voltage	Board(s)
Texas Instruments DAC8560IDDGKT	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16
Texas Instruments DAC8560ICDGKT	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16
Texas Instruments DAC8560IDDGKR	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16

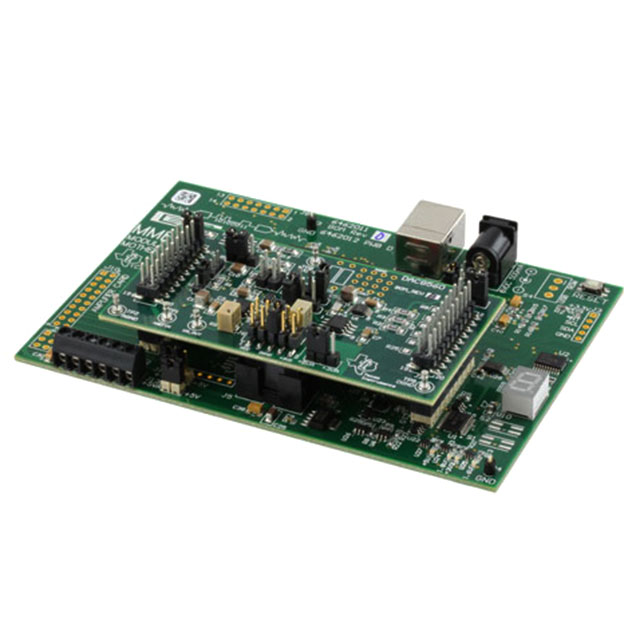

Texas Instruments DAC8560EVM-PDK			8 µs		DSP SPI												16	1	DAC8560	225 k	Voltage	Board(s)
Texas Instruments DAC8560ICDGKR	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16
Texas Instruments DAC8560IBDGKTG4	5.5 V	2.7 V	10 µs	Voltage - Buffered	DSP SPI	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	String DAC	-40 °C	105 ░C	External Internal	0.5 LSB 4 LSB	16

Catalog

16-bit, single-channel, low-power, ultra-low glitch, voltage output DAC with 2.5V,2ppm/°C reference

Key Features

• Relative Accuracy: 4 LSBGlitch Energy: 0.15 nV-sMicroPower Operation: 510 µA at 2.7 VInternal Reference:2.5-V Reference Voltage (Enabled by Default)0.02% Initial Accuracy2-ppm/°C Temperature Drift (Typical)5-ppm/°C Temperature Drift (Maximum)20-mA Sink/Source CapabilityPower-On Reset to ZeroPower Supply: 2.7 V to 5.5 V16-Bit Monotonic Over Temperature RangeSettling Time: 10 µs to ±0.003% FSRLow-Power Serial Interface With Schmitt-Triggered InputsOn-Chip Output Buffer Amplifier With Rail-to-Rail OperationPower-Down CapabilityDrop-In Compatible WithDAC8531/01andDAC8550/51Temperature Range: –40°C to +105°CAvailable in a Tiny 8-Pin VSSOP PackageRelative Accuracy: 4 LSBGlitch Energy: 0.15 nV-sMicroPower Operation: 510 µA at 2.7 VInternal Reference:2.5-V Reference Voltage (Enabled by Default)0.02% Initial Accuracy2-ppm/°C Temperature Drift (Typical)5-ppm/°C Temperature Drift (Maximum)20-mA Sink/Source CapabilityPower-On Reset to ZeroPower Supply: 2.7 V to 5.5 V16-Bit Monotonic Over Temperature RangeSettling Time: 10 µs to ±0.003% FSRLow-Power Serial Interface With Schmitt-Triggered InputsOn-Chip Output Buffer Amplifier With Rail-to-Rail OperationPower-Down CapabilityDrop-In Compatible WithDAC8531/01andDAC8550/51Temperature Range: –40°C to +105°CAvailable in a Tiny 8-Pin VSSOP Package

Description

The DAC8560 is a low-power, voltage output, 16-bit digital-to-analog converter (DAC). The DAC8560 includes a 2.5-V, 2-ppm/°C internal reference (enabled by default), giving a full-scale output voltage range of 0 V to 2.5 V. The internal reference has an initial accuracy of 0.02% and can source up to 20 mA at the VREFpin. The device is monotonic, provides very good linearity, and minimizes undesired code-to-code transient voltages (glitch). The DAC8560 uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz. It is compatible with standard SPI, QSPI, Microwire, and digital-signal-processor (DSP) interfaces. The DAC8560 incorporates a power-on-reset (POR) circuit that ensures the DAC output powers up at zero scale and remains there until a valid code is written to the device. The DAC8560 contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 1.2 µA at 5 V. The low-power consumption, internal reference, and small footprint make this device ideal for portable, battery-operated equipment. The power consumption is 2.6 mW at 5 V, reducing to 6 µW in power-down mode. The DAC8560 is available in an 8-pin VSSOP package. The DAC8560 is a low-power, voltage output, 16-bit digital-to-analog converter (DAC). The DAC8560 includes a 2.5-V, 2-ppm/°C internal reference (enabled by default), giving a full-scale output voltage range of 0 V to 2.5 V. The internal reference has an initial accuracy of 0.02% and can source up to 20 mA at the VREFpin. The device is monotonic, provides very good linearity, and minimizes undesired code-to-code transient voltages (glitch). The DAC8560 uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz. It is compatible with standard SPI, QSPI, Microwire, and digital-signal-processor (DSP) interfaces. The DAC8560 incorporates a power-on-reset (POR) circuit that ensures the DAC output powers up at zero scale and remains there until a valid code is written to the device. The DAC8560 contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 1.2 µA at 5 V. The low-power consumption, internal reference, and small footprint make this device ideal for portable, battery-operated equipment. The power consumption is 2.6 mW at 5 V, reducing to 6 µW in power-down mode. The DAC8560 is available in an 8-pin VSSOP package.
