5680101 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM QUAD GRN/RED/YL RA

Part	Color	Mounting Type	Viewing Angle	Lens Size [diameter]	Lens Style	Wavelength - Peak	Millicandela Rating	Current	Voltage Rating	Configuration	Lens Size	Lens Size	Current [custom]	Current [custom]
DIALIGHT 5680101321F	Green (x 1) Red (x 2) Yellow (x 1)	Through Hole Right Angle	60 °	3 mm	Round with Domed Top	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	20 mA 30 mA 30 mA	2 V 2.1 V 2.1 V	4 High
DIALIGHT 5680101000F	Blank Red	Through Hole Right Angle	60 °	3 mm	Round with Domed Top	635 nm	10 mcd	30 mA	2 V	4 High
DIALIGHT 5680101332F	Green (x 1) Red (x 1) Yellow (x 2)	Through Hole Right Angle	60 °		Round with Domed Top	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	20 mA 30 mA 30 mA	2 V 2.1 V 2.1 V	4 High	3 mm	T-1
DIALIGHT 5680101312F	Green (x 1) Red (x 2) Yellow (x 1)	Through Hole Right Angle	60 °		Round with Domed Top	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	20 mA 30 mA 30 mA	2 V 2.1 V 2.1 V	4 High	3 mm	T-1
DIALIGHT 5680101110F	Blank (x 1) Red (x 3)	Through Hole Right Angle	60 °	3 mm	Round with Domed Top	635 nm	10 mcd	30 mA	2 V	4 High
DIALIGHT 5680101122F	Green (x 2) Red (x 2)	Through Hole Right Angle	60 °	3 mm	Round with Domed Top	565 nm 635 nm	10 mcd 12.6 mcd		2 V 2.1 V	4 High			30 mA	30 mA

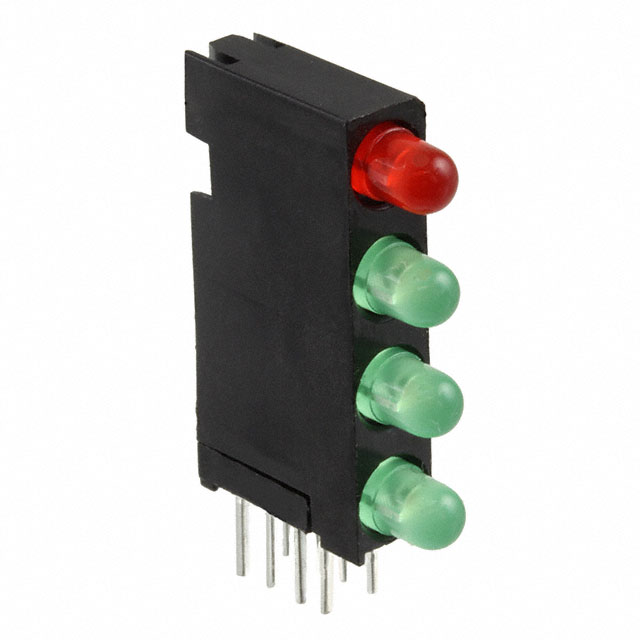

DIALIGHT 5680101222F	Green Red	Through Hole Right Angle	60 °		Round with Domed Top	565 nm 635 nm	10 mcd 12.6 mcd		2 V 2.1 V	4 High	3 mm	T-1
DIALIGHT 5680101132F	Green (x 1) Red (x 2) Yellow (x 1)	Through Hole Right Angle	60 °		Round with Domed Top	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	20 mA 30 mA 30 mA	2 V 2.1 V 2.1 V	4 High	3 mm	T-1
DIALIGHT 5680101023F	Blank (x 1) Green (x 1) Red (x 1) Yellow (x 1)	Through Hole Right Angle	60 °	3 mm	Round with Domed Top	565 nm 585 nm 635 nm	10 mcd 10 mcd 12.6 mcd	20 mA 30 mA 30 mA	2 V 2.1 V 2.1 V	4 High
DIALIGHT 5680101111F	Red (x 4)	Through Hole Right Angle	60 °		Round with Domed Top	635 nm	10 mcd	10 mA	2.1 V	4 High	3 mm	T-1
