AR1335 Series

CMOS Image Sensor, 13 MP, 1/3"

Catalog

CMOS Image Sensor, 13 MP, 1/3"

Part	Pixel Size [y]	Pixel Size [x]	Type	Frames per Second	Active Pixel Array [custom]	Active Pixel Array [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Package / Case	Voltage - Supply
ON Semiconductor AR1335CSSC32SMD20-HW	1.1 µm	1.1 µm	CMOS	30	3120	4208	-30 °C	70 °C	1.9 V	1.7 V

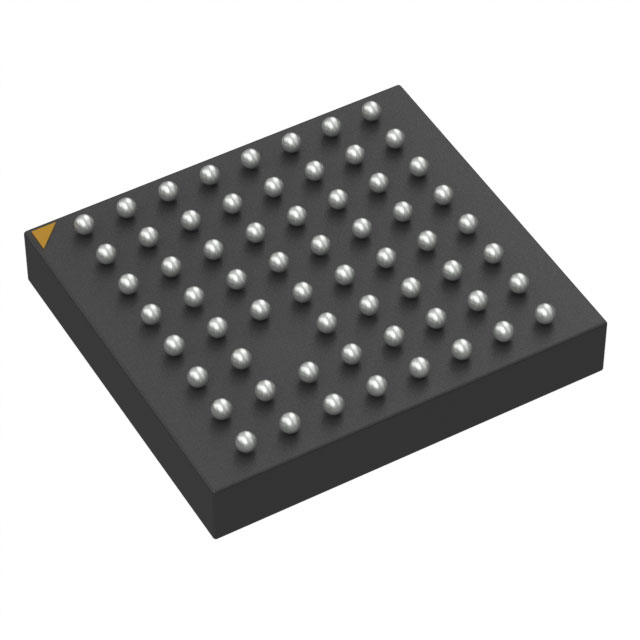

ON Semiconductor AR1335CSSC11SMKA0-CP	1.1 µm	1.1 µm	CMOS	30	3120	4208					63-ODCSP (6.29x5.69)	63-WFBGA CSPBGA	1.8 V 2.8 V
ON Semiconductor AR1335CSSC11SMKA0-CR1											63-ODCSP (6.29x5.69)	63-WFBGA CSPBGA
ON Semiconductor AR1335CSSC11SMKA0-CP1	1.1 µm	1.1 µm	CMOS	30	3120	4208					63-ODCSP (6.29x5.69)	63-WFBGA CSPBGA	1.8 V 2.8 V
ON Semiconductor AR1335CSSC32SMD20											Die	Die
ON Semiconductor AR1335CSSC11SMKA0-CP2	1.1 µm	1.1 µm	CMOS	30	3120	4208					63-ODCSP (6.29x5.69)	63-WFBGA CSPBGA
ON Semiconductor AR1335HSSC11SMAA0-DPBR	1.1 µm	1.1 µm	CMOS	30	3120	4208					48-CLCC (10x10)	48-LCC	1.8 V 2.8 V

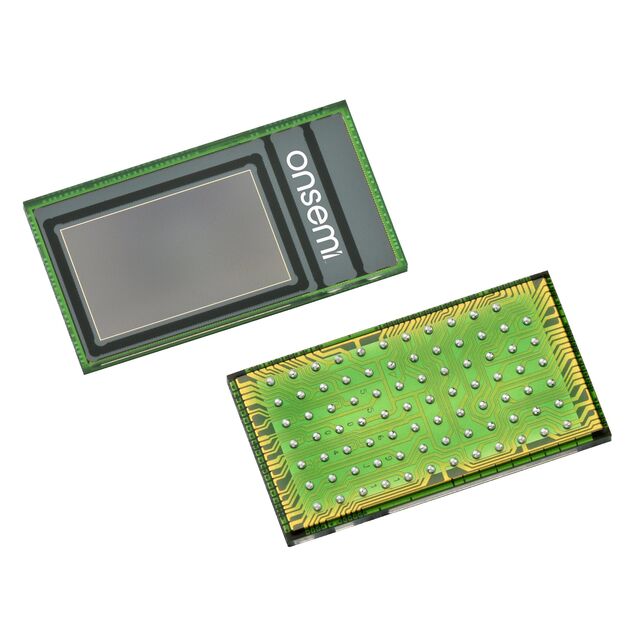

ON Semiconductor AR1335CSSM11SMKA0-CP	1.1 µm	1.1 µm	CMOS	30	3120	4208					63-ODCSP (6.29x5.69)	63-WFBGA CSPBGA

Catalog

CMOS Image Sensor, 13 MP, 1/3"

Key Features

• 13MP CMOS sensor with advanced 1.1µm pixel BSI technology

• Data interfaces: 2,3 and 4 lane MIPI

• Bit-depth compression available for MIPI: 10-8 and 10-6 to lower bandwidth

• 3D synchronization controls to enable stereo video capture

• 6.8 kbits one time programmable memory (OTPM)

• Programmable controls: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate, exposure, left-right and top-bottom image reversal, window size, and panning

• Two on-die phase-locked loop (PLL) oscillators for super low noise performance

• On-chip temperature sensor

• Bayer pattern horizontal down-size scaler

• Simple two-wire fast-mode+ serial interface

• Low dark current

• Interlaced multi-exposure readout enabling High Dynamic Range (HDR) still and video applications

• ON-chip lens shading correction

• Support for external mechanical shutter

• Support for external LED or Xenon Flash

• Extended Flash duration up to start of frame readout

• Die or CSP Package

• Mono or Color variations

Description

The AR1335 is a 1/3.2-inch CMOS active-pixel digital image sensor with a pixel array of 4208H x 3120V. The AR1335 digital image sensor, features breakthrough 1.1µm pixel technology that delivers superior low-light image quality through leading sensitivity, quantum efficiency and linear full well. This allows image quality that rivals digital still cameras. With a sensor architecture focused on low power and a high Chief Ray Angle (CRA) for low Z-heights, the AR1335 is ideal for smartphone and other mobile device applications. It incorporates sophisticated on-chip camera functions such as windowing, mirroring, column and row skip modes, and snapshot mode. It is programmable through a simple two-wire serial interface. The AR1335 sensor can generate full resolution image at up to 30 frames per second (fps) and supports advanced video modes including 4K 30fps, 1080P 60fps and 720P 120fps.
