430111 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 6CIRC 0.438"
| Part | Mounting Type | Operating Temperature | Material Flammability Rating | Material - Insulation | Bottom Termination | Number of Rows | Pitch [x] | Pitch [x] | Number of Circuits | Terminal Block Type | Barrier Type | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Number of Wire Entries | Current Rating (Amps) | Features | Top Termination | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

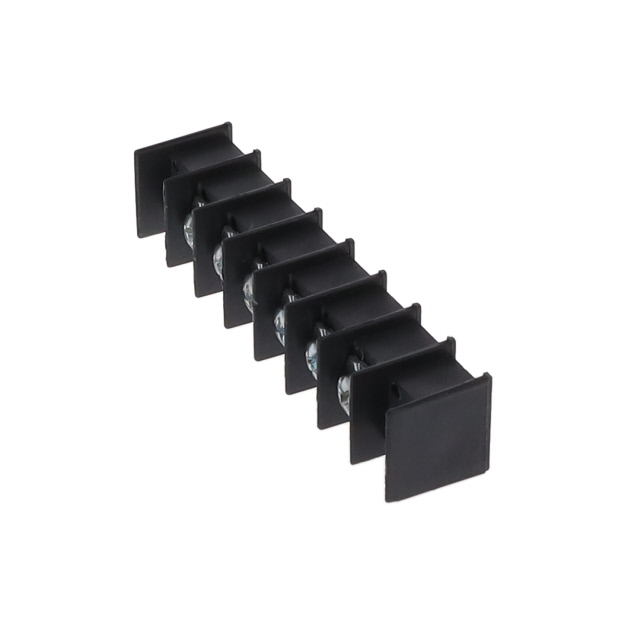

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 6 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 6 | 20 A | Flange | Screws | ||
 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 1 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 1 | 20 A | Flange | Screws | ||||

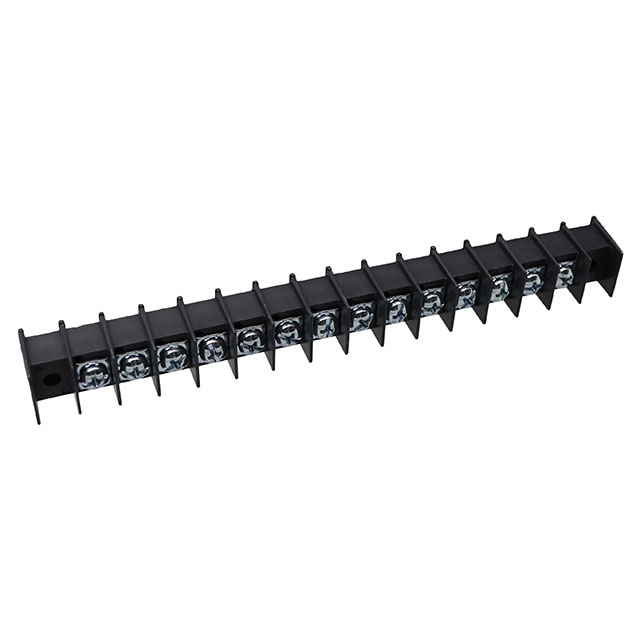

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 14 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 14 | 20 A | Flange | Screws | ||

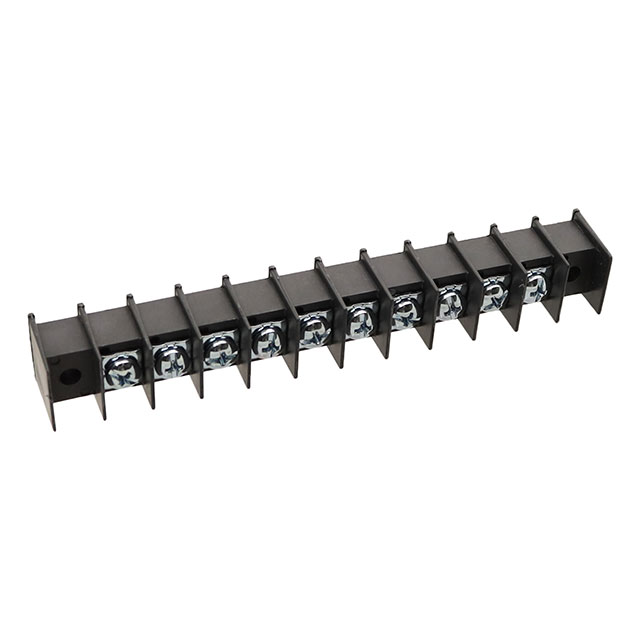

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 10 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 10 | 20 A | Flange | Screws | ||
Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 18 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 18 | 20 A | Flange | Screws | ||

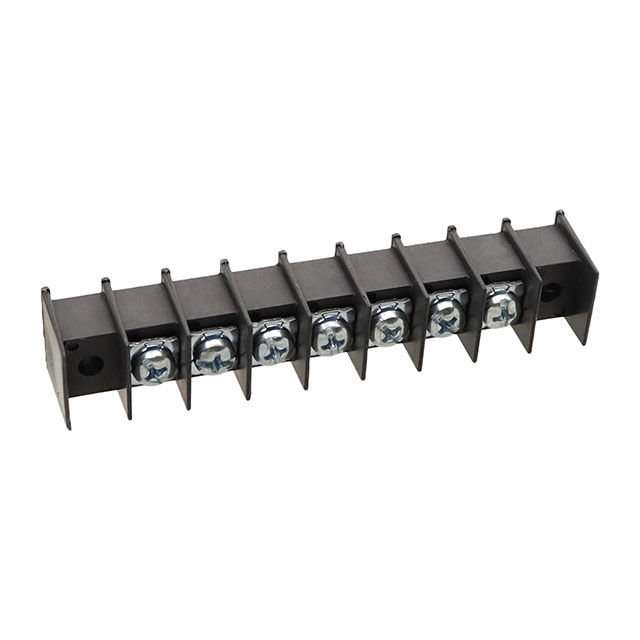

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 7 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 20 A | Flange | Screws | 7 | ||

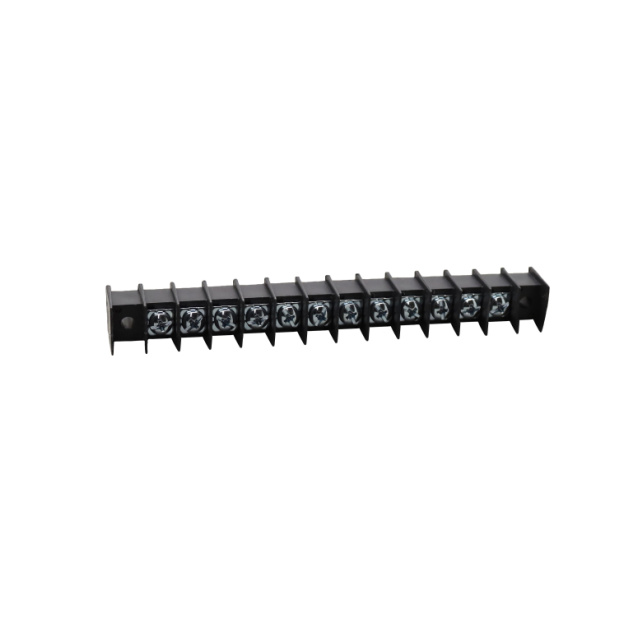

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 12 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 12 | 20 A | Flange | Screws | ||

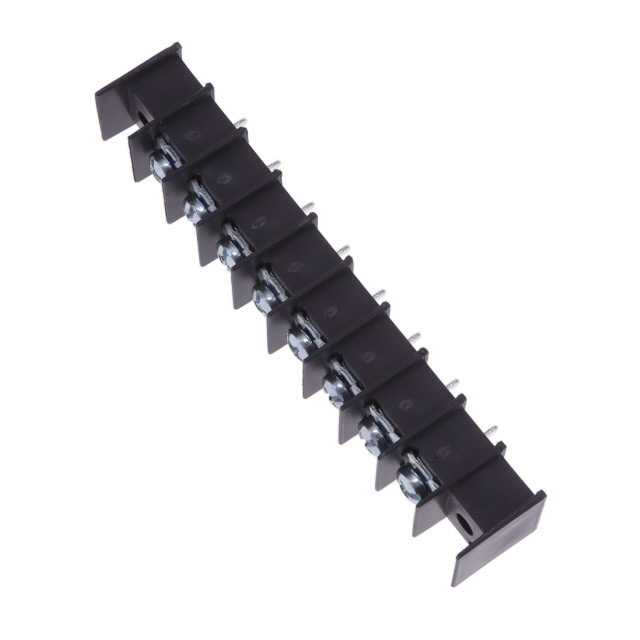

 Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 8 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 8 | 20 A | Flange | Screws | ||
Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | 15 | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 15 | 20 A | Flange | Screws | ||
Curtis Industries | Chassis Panel Through Hole | 105 C | UL94 V-0 | Polypropylene (PP) | PC Pin | 1 | 0.438 in | 11.12 mm | Barrier Block | 2 Wall (Dual) | 600 V | 22 AWG | 12 AWG | 23 | 20 A | Flange | Screws | 23 |
