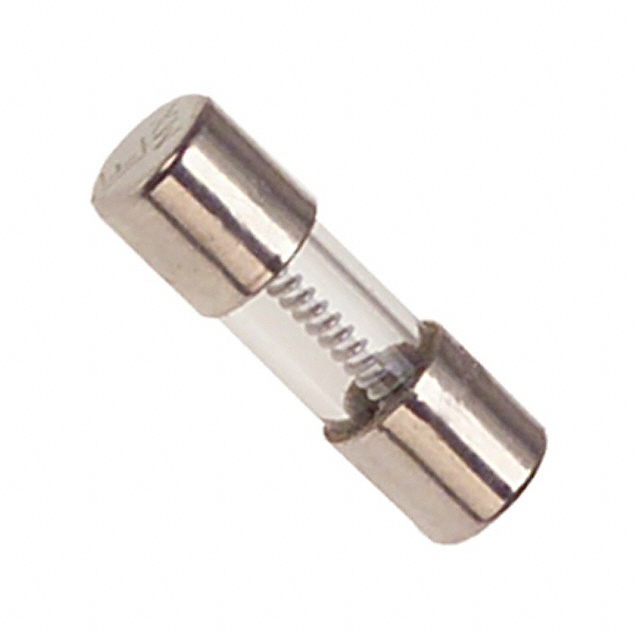

0229005 Series

FUSE 125V SB IND 2AG Pb-FREE 5A

Catalog

FUSE 125V SB IND 2AG Pb-FREE 5A

Part	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time	Voltage Rating - AC	Current Rating (Amps)	Fuse Type	Mounting Type	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Package / Case [x]	Package / Case	Package / Case [y]	DC Cold Resistance
LITTELFUSE 0229005.HXP	CE CSA PSE UL	400 A	Slow Blow	125 V	5 A	Cartridge Glass	Requires Holder	267	-55 C	125 °C	125 VDC	5 mm	2AG	15 mm
LITTELFUSE 0229005.HXSP	CE CSA PSE UL	400 A	Slow Blow	125 V	5 A	Cartridge Glass	Requires Holder	267	-55 C	125 °C	125 VDC	5 mm	2AG	15 mm
LITTELFUSE 0229005.MXP	CE CSA PSE UL	400 A	Slow Blow	125 V	5 A	Cartridge Glass	Requires Holder	267	-55 C	125 °C	125 VDC	5 mm	2AG	15 mm
LITTELFUSE 0229005.MXSP	CE CSA PSE UL	400 A	Slow Blow	125 V	5 A	Cartridge Glass	Requires Holder	267	-55 C	125 °C	125 VDC	5 mm	2AG	15 mm	0.0186 Ohms
LITTELFUSE 0229005.VXP	CE CSA PSE UL	400 A	Slow Blow	125 V	5 A	Cartridge Glass	Requires Holder	267	-55 C	125 °C	125 VDC	5 mm	2AG	15 mm

Catalog

FUSE 125V SB IND 2AG Pb-FREE 5A

Description

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
