TZB4R500 Series

Catalog

CAP TRIMMER 7-50PF 50V SMD

Part	Capacitance Range [Max]	Capacitance Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Q @ Freq	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Adjustment Type	Mounting Type	Dielectric Material
Murata Power Solutions Inc. TZB4R500AB10B00	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic
Murata Power Solutions Inc. TZB4R500AB10R00	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic

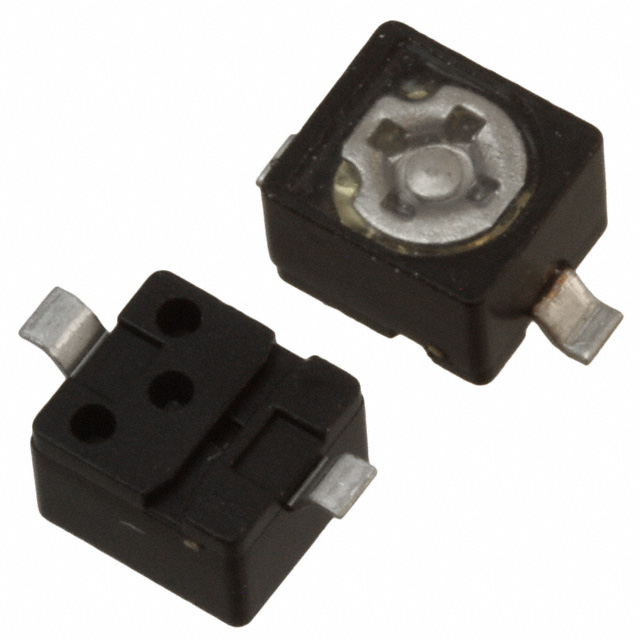

Murata Power Solutions Inc. TZB4R500BB10R00	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic
Murata Power Solutions Inc. TZB4R500AB10R01	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic
Murata Power Solutions Inc. TZB4R500AA10R01	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic
Murata Power Solutions Inc. TZB4R500BA10R01	50 pF	7 pF	3.2 mm	0.126 in	50 VDC	1 MHz 300	4.5 mm	0.177 in	4 mm	0.157 in	General Purpose	-25 °C	85 °C	Top	Surface Mount	Ceramic
