D38999/24JG Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT FMALE 39POS GOLD CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Material	Qualification	Voltage Rating	Voltage Rating	Contact Finish - Mating	Shielding	Shell Material	Color	Orientation	Fastening Type	Mounting Type	Applications	Mounting Feature	Primary Material	Shell Size, MIL	Ingress Protection	Termination	Grade	Number of Positions	Insert Material	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
TE Connectivity AMP Connectors D38999/24JG39SB	-65 ░C	175 °C	Receptacle Female Sockets	39	21	Copper Alloy	MIL-DTL-38999 Series III	600 VAC	850 VDC	Gold	Shielded	Composite	Olive Drab	B	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	39	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/24JG41SD	-65 ░C	175 °C	Receptacle Female Sockets	41	21	Copper Alloy	MIL-DTL-38999 Series III	600 VAC	850 VDC	Gold	Shielded	Composite	Olive Drab	D	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	41	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/24JG39SE	-65 ░C	175 °C	Receptacle Female Sockets	39	21	Copper Alloy	MIL-DTL-38999 Series III	600 VAC	850 VDC	Gold	Shielded	Composite	Olive Drab	E	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	39	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/24JG11SC	-65 ░C	175 °C	Receptacle Female Sockets			Copper Alloy	MIL-DTL-38999 Series III	600 VAC	850 VDC	Gold	Shielded	Composite	Olive Drab	C	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	11	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm	21-11
TE Connectivity AMP Connectors D38999/24JG39SN	-65 ░C	175 °C	Receptacle Female Sockets	39	21	Copper Alloy	MIL-DTL-38999 Series III	600 VAC	850 VDC	Gold	Shielded	Composite	Olive Drab	N (Normal)	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	39	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm

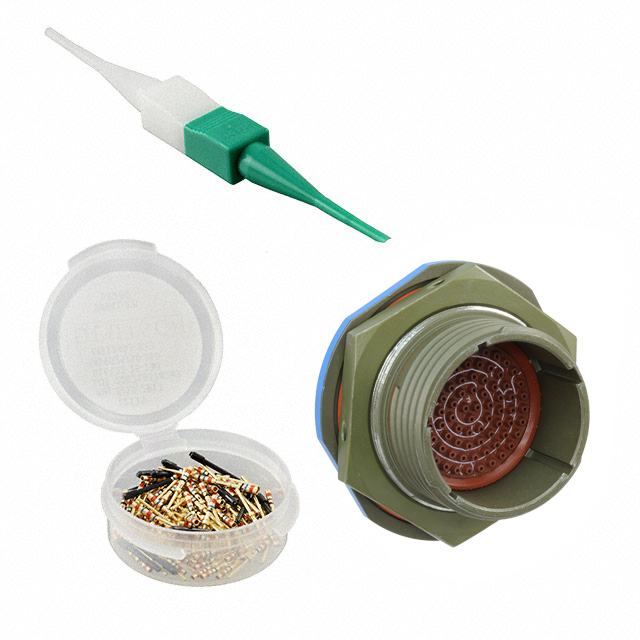

TE Connectivity AMP Connectors D38999/24JG35PN	-65 ░C	175 °C	Receptacle Male Pins			Copper Alloy	MIL-DTL-38999 Series III	400 VAC 550 VDC		Gold		Composite	Olive Drab	N (Normal)	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	79	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm		21	35
TE Connectivity AMP Connectors D38999/24JG35HN	-65 ░C	175 °C	Receptacle Male Pins			Copper Alloy	MIL-DTL-38999 Series III	400 VAC 550 VDC		Gold	Shielded	Composite	Olive Drab	N (Normal)	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	79	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm		21	35
TE Connectivity AMP Connectors D38999/24JG35JN	-65 ░C	175 °C	Receptacle Female Sockets			Copper Alloy	MIL-DTL-38999 Series III	400 VAC 550 VDC		Gold	Shielded	Composite	Olive Drab	N (Normal)	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	79	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm		21	35
TE Connectivity AMP Connectors D38999/24JG35HE	-65 ░C	175 °C	Receptacle Male Pins			Copper Alloy	MIL-DTL-38999 Series III	400 VAC 550 VDC		Gold	Shielded	Composite	Olive Drab	E	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	79	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm		21	35
TE Connectivity AMP Connectors D38999/24JG16SN	-65 ░C	175 °C	Receptacle Female Sockets			Copper Alloy	MIL-DTL-38999 Series III	750 Vrms 1050 VDC		Gold	Shielded	Composite	Olive Drab	N (Normal)	Threaded	Panel Mount	Aerospace Military	Bulkhead - Front Side Nut	Composite	G	Environment Resistant	Crimp	Military	16	Thermoplastic	Olive Drab Cadmium	50 µin	1.27 µm	21-16
