HSD-04D Series
Manufacturer: Adam Tech
Beta
⌘K
CONN FAKRA HIGH SPEED DATA 4POS
| Part | Body Material | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Features | Center Contact Material | Mounting Type | Impedance | Connector Style | Fastening Type | Shield Termination | Frequency - Max [Max] | Number of Ports | Connector Type | Housing Color | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

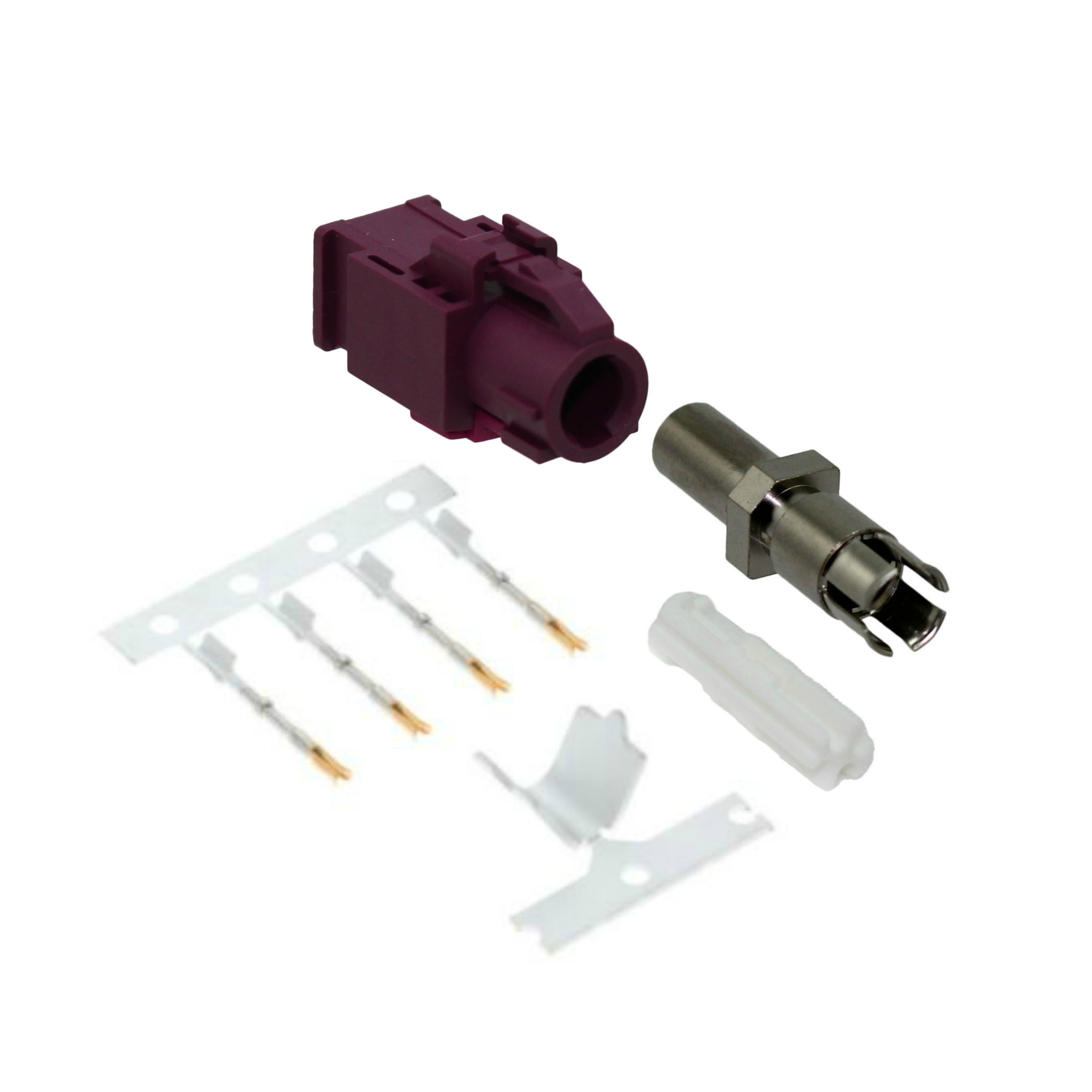

 Adam Tech | Brass | 25 | Polybutylene Terephthalate (PBT) | Gold | -40 C | 105 ░C | Solder | Code D | Phosphor Bronze | Free Hanging (In-Line) | 100 Ohms | Fakra HSD® Quadraxial | Latch Lock | Crimp | 2 GHz | 1 | Female Socket Jack | Bordeaux | |

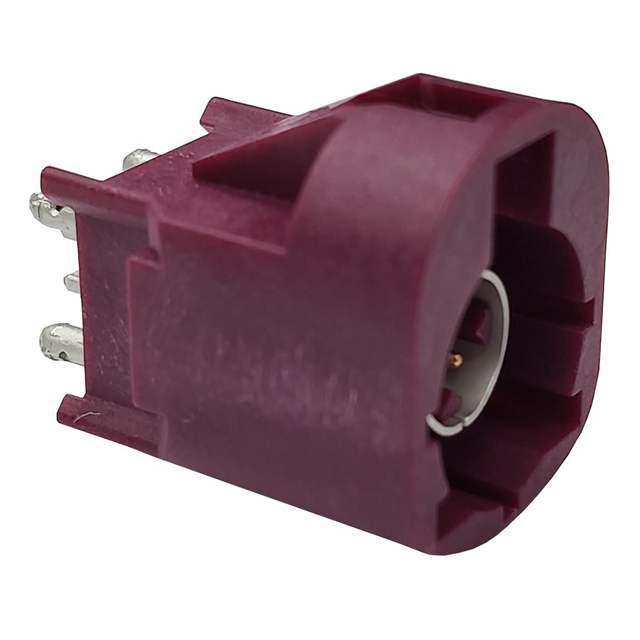

 Adam Tech | Brass | 25 | Polyamide (PA) Nylon | Gold | -40 C | 105 ░C | Solder | Code D | Brass | Through Hole | 100 Ohms | Fakra HSD® Quadraxial | Latch Lock | Solder | 2 GHz | 1 | Plug Male Pin | Bordeaux | |

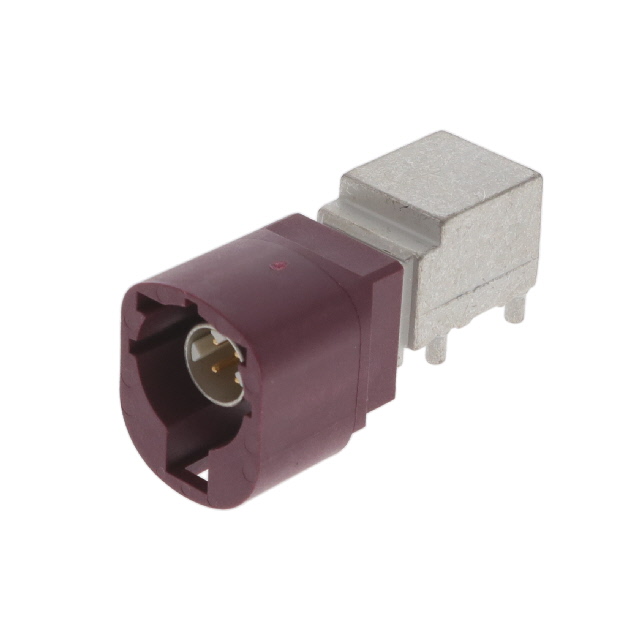

 Adam Tech | Zinc Alloy | 25 | Polyamide (PA) Nylon | Gold | -40 C | 105 ░C | Solder | Code D | Brass | Right Angle Through Hole | 100 Ohms | Fakra HSD® Quadraxial | Latch Lock | Solder | 2 GHz | 1 | Plug Male Pin | Bordeaux | Tin |

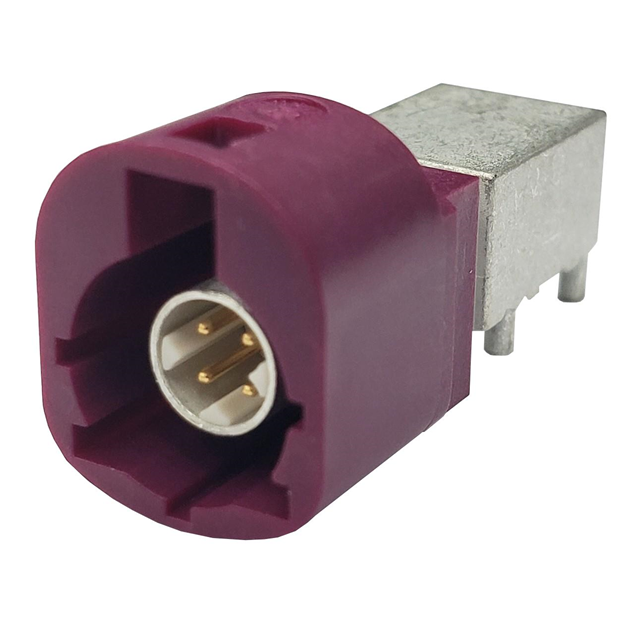

 Adam Tech | Zinc Alloy | 25 | Polyamide (PA) Nylon | Gold | -40 C | 105 ░C | Solder | Code D | Brass | Right Angle Through Hole | 100 Ohms | Fakra HSD® Quadraxial | Latch Lock | Solder | 2 GHz | 1 | Plug Male Pin | Bordeaux | Tin |
