LZP-00 Series

Catalog

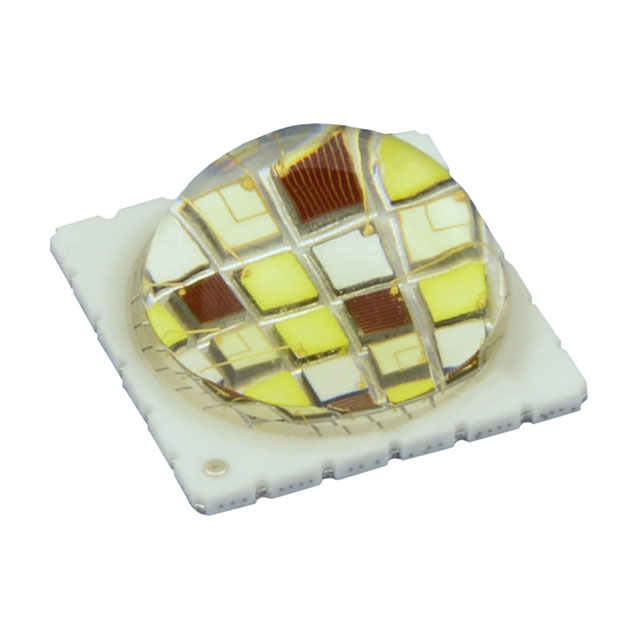

LED MOD LUXIGEN RGBW SQUARE

Part	Wavelength	Type	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Lens Type	Size / Dimension [x]	Size / Dimension [y]	Configuration	Height [z]	Temperature - Test	Viewing Angle	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Color	Thermal Resistance of Package	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CCT (K)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Supplier Device Package	Package / Case	Current - Test	Current - Test [custom]	Current - Max	Height - Seated (Max)	Orientation	Wavelength [Max]	Wavelength [Min]	Operating Temperature	Current - DC Forward (If) (Max) [Max]
ams-OSRAM USA INC. LZP-00MN00-0000	457 nm 523 nm 623 nm	LED Module	75	10.5 mm	24.1 V	14.5 V	20.9 V	17.8 V	1550 lm	230 lm	765 lm	920 lm	Domed	12 mm	12 mm	Square	6.13 mm	25 °C	125 °	1 A	1 A	1 A	1 A	18 lm/W	92 lm/W	75 lm/W	63 lm/W	Blue Green Red White
ams-OSRAM USA INC. LZP-00CW00-0055			75											0.472 in	0.472 "				110 °									Cool White	0.6 °C/W	12 mm	12 mm	Surface Mount	1.2 A	6.6 mm	0.26 in	5500 K	4600 lm	3500 lm	21 V	69 lm/W	SMD	24-SMD No Lead Exposed Pad	700 mA	4
ams-OSRAM USA INC. LZP-00MD00-0000	457 nm 525 nm 624 nm 6335 K								1605 lm	221 lm	770 lm	925 lm		0.276 "	0.276 in			25 °C	125 °					16 lm/W	102 lm/W	73 lm/W	61 lm/W	Blue Green Red White	0.5 °C/W	7 mm	7 mm	Surface Mount			0.173 in				15 V 19.2 V 21.6 V 22.4 V		SMD	2828 (7070 Metric)			1A Blue 1A Green 1A Red 1A White	4.4 mm
ams-OSRAM USA INC. LZP-00UB00-00U4		Ultraviolet (UV)																	130 °													Surface Mount										24-SMD No Lead Exposed Pad					Top View	390 nm	385 nm	130 °C	1 A
ams-OSRAM USA INC. LZP-00UB0R-00U4		Ultraviolet (UV)																	115 °													Surface Mount							20.9 V			24-SMD No Lead Exposed Pad					Top View	390 nm	385 nm	60 °C	600 mA
ams-OSRAM USA INC. LZP-00UB00-00U8	408 nm	Ultraviolet (UV)																	130 °													Surface Mount										24-SMD No Lead Exposed Pad					Top View			130 °C	1 A
ams-OSRAM USA INC. LZP-00UB0R-00U5	393 nm	Ultraviolet (UV)																	115 °													Surface Mount							20.9 V			24-SMD No Lead Exposed Pad					Top View	395 nm	390 nm	60 °C	600 mA
