XZMYK45 Series

Manufacturer: SunLED

Catalog

LED YL CLR 2PLCC SMD BOTTOM ENT

Part	Lens Size [diameter]	Lens Style	Mounting Type	Wavelength - Dominant	Millicandela Rating	Supplier Device Package	Configuration	Lens Color	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Test	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Lens Transparency

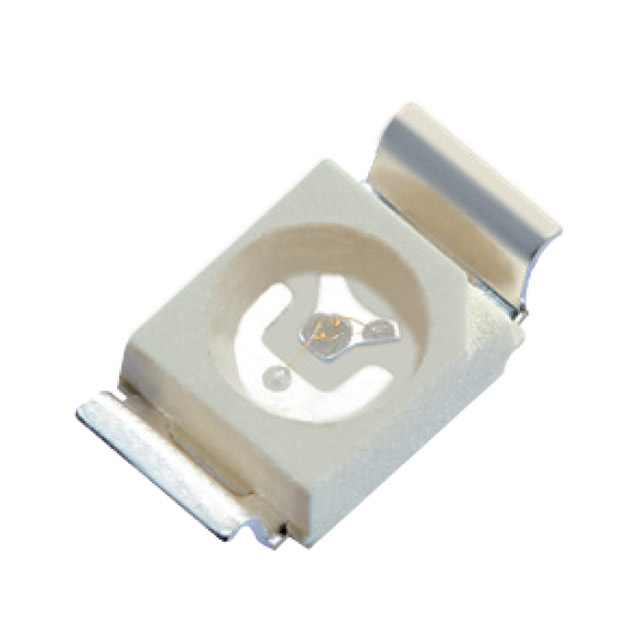

SunLED XZMYK45S-9	2.4 mm Dia	Round with Flat Top	Surface Mount Bottom Entry	590 nm	198 mcd	2-PLCC	Standard	Colorless	2-SMD Z-Bend	Yellow	2 V	120 °	20 mA	590 nm	2.8 mm	3.2 mm	1.9 mm	Clear

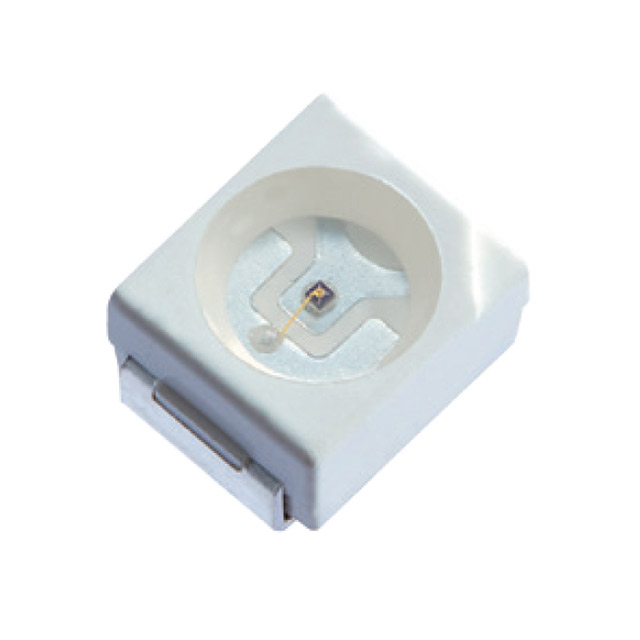

SunLED XZMYK45S	2.4 mm Dia	Round with Flat Top	Surface Mount	590 nm	198 mcd	2-PLCC	Standard	Colorless	2-PLCC	Yellow	2 V	120 °	20 mA	590 nm	2.8 mm	3.2 mm	1.9 mm	Clear
SunLED XZMYK45WT	2.4 mm Dia	Round with Flat Top	Surface Mount	590 nm	248 mcd	2-PLCC	Standard	Colorless	2-PLCC	Yellow	2 V	120 °	20 mA	590 nm	2.8 mm	3.2 mm	2.1 mm	Clear
