BG301 Series
Manufacturer: GCT
Beta
⌘K

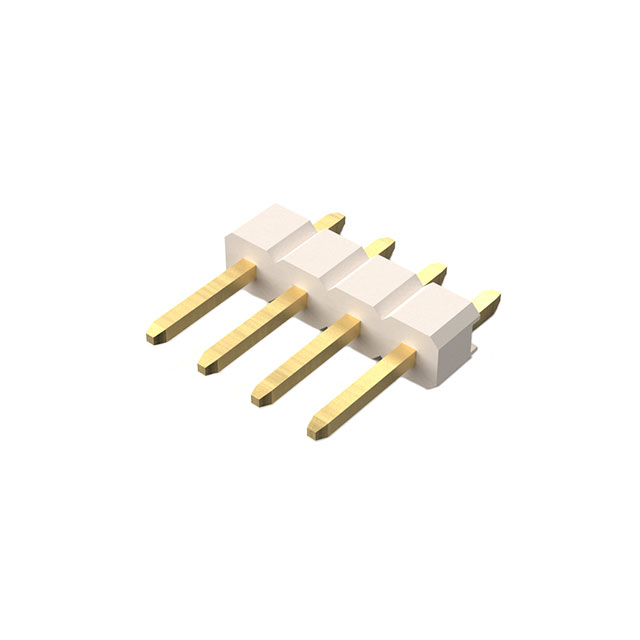

BOARD TO BOARD & MEZZANINE CONNECTORS 4W, 2.54MM PTH HEADER, SIL, SMT, HORIZ, GF, LCP NATURAL, T+R+C
| Part | Contact Finish Thickness - Post | Applications | Insulation Height | Insulation Height | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Shrouding | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Termination | Pitch - Mating | Pitch - Mating | Features | Mounting Type | Number of Rows | Connector Type | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating [x] | Material Flammability Rating | Current Rating (Amps) | Fastening Type | Contact Type | Insulation Color | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Flash | General Purpose | 0.098 " | 2.5 mm | Gold | -40 C | 105 ░C | All | Unshrouded | 4 | Copper Alloy | Flash | Solder | 0.1 " | 2.54 mm | Pick and Place | Right Angle Surface Mount | 1 | Header Cuttable | Gold | 5.4 mm | 0.213 in | UL94 V-0 | 3 A | Push-Pull | Male Pin | Natural | Square |
