ADP-66CR Series
Manufacturer: Delta Electronics
Beta
⌘K

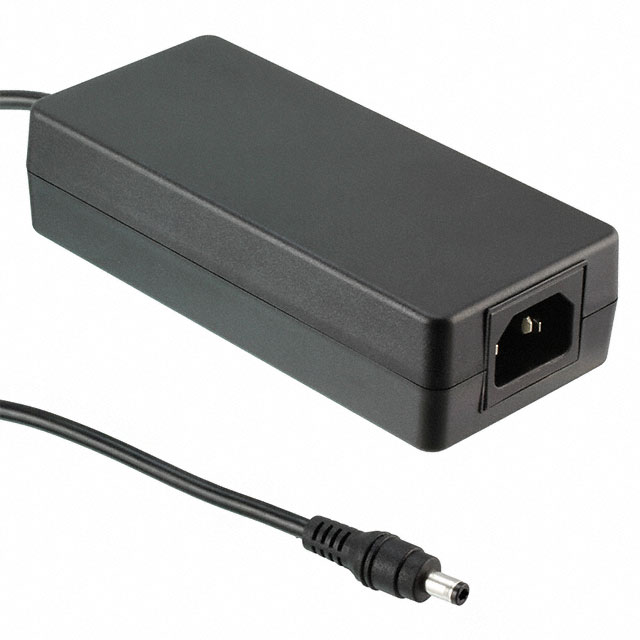

AC/DC DESKTOP ADAPTER 12V 66W
| Part | Input Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Form | Current - Output (Max) [Max] | Output Connector [diameter] | Output Connector [x] | Output Connector | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized | Polarization | Input Connector | Voltage - Output | Power (Watts) | Efficiency | No Load Power Consumption | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Cord (Sold Separately) | 34.1 mm | 1.34 " | 135 mm | 5.31 in | 2.44 " | 62 mm | ITE (Commercial) | Desktop (Class I) | 5.5 A | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 45 °C | -20 ░C | 264 VAC | 90 VAC | International | Positive Center | IEC 320-C14 | 12 V | 66 W | Level VI | 210 mW | 1.5 m | 59 in |
