R14165 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

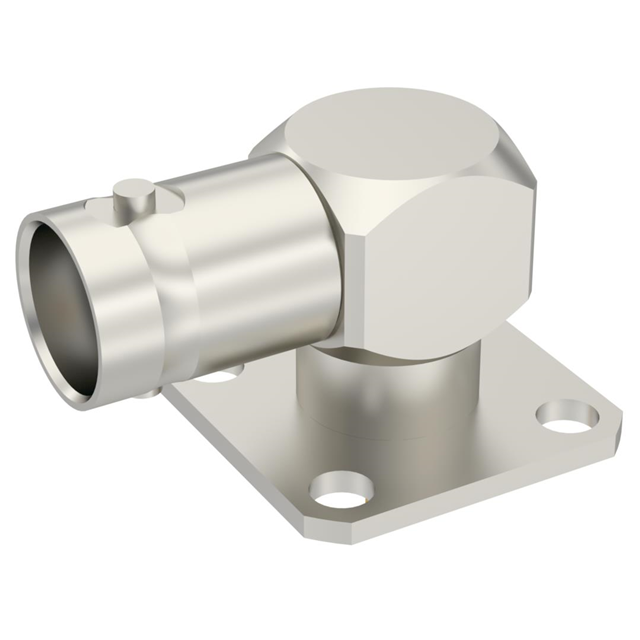

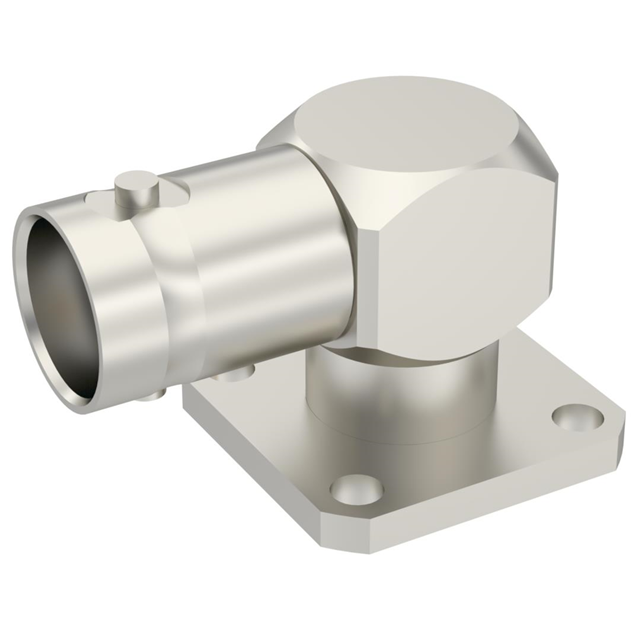

BNC / RIGHT ANGLE JACK RECEPTACL
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Mating Cycles | Voltage Rating | Frequency - Max [Max] | Fastening Type | Mounting Feature | Contact Termination | Connector Type | Impedance | Connector Style | Mounting Type | Center Contact Material | Housing Color | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | 500 | 500 V | 4 GHz | Bayonet Lock | Flange | Solder Cup | Female Socket Jack | 50 Ohms | BNC | Panel Mount Right Angle | Beryllium Copper | Silver | Solder | 1 |
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | 500 | 500 V | 4 GHz | Bayonet Lock | Flange | Solder Cup | Female Socket Jack | 50 Ohms | BNC | Panel Mount Right Angle | Beryllium Copper | Silver | Solder | 1 |
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | 500 | 500 V | 4 GHz | Bayonet Lock | Flange | Solder Cup | Female Socket Jack | 50 Ohms | BNC | Panel Mount Right Angle | Beryllium Copper | Silver | Solder | 1 |
