SRCN1A16 Series

Catalog

CONN RCPT MALE 7 POS

Part	Number of Positions	Shell Material	Contact Material	Connector Type	Orientation	Shell Finish	Applications	Material Flammability Rating	Primary Material	Fastening Type	Features	Current Rating (Amps)	Cable Opening	Cable Opening	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insert Material	Color	Voltage Rating	Backshell Material, Plating	Mounting Type
JAE Electronics SRCN1A16-7P-F531	7	Aluminum Alloy	Copper Alloy	Receptacle Male Pins	N (Normal)	Nickel	Communication Systems Measurement Telecommunications Test Equipment	UL94 V-0	Metal	Threaded

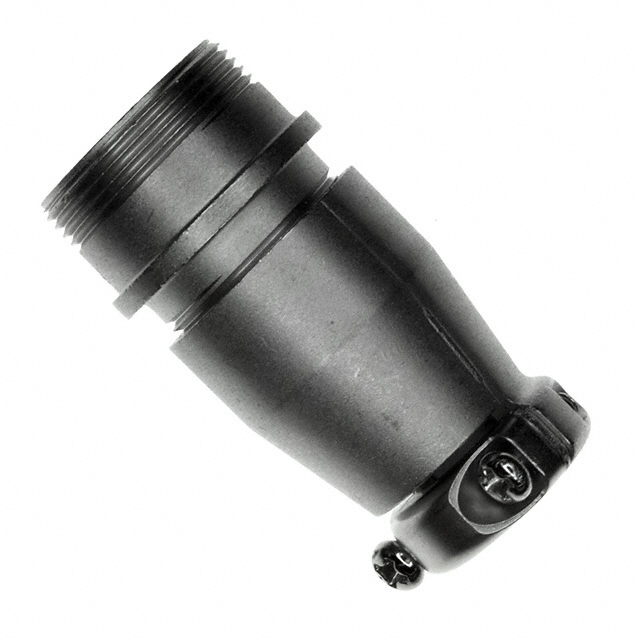

JAE Electronics SRCN1A16-10P	10	Aluminum Alloy	Copper Alloy	Receptacle Male Pins	N (Normal)	Nickel	Communication Systems Measurement Telecommunications Test Equipment	UL94 V-0	Metal	Threaded	Backshell Cable Clamp	5 A	11.51 mm	0.453 in	16-10	85 °C	-25 °C	Silver	Plastic	Silver	250 VAC 350 VDC	Aluminum Alloy Nickel	Free Hanging (In-Line)

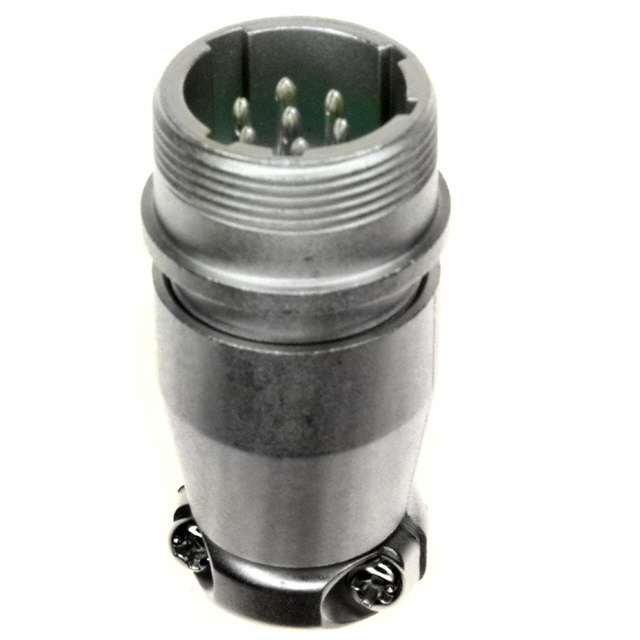

JAE Electronics SRCN1A16-7P	7	Aluminum Alloy	Copper Alloy	Receptacle Male Pins	N (Normal)	Nickel	Communication Systems Measurement Telecommunications Test Equipment	UL94 V-0	Metal	Threaded	Backshell Cable Clamp	10 A	11.51 mm	0.453 in		85 °C	-25 °C	Silver	Plastic	Silver	250 VAC 350 VDC	Aluminum Alloy Nickel	Free Hanging (In-Line)

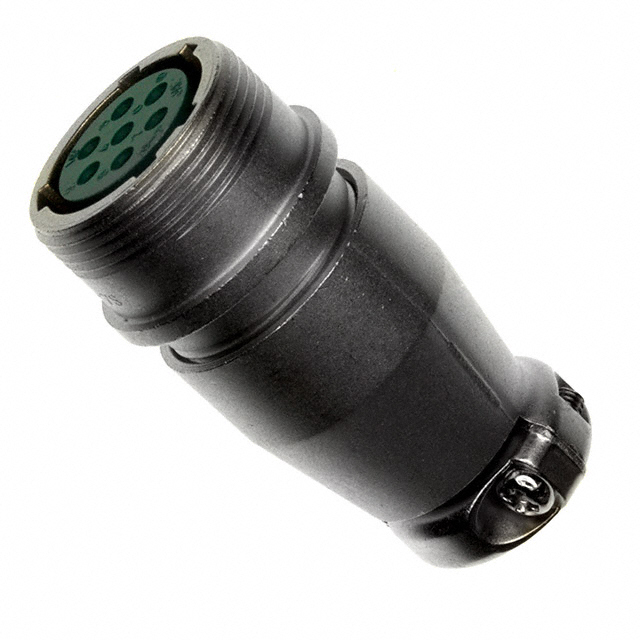

JAE Electronics SRCN1A16-7S	7	Aluminum Alloy	Copper Alloy	Receptacle Female Sockets	N (Normal)	Nickel	Communication Systems Measurement Telecommunications Test Equipment	UL94 V-0	Metal	Threaded	Backshell Cable Clamp	10 A	11.51 mm	0.453 in		85 °C	-25 °C	Silver	Plastic	Silver	250 VAC 350 VDC	Aluminum Alloy Nickel	Free Hanging (In-Line)

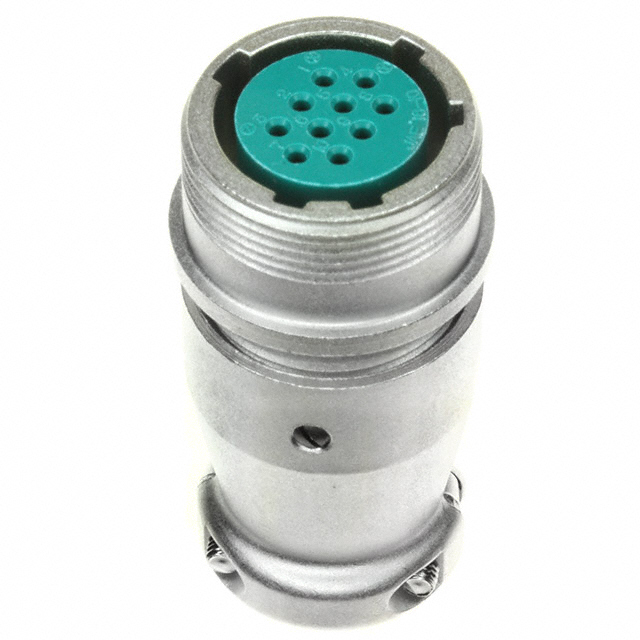

JAE Electronics SRCN1A16-10S	10	Aluminum Alloy	Copper Alloy	Receptacle Female Sockets	N (Normal)	Nickel	Communication Systems Measurement Telecommunications Test Equipment	UL94 V-0	Metal	Threaded	Backshell Cable Clamp	5 A	11.51 mm	0.453 in	16-10	85 °C	-25 °C	Silver	Plastic	Silver	250 VAC 350 VDC	Aluminum Alloy Nickel	Free Hanging (In-Line)
