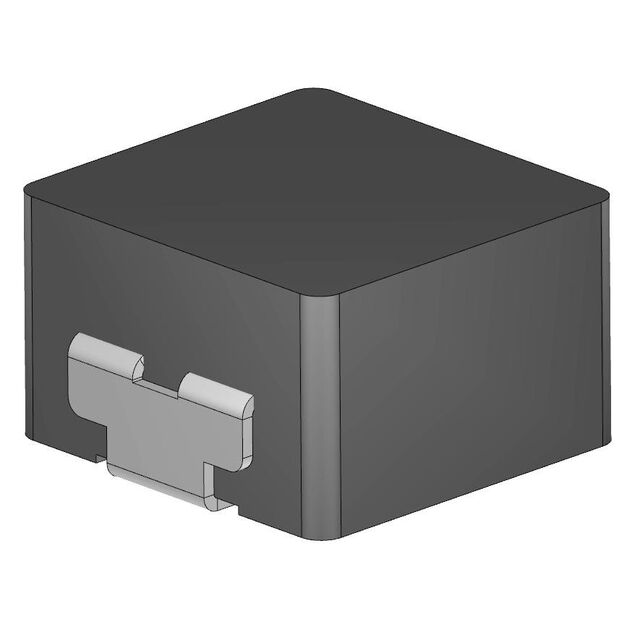

HCB1040 Series

Catalog

FIXED IND 200NH 37A 0.36MOHM SMD

Part	Mounting Type	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Package / Case	Current - Saturation (Isat)	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance
Delta Electronics/Components HCB1040-201	Surface Mount	20 %	4 mm	0.157 in	100 kHz	37 A	Unshielded	Nonstandard	24 A	0.36 mOhm	7 mm	0.402 in	0.276 in	10.2 mm	125 °C	-40 C
Delta Electronics/Components HCB1040-151	Surface Mount	20 %	4 mm	0.157 in	100 kHz	37 A	Unshielded	Nonstandard		0.36 mOhm	7 mm	0.402 in	0.276 in	10.2 mm	125 °C	-40 C	150 nH
Delta Electronics/Components HCB1040-101	Surface Mount	20 %	4 mm	0.157 in	100 kHz	37 A	Unshielded	Nonstandard	54 A	0.36 mOhm	7 mm	0.402 in	0.276 in	10.2 mm	125 °C	-40 C	100 nH
Delta Electronics/Components HCB1040-221	Surface Mount	20 %	4 mm	0.157 in	100 kHz	37 A	Unshielded	Nonstandard	22 A	0.36 mOhm	7 mm	0.402 in	0.276 in	10.2 mm	125 °C	-40 C	220 nH
