892-048 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 48POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Gender	Contact Finish	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Type	Termination	Color	Mounting Type	Pitch	Pitch	Card Type	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Termination Rows
EDAC Inc. 892-048-559-207	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual
EDAC Inc. 892-048-520-202	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	Flush Mount Top Opening Unthreaded	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	3.25 mm	0.128 "
EDAC Inc. 892-048-521-202	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	Flush Mount Top Opening Unthreaded	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	3.25 mm	0.128 "
EDAC Inc. 892-048-521-108	Polyphenylene Sulfide (PPS)		125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening	48	0.25 Ám	10 Áin		Female	Gold	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge	Single			1	1
EDAC Inc. 892-048-523-103	Polyphenylene Sulfide (PPS)		125 °C	-40 C	Floating Bobbin Flush Mount	48	0.25 Ám	10 Áin		Female	Gold	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge	Single	2.95 mm	0.116 "	1	1
EDAC Inc. 892-048-520-204	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	Flush Mount Top Opening Unthreaded	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	3.96 mm	0.156 "
EDAC Inc. 892-048-500-101	Polyphenylene Sulfide (PPS)		125 °C	-40 C		48	0.25 Ám	10 Áin		Female	Gold	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder Eyelet(s)	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge	Single			1	1

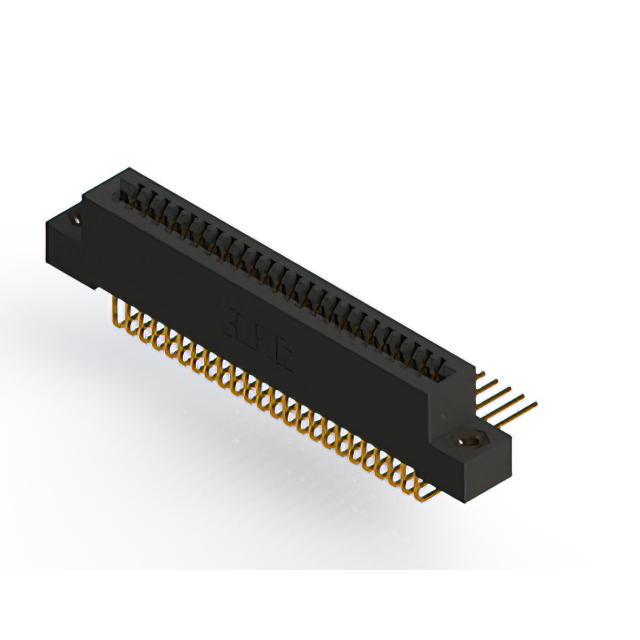

EDAC Inc. 892-048-558-208	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual
EDAC Inc. 892-048-521-207	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening	48	0.25 Ám	10 Áin	2	Female	Gold	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Solder	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual
EDAC Inc. 892-048-540-102	Polyphenylene Sulfide (PPS)		125 °C	-40 C	Flush Mount Top Opening Unthreaded	48	0.25 Ám	10 Áin		Female	Gold	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Wire Wrap	Black	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge	Single	3.25 mm	0.128 "	1	1
