140-515 Series
Manufacturer: EDAC Inc.
Beta
⌘K
2.0MM PITCH CONNECTOR WITH 15 SU
| Part | Contact Finish - Post | Insulation Color | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Shrouding | Contact Type | Contact Shape | Fastening Type | Number of Positions | Style | Connector Type | Pitch - Mating | Pitch - Mating | Termination | Contact Material | Number of Rows | Insulation Height | Insulation Height | Current Rating (Amps) | Material Flammability Rating | Voltage Rating | Features | Mounting Type | Note | Pitch [x] | Pitch [x] | Contact Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

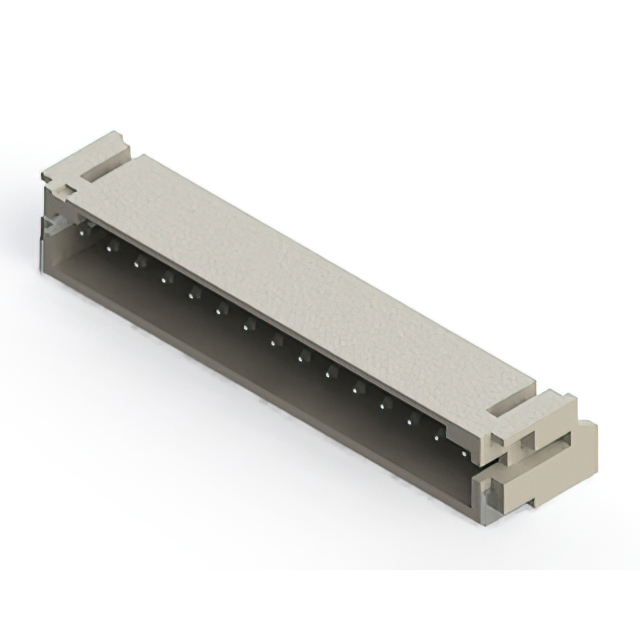

 EDAC Inc. | Tin | Natural | Nylon 9T Polyamide (PA9T) | 85 °C | -25 °C | All | Shrouded - 4 Wall | Male Pin | Square | Detent Lock | 15 | Board to Cable/Wire | Header | 0.079 " | 2 mm | Solder | Brass | 1 | 0.217 in | 5.51 mm | 2 A | UL94 V-0 | 100 VAC | Solder Retention | Right Angle Surface Mount | |||||

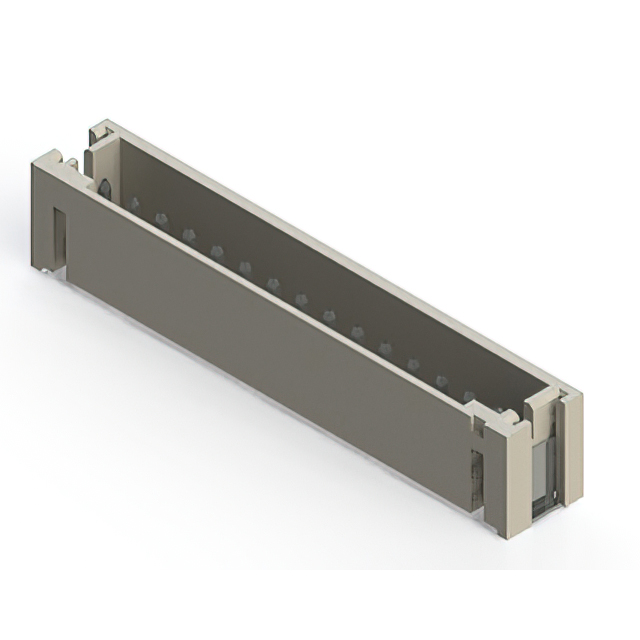

 EDAC Inc. | Tin | Natural | Liquid Crystal Polymer (LCP) | 105 ░C | -40 C | All | Shrouded - 4 Wall | Male Pin | Square | Detent Lock | 15 | Board to Cable/Wire | Header | 0.079 " | 2 mm | Solder | Brass | 1 | 0.217 in | 5.51 mm | 2 A | UL94 V-0 | 100 VAC | Solder Retention | Surface Mount | |||||

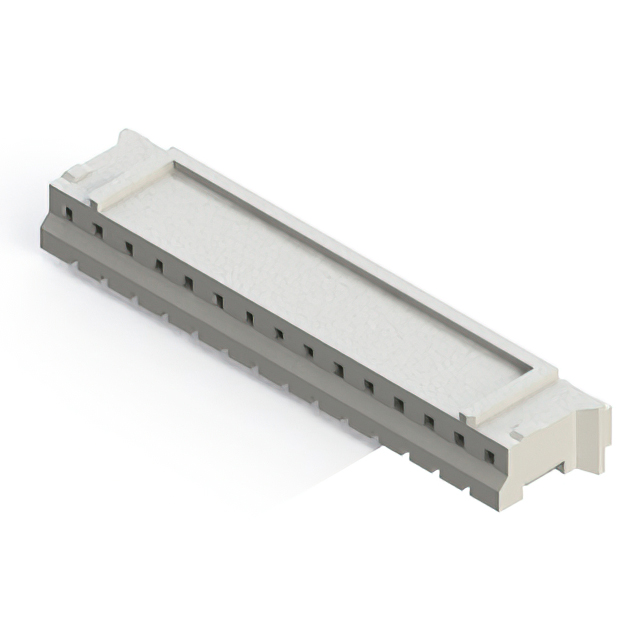

 EDAC Inc. | Nylon 6/6 Polyamide (PA66) | 85 °C | -25 °C | Female Socket | Detent Lock | 15 | Receptacle | 1 | Polarizing Key | Free Hanging (In-Line) | Contacts Not Included | 0.079 in | 2 mm | Crimp | Natural |
