1658013 Series

Catalog

CONN PLUG 40POS SMD GOLD

Part	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Mated Stacking Heights
TE Connectivity Raychem Cable Protection 6-1658013-1	2	40	Gold	10 Áin	0.25 Ám	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in

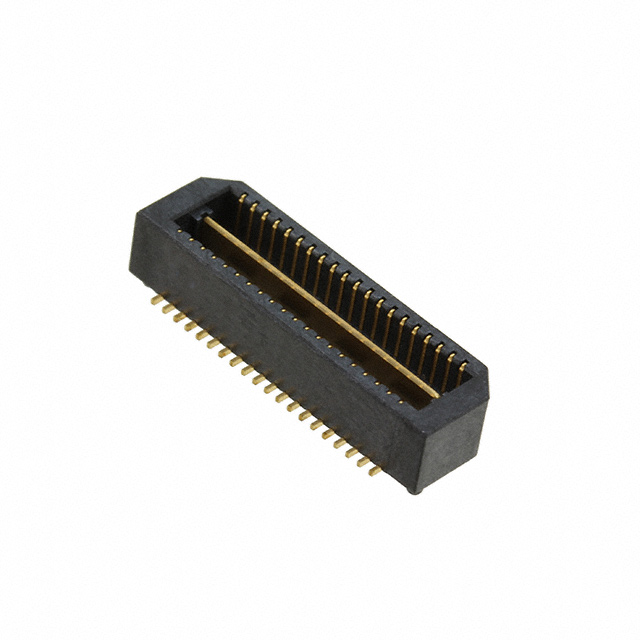

TE Connectivity Raychem Cable Protection 1658013-1	2	40	Gold	10 Áin	0.25 Ám	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in

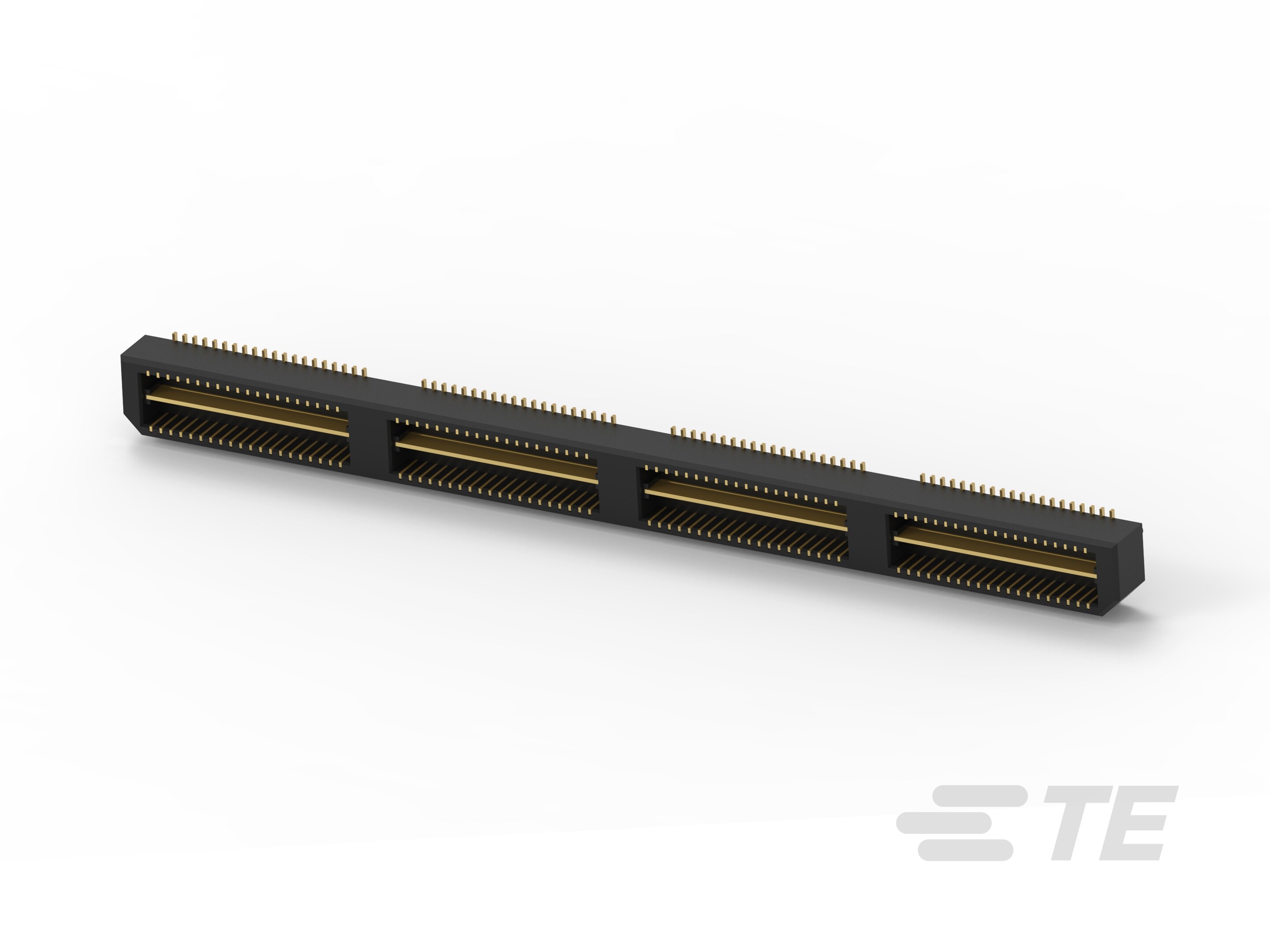

TE Connectivity Raychem Cable Protection 2-1658013-4	2	160	Gold	10 Áin	0.25 Ám	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in

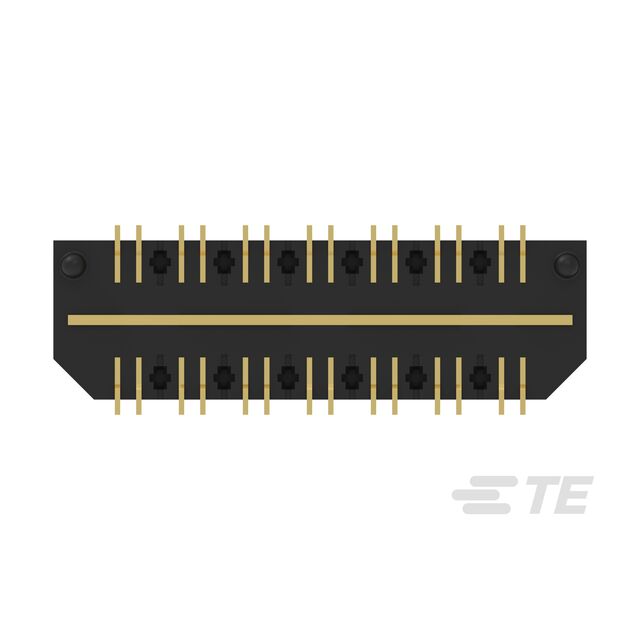

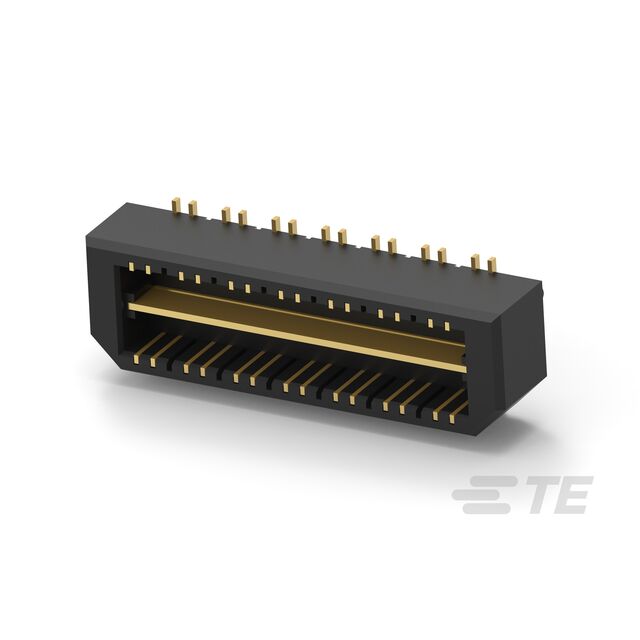

TE Connectivity Raychem Cable Protection 3-1658013-1	2	28	Gold	10 Áin	0.25 Ám	Surface Mount	Differential Pair Array Male	0.8 mm	0.031 in
TE Connectivity Raychem Cable Protection 1-1658013-4	2	112	Gold	100 µin	2.54 µm	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in	5 mm
TE Connectivity Raychem Cable Protection 2-1658013-1	2	40	Gold	10 Áin	0.25 Ám	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in

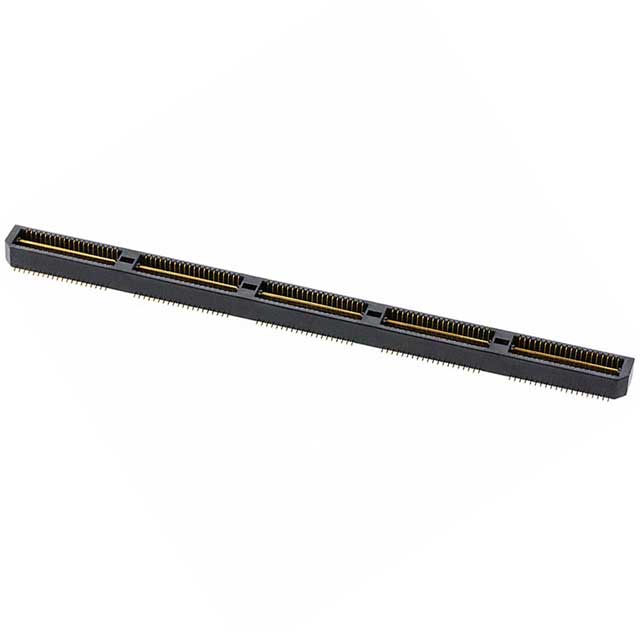

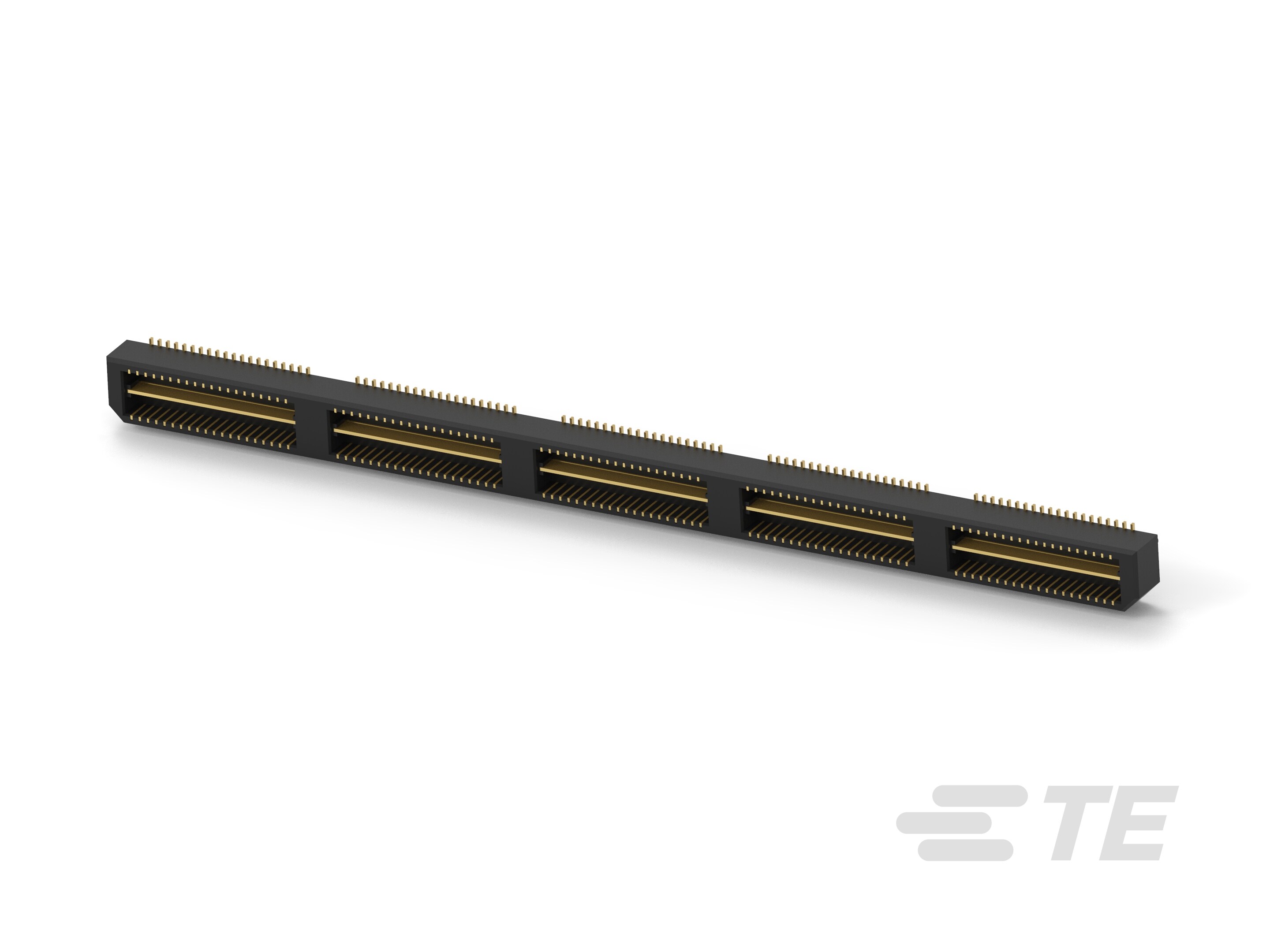

TE Connectivity Raychem Cable Protection 2-1658013-5	2		Gold	100 µin	2.54 µm	Surface Mount	Outer Shroud Contacts Plug	0.8 mm	0.031 in	5 mm
