MMI-M1P Series
Manufacturer: Adam Tech
Beta
⌘K

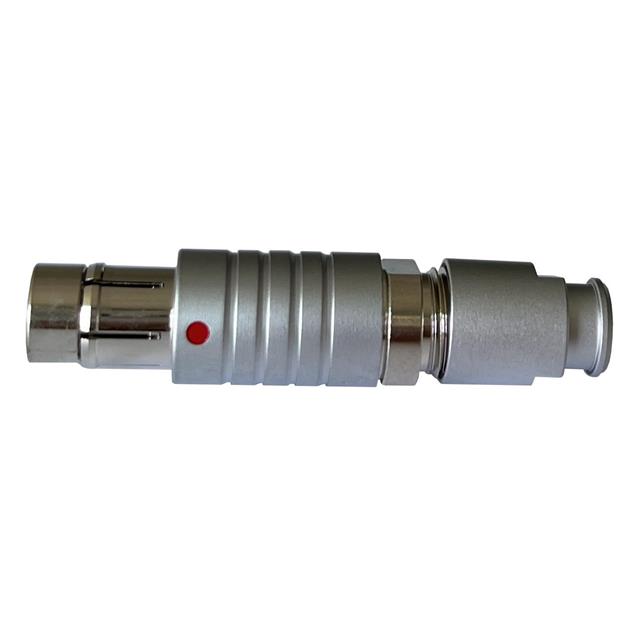

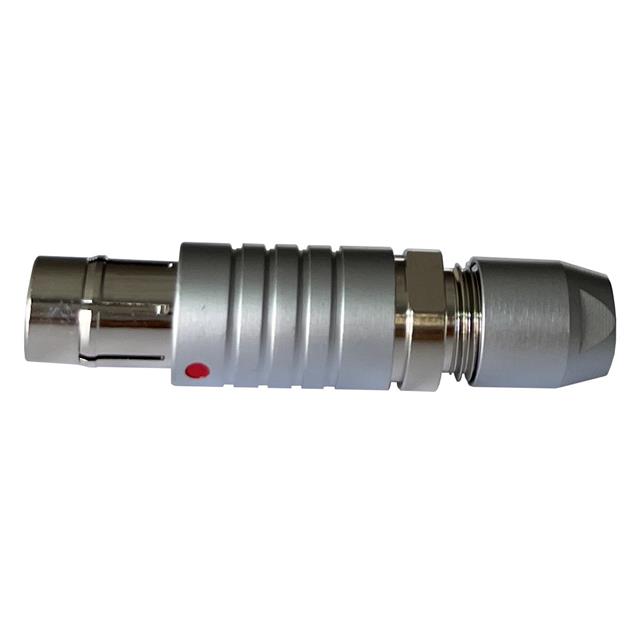

CONN PLUG MALE 5P GOLD SLDR CUP
| Part | Mounting Type | Contact Material | Current Rating (Amps) | Number of Positions | Voltage Rating | Fastening Type | Connector Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Contact Finish - Mating | Features | Orientation [custom] | Ingress Protection | Shielding | Shell Material | Primary Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Free Hanging (In-Line) | Brass | 7 A | 5 | 300 VDC | Push-Pull | Plug Male Pins | Silver | -55 C | 150 °C | Chrome | Gold | Backshell | 1 | IP68 - Dust Tight Waterproof | Unshielded | Brass | Metal | Polyphenylene Sulfide (PPS) |
Adam Tech | Free Hanging (In-Line) | Brass | 5 A | 6 | 250 V | Push-Pull | Plug Male Pins | Silver | -55 C | 150 °C | Chrome | Gold | Backshell | 1 | IP68 - Dust Tight Waterproof | Unshielded | Brass | Metal | Polyphenylene Sulfide (PPS) |
Adam Tech | Free Hanging (In-Line) | Brass | 8 A | 4 | 300 VDC | Push-Pull | Plug Male Pins | Silver | -55 C | 150 °C | Chrome | Gold | Backshell | 1 | IP68 - Dust Tight Waterproof | Unshielded | Brass | Metal | Polyphenylene Sulfide (PPS) |
Adam Tech | Free Hanging (In-Line) | Brass | 12 Amps | 2 | 250 V | Push-Pull | Plug Male Pins | Silver | -55 C | 150 °C | Chrome | Gold | Backshell | 1 | IP68 - Dust Tight Waterproof | Unshielded | Brass | Metal | Polyphenylene Sulfide (PPS) |
 Adam Tech | Free Hanging (In-Line) | Brass | 5 A | 6 | 250 V | Push-Pull | Plug Male Pins | Silver | -55 C | 150 °C | Chrome | Gold | Backshell Strain Relief | 1 | IP68 - Dust Tight Waterproof | Unshielded | Brass | Metal | Polyphenylene Sulfide (PPS) |
