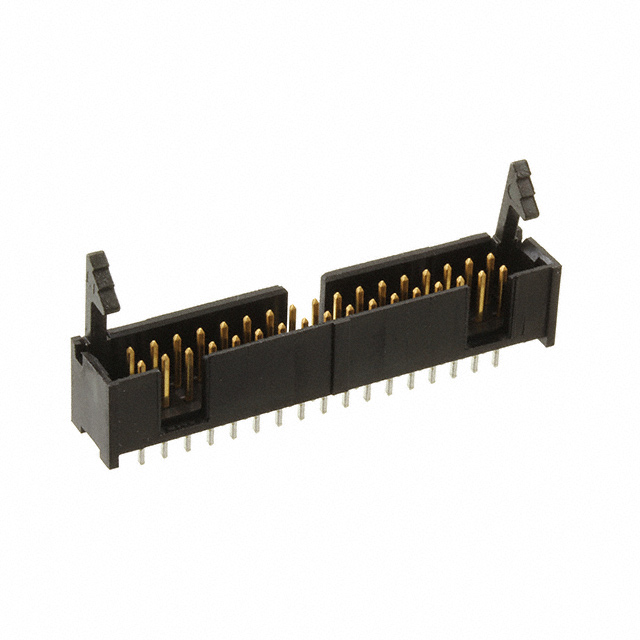

104313 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Type	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Contact Finish - Post	Connector Type	Termination	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Mounting Type	Insulation Color	Voltage Rating	Insulation Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Contact Shape	Number of Positions
TE Connectivity AMP Connectors 104313-6	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in	34	Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square

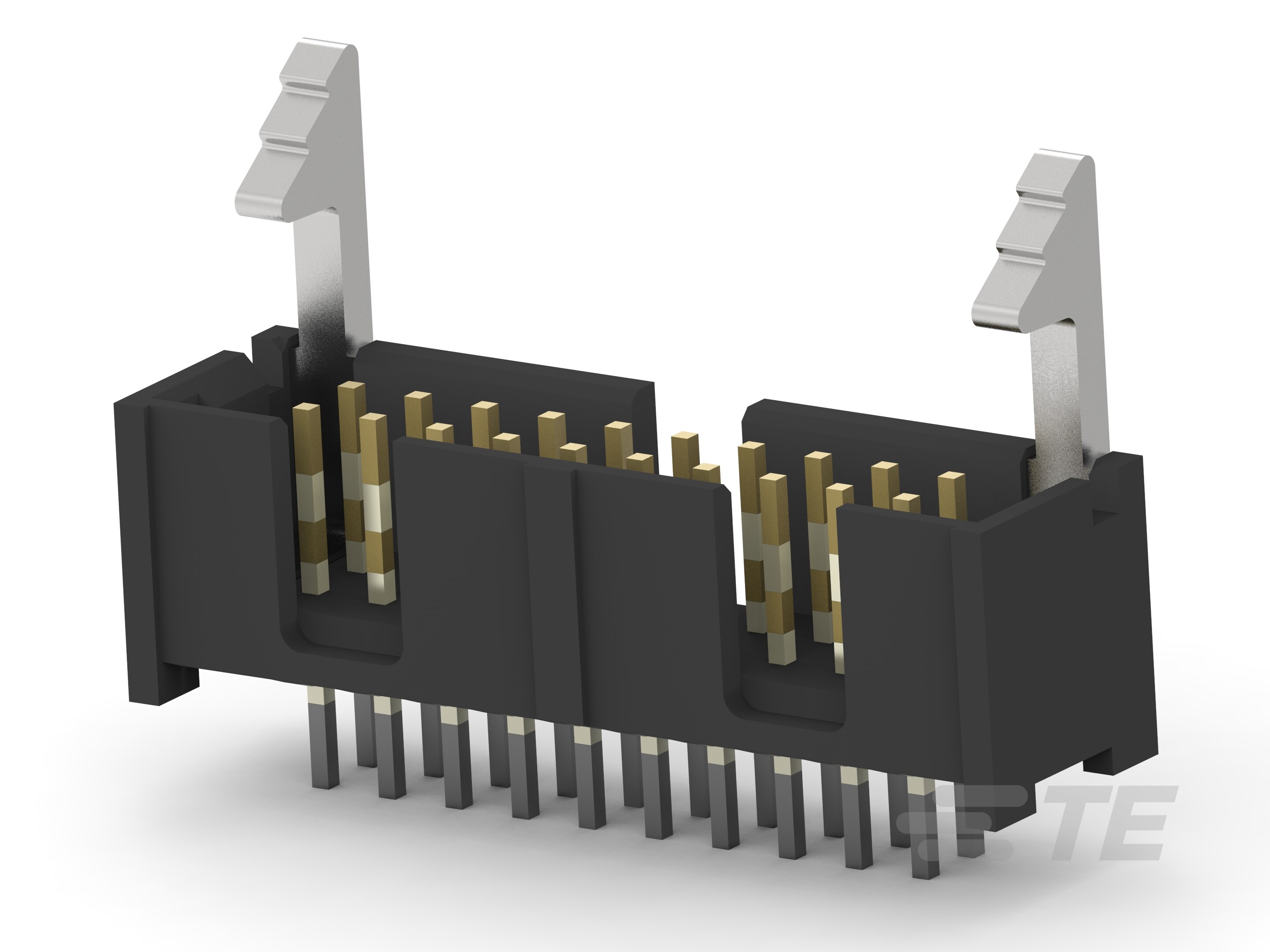

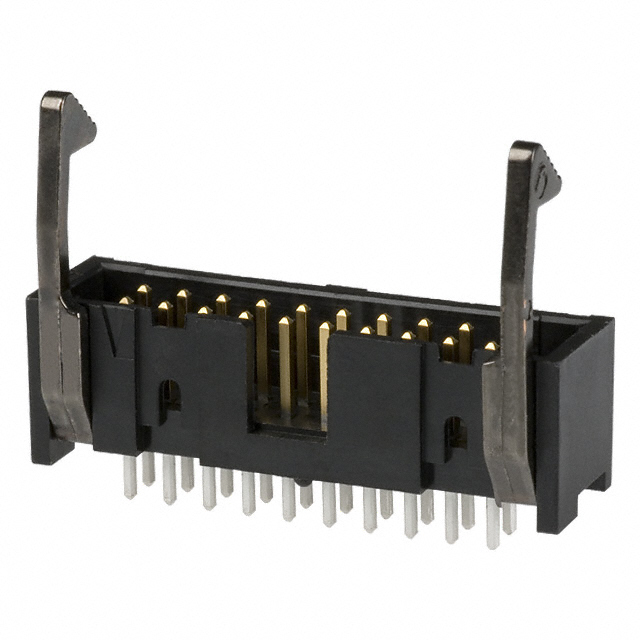

TE Connectivity AMP Connectors 104313-4	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in		Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square	20

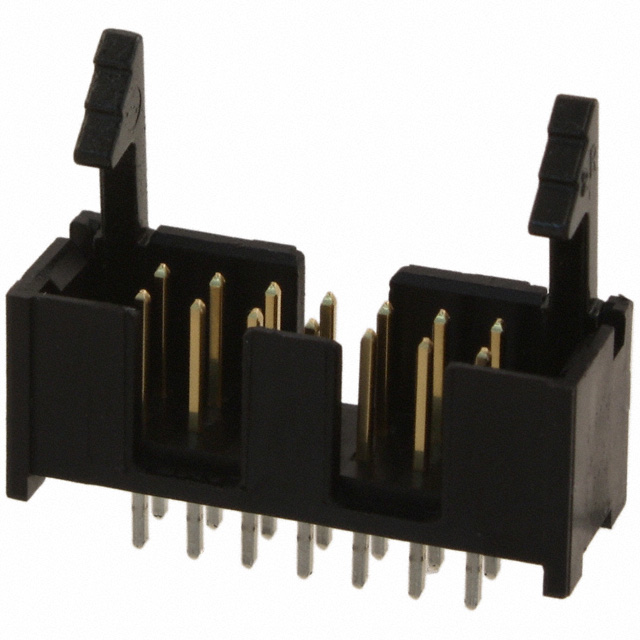

TE Connectivity AMP Connectors 104313-2	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in		Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square	14
TE Connectivity AMP Connectors 1-104313-0	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in		Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square	60

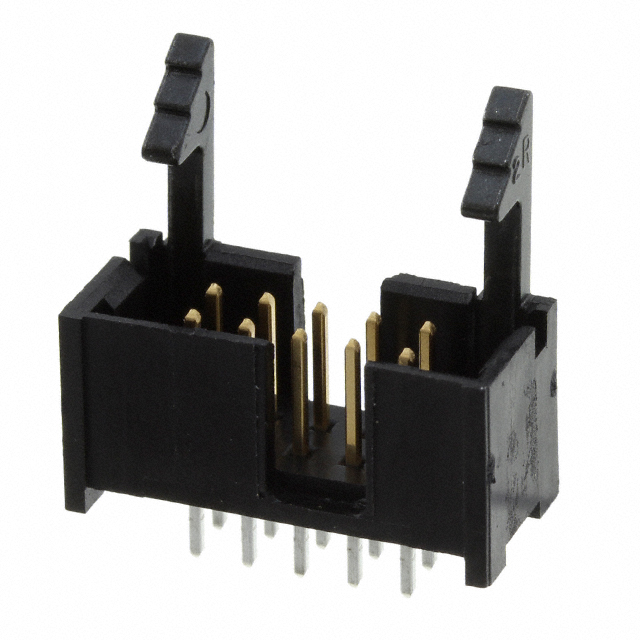

TE Connectivity AMP Connectors 104313-1	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in		Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square	10
TE Connectivity AMP Connectors 104313-9	2.54 µm	100 µin	3.05 mm	0.12 in	Male Pin	Shrouded - 4 Wall	All	0.1 "	2.54 mm	2	9.78 mm	0.385 in		Tin-Lead	Header	Solder	Keying Slot	0.76 Ám	30 Áin	Board to Cable/Wire	Through Hole	Black	250 VAC	Glass Filled Nylon Polyamide (PA)	Gold or Gold-Palladium	105 ░C	-65 ░C	0.1 in	2.54 mm	0.24 in	6.1 mm	Brass	1 A	UL94 V-0	Latch Lock/Eject Hooks	Square	50
