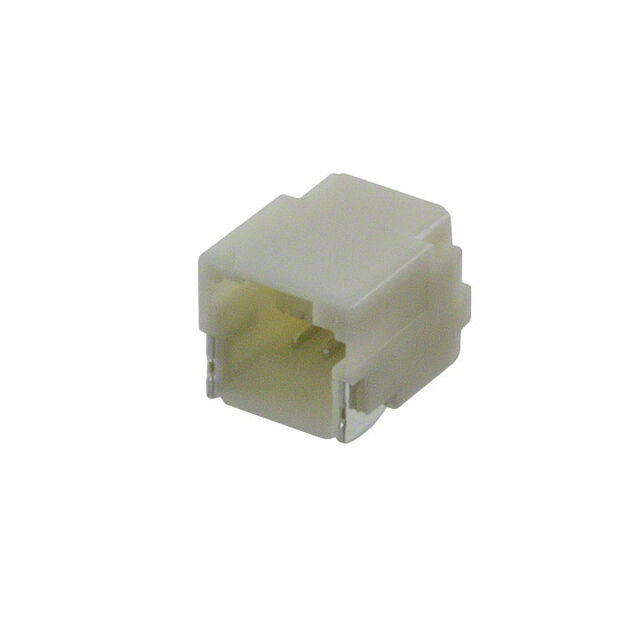

SM03B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 3POS 1MM
| Part | Insulation Color | Insulation Height | Insulation Height | Fastening Type | Material Flammability Rating | Contact Finish - Post | Style | Shrouding | Contact Material | Mounting Type | Features | Connector Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Type | Termination | Number of Rows | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | 4.4 mm | 0.173 in | Latch Holder | UL94 V-0 | Tin | Board to Cable/Wire | Shrouded - 4 Wall | Copper Alloy | Right Angle Surface Mount | Solder Retention | Header | 50 V | 1 mm | 0.039 in | Male Pin | Solder | 1 | All | 85 °C | -25 °C | Nylon Polyamide (PA) |
