AR08-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

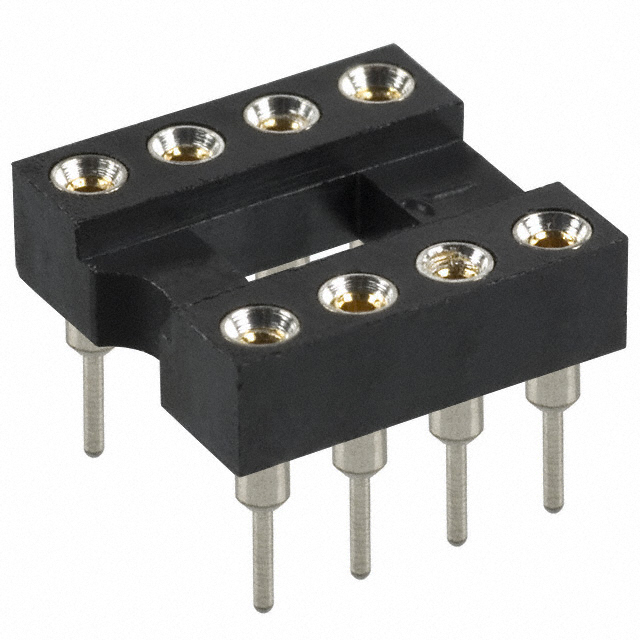

CONN IC DIP SOCKET 8POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Pitch - Post | Pitch - Post | Contact Finish - Post | Type | Type | Type | Features | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Material - Mating | Termination | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Contact Material - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

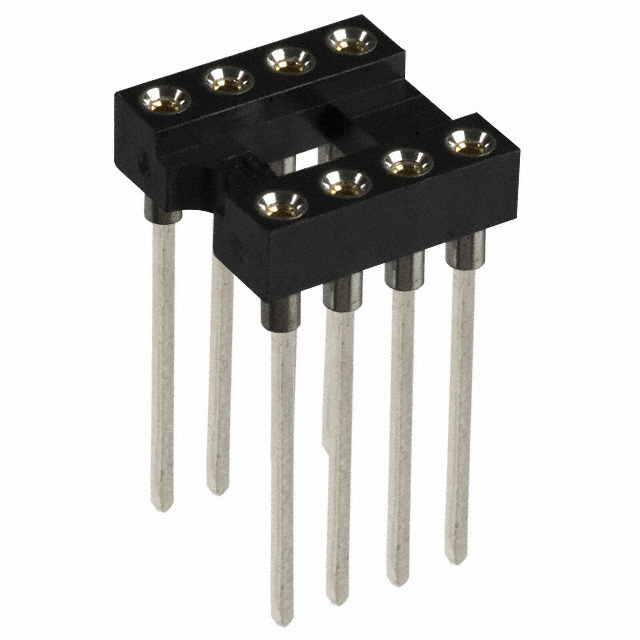

 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | 0.1 in | 2.54 mm | Tin | 7.62 mm | 0.3 in | DIP | Open Frame | 0.1 " | 2.54 mm | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | Wire Wrap | 8 | 2 | 4 | Beryllium Copper | -40 C | 105 ░C | Gold | Polyester Thermoplastic |
 Assmann WSW Components | 4 mOhm | 3 A | UL94 V-0 | 0.1 in | 2.54 mm | Tin | 7.62 mm | 0.3 in | DIP | Open Frame | 0.1 " | 2.54 mm | 200 µin | 5.08 µm | Through Hole | Beryllium Copper | Solder | 8 | 2 | 4 | Beryllium Copper | -40 C | 105 ░C | Polyester Thermoplastic |
