71966 Series

Catalog

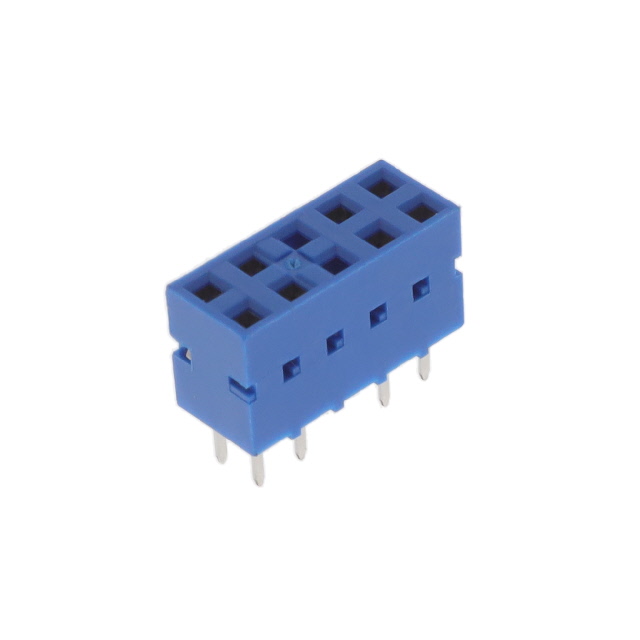

CONN RCPT 10POS 0.1 GOLD PCB

Part	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Rows	Number of Positions Loaded	Contact Shape	Contact Finish - Post	Mounting Type	Termination	Contact Material	Material Flammability Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Insulation Color	Fastening Type	Contact Finish - Mating
Amphenol ICC (FCI) 71966-310LF	Female Socket	Glass Filled Polyester Thermoplastic	30 Áin	0.76 Ám	7 mm	0.276 in	2.95 mm	0.116 in	2.54 mm	0.1 in	Receptacle	2	8	Square	Tin	Through Hole	Solder	Phosphor Bronze	UL94 V-0	10	0.1 in	2.54 mm	Board to Board Cable	Blue	Push-Pull	Gold
Amphenol ICC (FCI) 71966-311LF	Female Socket	Glass Filled Polyester Thermoplastic	30 Áin	0.76 Ám	7 mm	0.276 in	2.95 mm	0.116 in	2.54 mm	0.1 in	Receptacle	2	8	Square	Tin	Through Hole	Solder	Phosphor Bronze	UL94 V-0	11	0.1 in	2.54 mm	Board to Board Cable	Blue	Push-Pull	Gold
Amphenol ICC (FCI) 71966-312LF	Female Socket	Glass Filled Polyester Thermoplastic	30 Áin	0.76 Ám	7 mm	0.276 in	2.95 mm	0.116 in	2.54 mm	0.1 in	Receptacle	2	8	Square	Tin	Through Hole	Solder	Phosphor Bronze	UL94 V-0	12	0.1 in	2.54 mm	Board to Board Cable	Blue	Push-Pull	Gold
Amphenol ICC (FCI) 71966-308LF	Female Socket	Glass Filled Polyester Thermoplastic	30 Áin	0.76 Ám	7 mm	0.276 in	2.95 mm	0.116 in	2.54 mm	0.1 in	Receptacle	2	24	Square	Tin	Through Hole	Solder	Phosphor Bronze	UL94 V-0	36	0.1 in	2.54 mm	Board to Board Cable	Blue	Push-Pull	Gold
