77231 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

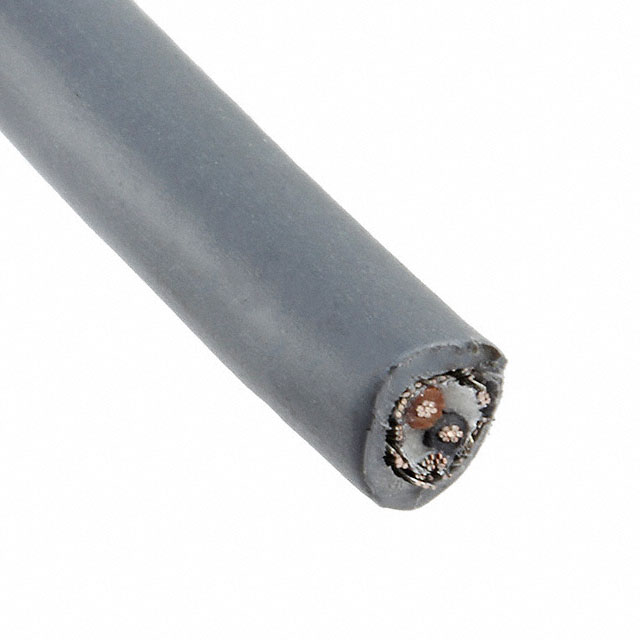

CABLE 2COND 14AWG SHLD 100=100'
| Part | Shield Material | Shield Coverage | Number of Conductors | Ratings | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Voltage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 100 % | 2 | ISO 10993 | 14.5 AWG | 7.32 mm | 0.288 " | Braid Foil | 600 V | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | 41 | 30 | Copper Tinned | Biological Compatibility | -50 °C | 105 ░C | Slate | Multi-Conductor | ||
ALPHA WIRE | Aluminum Copper Tinned | 100 % | 2 | ISO 10993 | 14.5 AWG | 7.32 mm | 0.288 " | Braid Foil | 600 V | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | 41 | 30 | Copper Tinned | Biological Compatibility | -50 °C | 105 ░C | Slate | Multi-Conductor | 100 ft | 30.5 m |
