1986724 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK PLUG 6POS STR 3.81MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Termination Style | Mounting Type | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Pitch [x] | Pitch [x] | Voltage - UL | Type | Positions Per Level | Material Flammability Rating | Contact Material | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Features | Housing Material | Number of Levels | Current - UL | Number of Positions | Contact Mating Finish | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

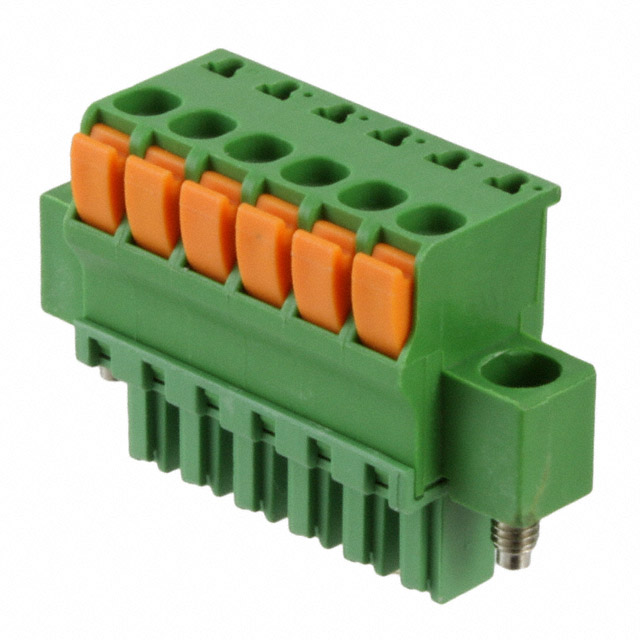

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11.66 mm | 0.459 in | Push-In Spring Screwless - Leg Spring | Free Hanging (In-Line) | 14 AWG | 30 AWG | 0.15 in | 3.81 mm | 300 V | Plug Female Sockets | 6 | UL94 V-0 | Copper Alloy | Green | 0.05 mm² | 2 mm² | Mating Flange | Polyamide (PA) Nylon | 1 | 9 A | 6 | Tin | ||
 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11.66 mm | 0.459 in | Push-In Spring Screwless - Leg Spring | Free Hanging (In-Line) | 14 AWG | 30 AWG | 0.15 in | 3.81 mm | 300 V | Plug Female Sockets | 5 | UL94 V-0 | Copper Alloy | Green | Mating Flange | Polyamide (PA) Nylon | 1 | 9 A | Tin | 2 mm˛ | 0.05 mm˛ | |||

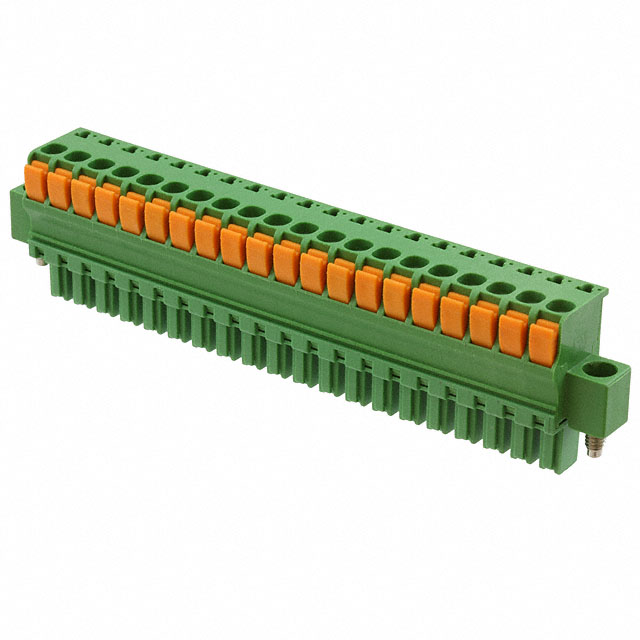

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11.66 mm | 0.459 in | Push-In Spring Screwless - Leg Spring | Free Hanging (In-Line) | 14 AWG | 30 AWG | 0.15 in | 3.81 mm | 300 V | Plug Female Sockets | 20 | UL94 V-0 | Copper Alloy | Green | 0.05 mm² | 2 mm² | Mating Flange | Polyamide (PA) Nylon | 1 | 9 A | 20 | Tin | ||

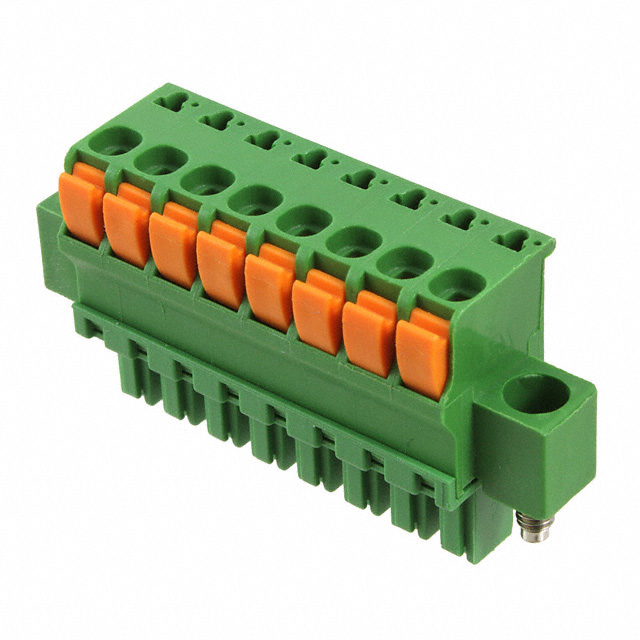

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11.66 mm | 0.459 in | Push-In Spring Screwless - Leg Spring | Free Hanging (In-Line) | 14 AWG | 30 AWG | 0.15 in | 3.81 mm | 300 V | Plug Female Sockets | 8 | UL94 V-0 | Copper Alloy | Green | Mating Flange | Polyamide (PA) Nylon | 1 | 9 A | 8 | Tin | 2 mm˛ | 0.05 mm˛ | ||
 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11.66 mm | 0.459 in | Push-In Spring Screwless - Leg Spring | Free Hanging (In-Line) | 14 AWG | 30 AWG | 0.15 in | 3.81 mm | 300 V | Plug Female Sockets | 3 | UL94 V-0 | Copper Alloy | Green | 0.05 mm² | 2 mm² | Mating Flange | Polyamide (PA) Nylon | 1 | 9 A | Tin |
