012528PW Series

Catalog

PAN PHILLIPS SCREW 1/4-28 THREA

Part	Length - Below Head [x]	Length - Below Head [x]	Head Height	Head Height	Type	Material	Screw Head Type	Drive Type	Head Diameter [diameter]	Head Diameter	Thread Size	Length - Overall [x]	Length - Overall [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head
Essentra Components 012528PW018	0.188 in	4.76 mm	5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips	0.483 in	12.26 mm	0.25 in 28
Essentra Components 012528PW050			5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips			0.25 in 28	17.73 mm	0.698 in	12.7 mm	0.5 in	0.5 in
Essentra Components 012528PW075	0.75 in	19.05 mm	5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips			0.25 in 28	24.08 mm	0.948 in				0.75 in
Essentra Components 012528PW062			5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips	0.483 in	12.26 mm	0.25 in 28	20.9 mm	0.823 in	0.625 in	0.625 in	15.88 mm

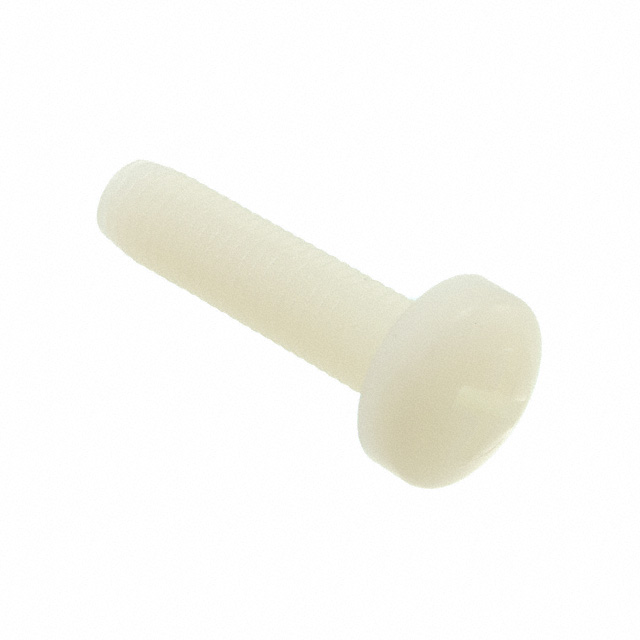

Essentra Components 012528PW100			5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips			0.25 in 28	30.43 mm	1.198 in	25.4 mm				1 in
Essentra Components 012528PW043	0.438 "	11.11 mm	5.03 mm	0.198 "	Machine Screw	Nylon	Pan Head	Phillips	0.483 in	12.26 mm	0.25 in 28
