SMA51 Series
Manufacturer: Sanken Electric USA Inc.
Beta
⌘K

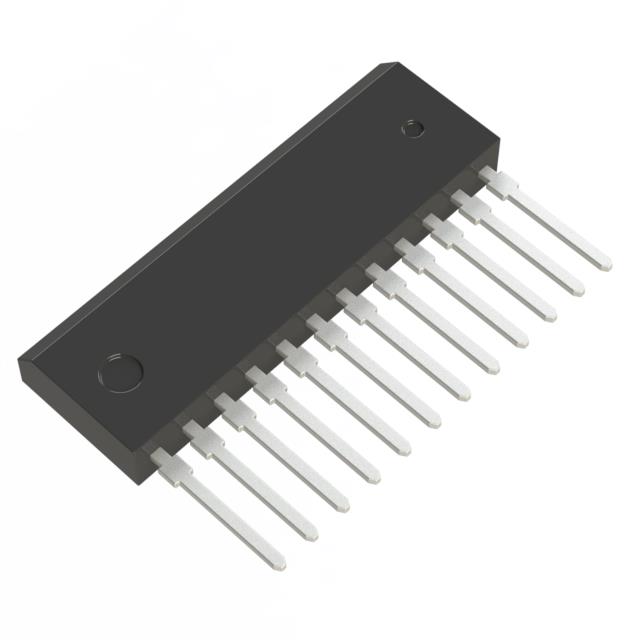

MOSFET 3N/3P-CH 60V 4A 12SIP
| Part | Supplier Device Package | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Power - Max [Max] | Mounting Type | Technology | Package / Case | Configuration | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Drain to Source Voltage (Vdss) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power - Max | Configuration [custom] | Configuration [custom] | Rds On (Max) @ Id, Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanken Electric USA Inc. | 12-SIP | 4 A | 2 V | 4 W | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 3 N and 3 P-Channel (3-Phase Bridge) | 550 mOhm | 150 pF 320 pF | 60 V | 150 °C | |||||
 Sanken Electric USA Inc. | 12-SIP | 7 A | 4 W | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 6 N-Channel (3-Phase Bridge) | 250 mOhm | 250 V | 150 °C | 850 pF | ||||||
Sanken Electric USA Inc. | 12-SIP | 10 A | 2 V | 4 W | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 3 N and 3 P-Channel (3-Phase Bridge) | 60 V | 150 °C | 460 pF 1200 pF | ||||||
 Sanken Electric USA Inc. | 12-SIP | 2 A | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 6 N-Channel (3-Phase Bridge) | 250 V | ||||||||||
Sanken Electric USA Inc. | 12-SIP | 7 A | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 4 N-Channel | 1.1 Ohm | 450 V | 150 °C | 720 pF | 4 W 35 W | ||||||
Sanken Electric USA Inc. | 12-SIP | 4 A | 2 V | 4 W 28 W | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 4 N-Channel | 550 mOhm | 230 pF | 100 V | 150 °C | |||||
Sanken Electric USA Inc. | 12-SIP | 6 A | 2 V | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 3 Phase Inverter | 220 mOhm 220 mOhm | 320 pF 790 pF | 60 V | 150 °C | 4 W 29 W | 3 | 3 | |||
Sanken Electric USA Inc. | 12-SIP | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 3 N and 3 P-Channel (3-Phase Bridge) | 500 V | |||||||||||
Sanken Electric USA Inc. | 12-SIP | 1.5 A | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 3 N and 3 P-Channel (3-Phase Bridge) | 500 V | ||||||||||
Sanken Electric USA Inc. | 12-SIP | 5 A | 4 W | Through Hole | MOSFET (Metal Oxide) | 12-SIP | 6 N-Channel (3-Phase Bridge) | 770 pF | 500 V | 150 °C | 1.4 Ohm |
