86402CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

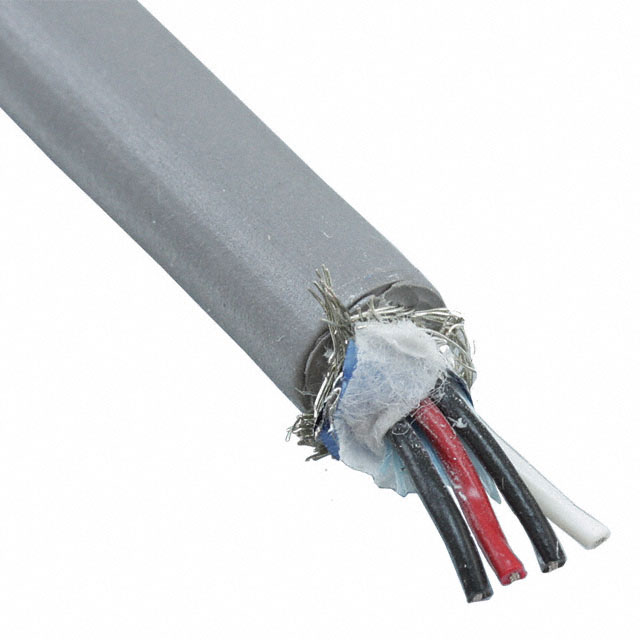

CBL 4COND 28AWG SHLD 1000=1000'
| Part | Shield Material | Shield Coverage | Features | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Number of Conductors | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Wire Gauge | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Biological Compatibility Drain Wire | ISO 10993 UL Style 2661 | 1.143 mm | 0.045 in | Poly-Vinyl Chloride (PVC) | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | 4 | Copper Tinned | Braid Foil | 5.87 mm | 0.231 in | 300 VDC | Slate | 28 AWG | Multi-Conductor | ||
ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Biological Compatibility Drain Wire | ISO 10993 UL Style 2661 | 1.143 mm | 0.045 in | Poly-Vinyl Chloride (PVC) | 7 | 36 AWG | Poly-Vinyl Chloride (PVC) | 4 | Copper Tinned | Braid Foil | 5.87 mm | 0.231 in | 300 VDC | Slate | 28 AWG | Multi-Conductor | 304.8 m | 1000 ft |
