745-014 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 14POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions/Bay/Row	Contact Type	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish	Color	Card Type	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-014-541-101	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge

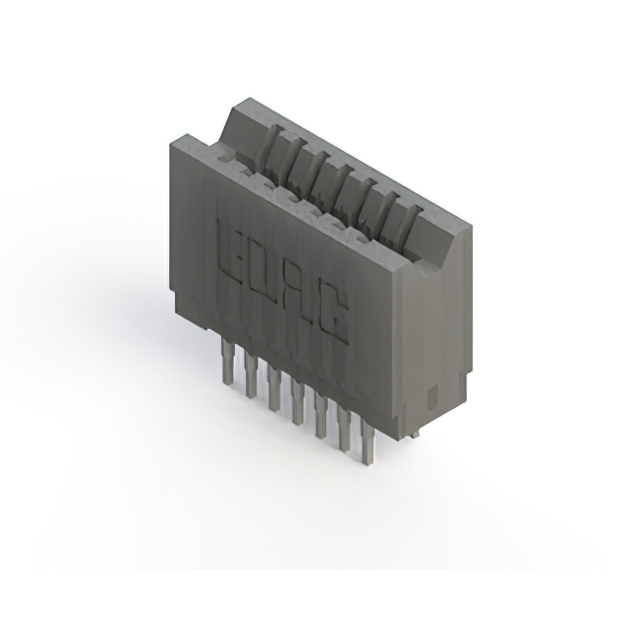

EDAC Inc. 745-014-522-206	Polyester Thermoplastic		7	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	Dual	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C		Gold	Black	Non Specified - Dual Edge	2	2
EDAC Inc. 745-014-520-101	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge

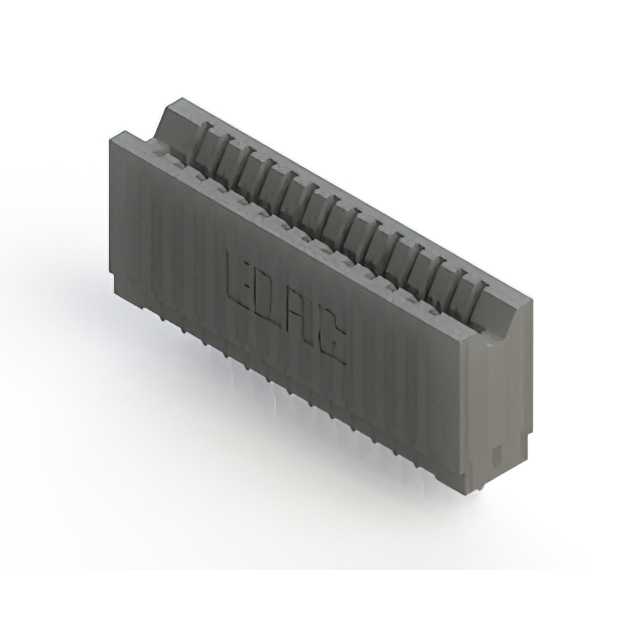

EDAC Inc. 745-014-520-106	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge

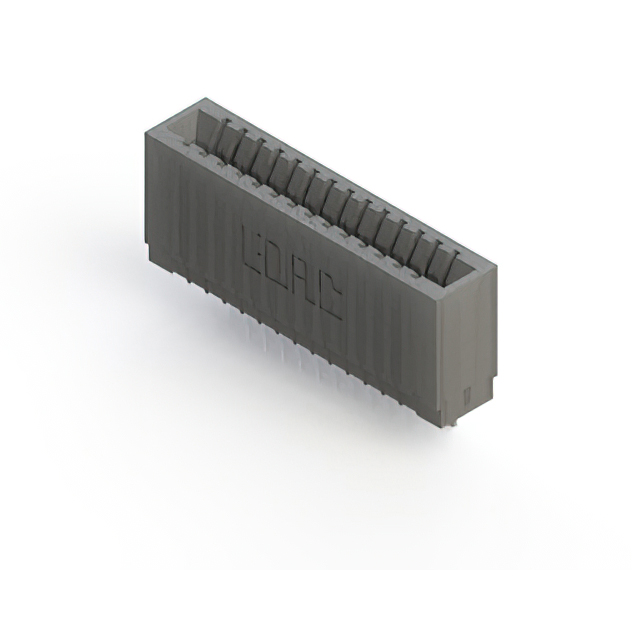

EDAC Inc. 745-014-540-101	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge
EDAC Inc. 745-014-525-106	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge
EDAC Inc. 745-014-560-206	Polyester Thermoplastic		7	Cantilever Make Before Break	Through Hole	Press-Fit	30 Áin	0.76 Ám	Dual	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C		Gold	Black	Non Specified - Dual Edge	2	2

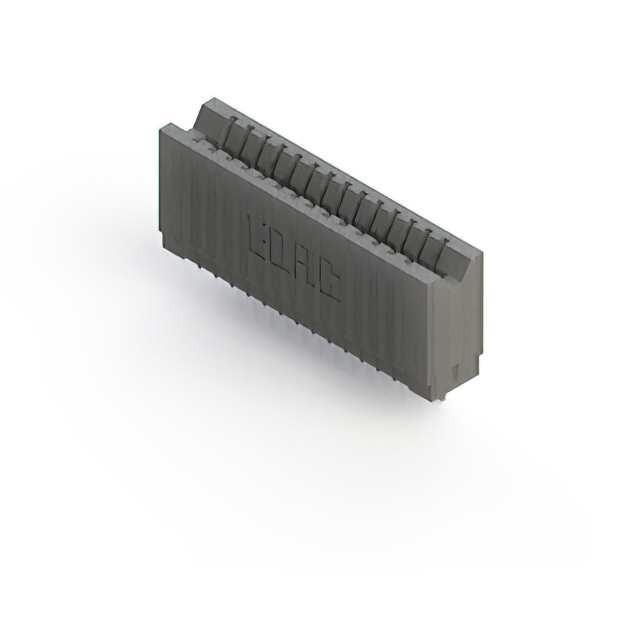

EDAC Inc. 745-014-541-106	Polyester Thermoplastic	1	14	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Single	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C	1	Gold	Black	Non Specified - Single Edge

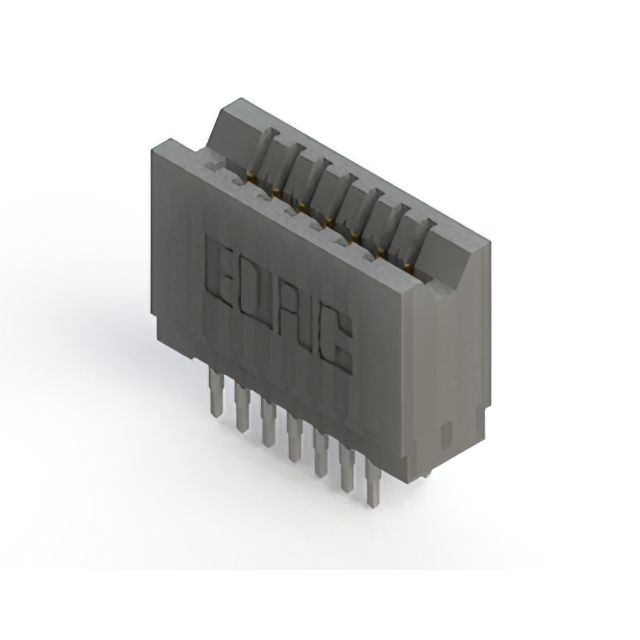

EDAC Inc. 745-014-525-206	Polyester Thermoplastic		7	Cantilever	Through Hole	Press-Fit	30 Áin	0.76 Ám	Dual	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C		Gold	Black	Non Specified - Dual Edge	2	2

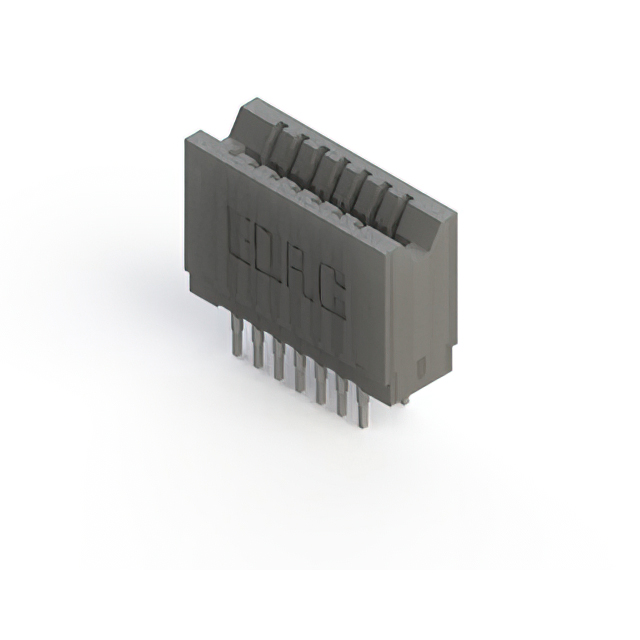

EDAC Inc. 745-014-540-206	Polyester Thermoplastic		7	Cantilever	Through Hole	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Dual	Female	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.1 "	2.54 mm	-40 C	105 ░C		Gold	Black	Non Specified - Dual Edge	2	2
