9BMB24 Series

Catalog

DC BLOWER CENTRIFUGAL BALL BEARING 24V 12V TO 26.4V 36.7CFM 56DB 97.1 X 96.5 X 33MM SENSOR

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Material - Blade	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Width	Voltage - Rated	Weight	Weight	Approval Agency	Power (Watts)	Bearing Type	RPM	Termination	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Static Pressure	Static Pressure	Features	Noise
Sanyo Denki America Inc. 9BMB24F201	0.45 A	40000 Hrs	Plastic	Plastic	36.7 CFM	1.03 m³/min	26.4 VDC	12 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	10.8 W	Ball	4500 RPM	3 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.647 in H2O	410 Pa	Locked Rotor Protection Speed Sensor (Tach)	56 dB
Sanyo Denki America Inc. 9BMB24H202	0.55 A	40000 Hrs	Plastic	Plastic	39.2 CFM	1.1 m³/min	26.4 VDC	12 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	13.2 W	Ball	4850 RPM	2 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.968 in H2O	490 Pa		57 dB
Sanyo Denki America Inc. 9BMB24P2F01	0.45 A	40000 Hrs	Plastic	Plastic	36.7 CFM	1.03 m³/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	10.8 W	Ball	4500 RPM	4 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.64 in H2O	408.5 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	56 dB
Sanyo Denki America Inc. 9BMB24K202	1.62 A	40000 Hrs	Plastic	Plastic	56.8 CFM	1.59 mł/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	38.88 W	Ball	6850 RPM	2 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	5.14 in H2O	1280 Pa

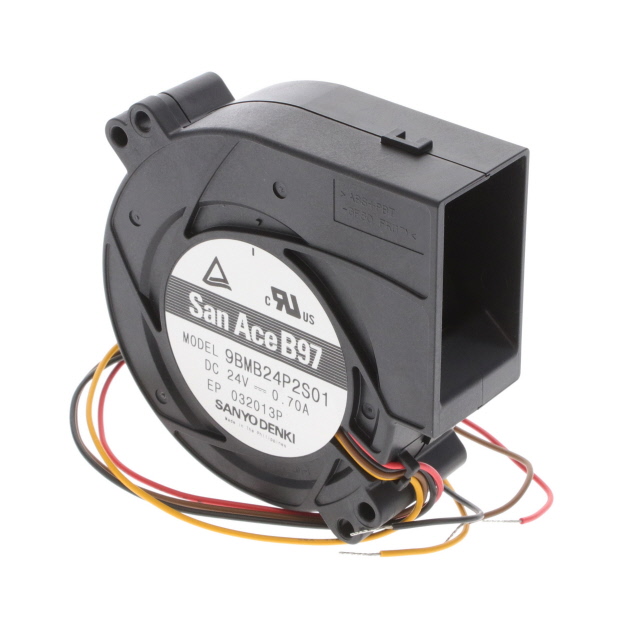

Sanyo Denki America Inc. 9BMB24P2S01	0.7 A	40000 Hrs	Plastic	Plastic	43.1 CFM	1.21 m³/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	16.8 W	Ball	5250 RPM	4 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	2.45 in H2O	610 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	59 dB(A)
Sanyo Denki America Inc. 9BMB24P2H01	0.55 A	40000 Hrs	Plastic	Plastic	39.2 CFM	1.1 m³/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	13.2 W	Ball	4850 RPM	4 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.968 in H2O	490 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	57 dB
Sanyo Denki America Inc. 9BMB24H201	0.55 A	40000 Hrs	Plastic	Plastic	39.2 CFM	1.1 m³/min	26.4 VDC	12 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	13.2 W	Ball	4850 RPM	3 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.968 in H2O	490 Pa	Locked Rotor Protection Speed Sensor (Tach)	57 dB
Sanyo Denki America Inc. 9BMB24H2D01	0.55 A	40000 Hrs	Plastic	Plastic	39.2 CFM	1.1 m³/min	26.4 VDC	12 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	13.2 W	Ball	4850 RPM	3 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	1.968 in H2O	490 Pa	Locked Rotor Sensor	57 dB
Sanyo Denki America Inc. 9BMB24P2K01	1.62 A	40000 Hrs	Plastic	Plastic	56.8 CFM	1.59 mł/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	38.88 W	Ball	6850 RPM	4 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	5.14 in H2O	1280 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)

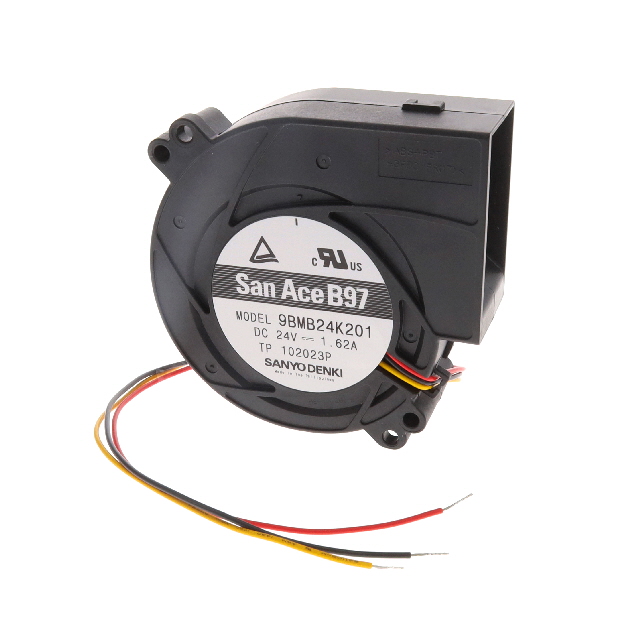

Sanyo Denki America Inc. 9BMB24K201	1.62 A	40000 Hrs	Plastic	Plastic	56.8 CFM	1.59 mł/min	26.4 VDC	21.6 VDC	-20 ░C	70 °C	Blower	33 mm	24 VDC	190.06 g	0.419 lb	cURus TUV	38.88 W	Ball	6850 RPM	3 Wire Leads	97.1 mm	Rectangular/Rounded	95 mm	5.14 in H2O	1280 Pa	Locked Rotor Protection Speed Sensor (Tach)
