PLUGGABLE TERMINAL BLOCKS 9 POS 7.62MM PITCH THRU HOLE INVERT HDR

Part	Housing Material	Insulation Height [z]	Insulation Height [z]	Contact Tail Length [x]	Contact Tail Length [x]	Material Flammability Rating	Color	Current - IEC	Voltage - IEC	Contact Mating Finish	Pitch	Pitch	Current - UL	Number of Levels	Mounting Type	Number of Positions	Positions Per Level	Termination Style	Type	Header Orientation	Header Orientation	Screw Size	Insulation Height	Insulation Height	Wire Strip Length	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Plug Wire Entry	Features	Positions Per Level [custom]	Contact Tail Length	Contact Tail Length	Voltage - UL	Torque - Screw	Wire Strip Length [x]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm² [Min] [custom]	Wire Gauge or Range - mm² [Max] [custom]

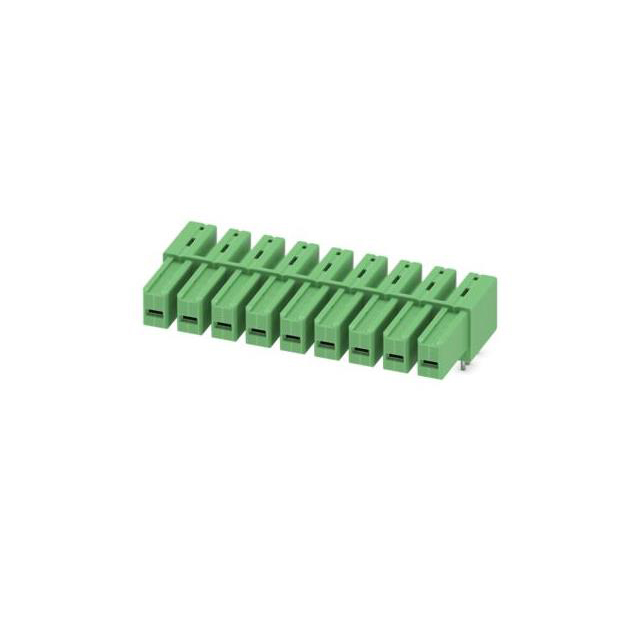

Phoenix Contact 1708459	Polyamide (PA) Nylon	12.8 mm	0.504 "	5 mm	0.197 in	UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	5 A	1	Through Hole	9	9	Solder	Header Female Sockets	90° Right Angle

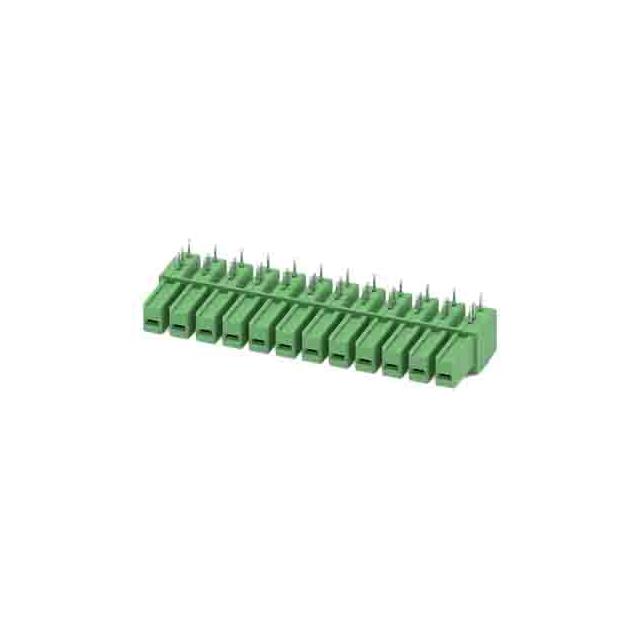

Phoenix Contact 1708705	Polyamide (PA) Nylon	12.8 mm	0.504 "	5 mm	0.197 in	UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	5 A	1	Through Hole	12	12	Solder	Header Female Sockets	Right Angle Under Board	90 °

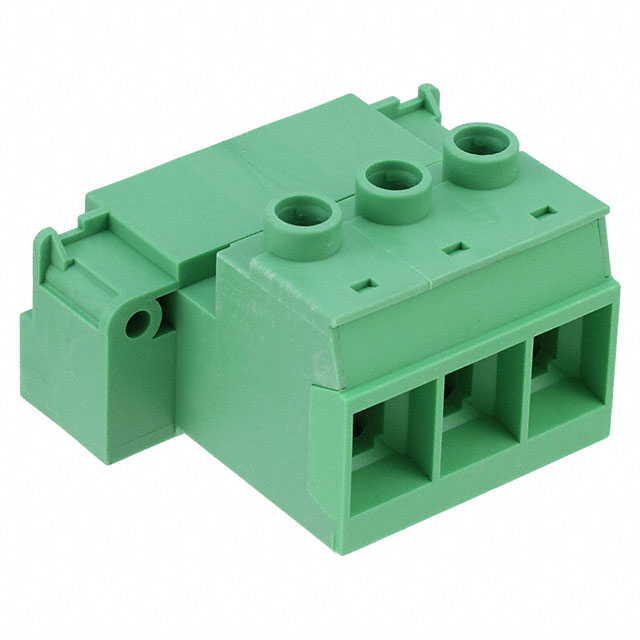

Phoenix Contact 1784868	Polyamide (PA) Nylon					UL94 V-0	Green	125 A	1 kV	Silver	0.591 in	15 mm	115 A	1	Free Hanging (In-Line)		3	Screw - Rising Cage Clamp				M5	1.642 in	41.7 mm	20 mm	4.5 Nm	22.1 Lb-In	2.5 Nm	39.8 Lb-In	35 mm²	0.5 mm²	16 AWG	2 AWG	180 °	Mating Flange
Phoenix Contact 1718313							Green	41 A	1 kV	Tin	0.3 in	7.62 mm	41 A	1	Free Hanging (In-Line)	7		Screw - Rising Cage Clamp												10 mm²	0.2 mm²	24 AWG	8 AWG	180 °	Latch Lock	7
Phoenix Contact 1969658	Polyamide (PA) Nylon					UL94 V-0	Green	76 A	1 kV	Silver	0.4 in	10.16 mm	66 A	1	Through Hole	6	6	Solder	Header Female Sockets	90° Right Angle			0.535 in	13.6 mm											Mating and Mounting Flange		0.157 in	4 mm	300 V
Phoenix Contact 1709063	Polyamide (PA) Nylon					UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	41 A	1	Free Hanging (In-Line)	4	4	Screw - Rising Cage Clamp				M3	0.902 in	22.9 mm	10 mm	0.8 Nm		0.7 Nm		10 mm²	0.2 mm²	24 AWG	8 AWG	180 °						6.2 Lb-In 7.1 Lb-In
Phoenix Contact 1975817	Polyamide (PA) Nylon					UL94 V-0	Green	76 A	1 kV	Silver	0.4 in	10.16 mm	55 A	1	Free Hanging (In-Line)	2	2	Screw - Rising Cage Clamp				M4	1.094 in	27.8 mm		1.8 Nm	15 Lb-In	1.7 Nm	15.9 Lb-In			20 AWG	6 AWG	180 °	Mating Flange						12 mm	0.75 mm˛	16 mm˛	0.75 mm²	16 mm²

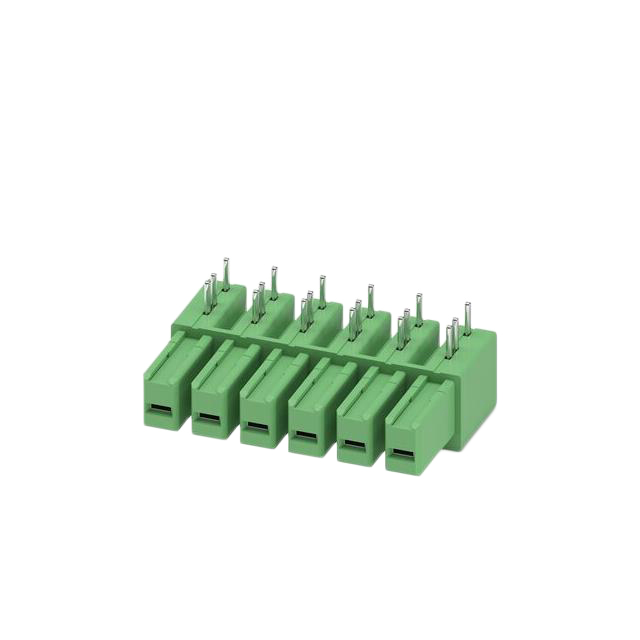

Phoenix Contact 1708640	Polyamide (PA) Nylon	12.8 mm	0.504 "	5 mm	0.197 in	UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	5 A	1	Through Hole	6	6	Solder	Header Female Sockets	Right Angle Under Board	90 °

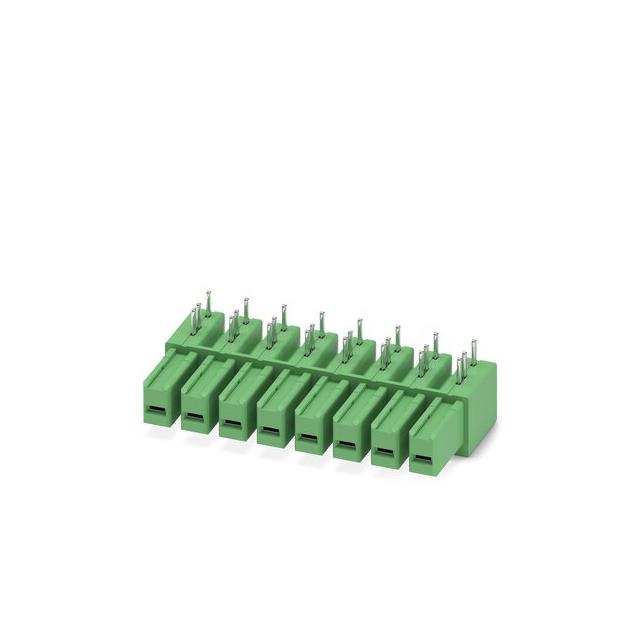

Phoenix Contact 1708666	Polyamide (PA) Nylon	12.8 mm	0.504 "	5 mm	0.197 in	UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	5 A	1	Through Hole	8	8	Solder	Header Female Sockets	Right Angle Under Board	90 °

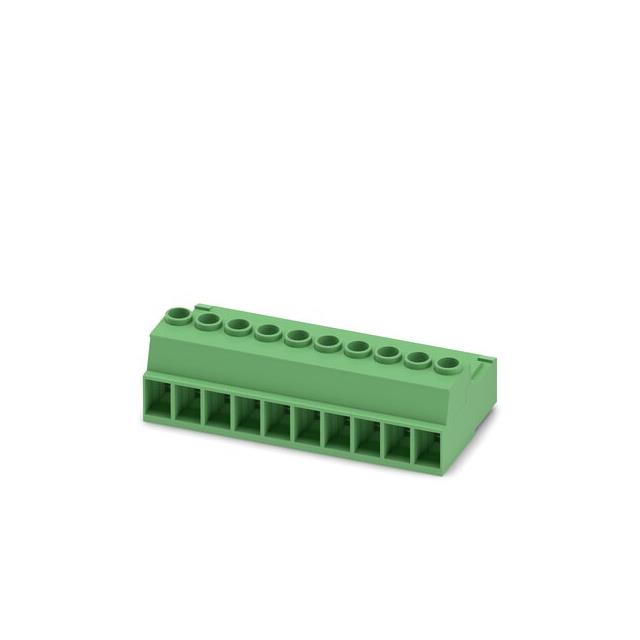

Phoenix Contact 1709128	Polyamide (PA) Nylon					UL94 V-0	Green	41 A	1 kV	Tin	0.3 in	7.62 mm	41 A	1	Free Hanging (In-Line)	10	10	Screw - Rising Cage Clamp				M3	0.902 in	22.9 mm	10 mm	0.8 Nm		0.7 Nm		10 mm²	0.2 mm²	24 AWG	8 AWG	180 °						6.2 Lb-In 7.1 Lb-In		0.2 mm˛	10 mm˛
