C4ATDB Series

Manufacturer: KEMET

Catalog

CAP FILM 20UF 5% 250VDC RADIAL

Part	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Voltage Rating - DC	Tolerance	Applications	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
KEMET C4ATDBW5200A30J	37 mm	1.457 in	160 V	1.673 "	28 mm	42.5 mm	1.102 "	Radial - 4 Leads	Through Hole	37.5 mm	1.476 in	20 µF	Polypropylene (PP) Metallized	85 °C	-40 C	PC Pins	250 V	5 %	DC Filtering DC Link High Frequency Switching	4.2 mOhm
KEMET C4ATDBW5300A30J		1.772 "	160 V	1.673 "		42.5 mm	1.181 in	Radial - 4 Leads	Through Hole	37.5 mm	1.476 in	30 µF	Polypropylene (PP) Metallized	85 °C	-40 C	PC Pins	250 V	5 %	DC Filtering DC Link High Frequency Switching	2.6 mOhm	45 mm	30 mm
KEMET C4ATDBW5600A30J			160 V		35 mm	2.264 in		Radial - 4 Leads	Through Hole	52.5 mm	2.067 in	60 µF	Polypropylene (PP) Metallized	85 °C	-40 C	PC Pins	250 V	5 %	DC Filtering DC Link High Frequency Switching	3.9 mOhms		1.378 in	57.5 mm	1.969 in	50 mm
KEMET C4ATDBW5100A30J			160 V	1.26 in		32 mm	0.709 in	Radial - 4 Leads	Through Hole	27.5 mm	1.083 in	10 µF	Polypropylene (PP) Metallized	85 °C	-40 C	PC Pins	250 V	5 %	DC Filtering DC Link High Frequency Switching	3.1 mOhms	1.299 in	18 mm				33 mm

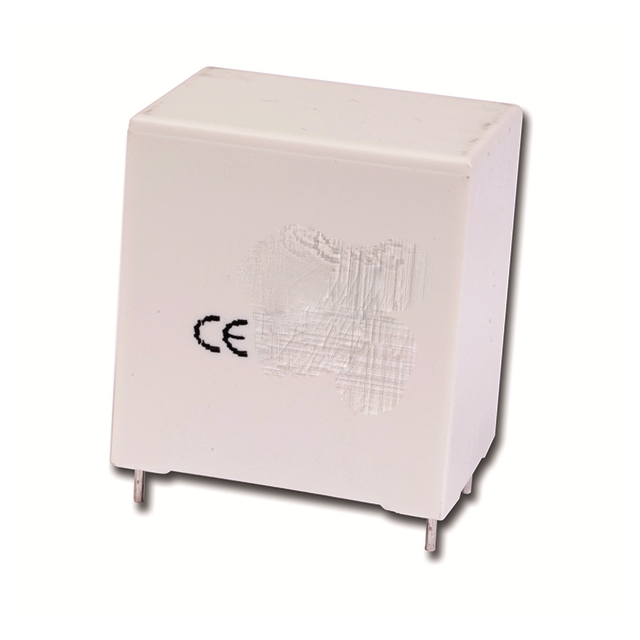

KEMET C4ATDBU4330A30J			160 V	1.26 in		32 mm	0.512 "	Radial	Through Hole	27.5 mm	1.083 in	3.3 µF	Polypropylene (PP) Metallized	85 °C	-40 C	PC Pins	250 V	5 %	DC Filtering DC Link High Frequency Switching	7.8 mOhms		13 mm					0.866 in	22 mm
