1734248 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

FFC / FPC BOARD CONNECTOR, 1 MM, 16 CONTACTS, RECEPTACLE, SURFACE MOUNT

Part	FFC, FCB Thickness	Locking Feature	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish Thickness	Housing Material	Termination	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Mating Cycles	Actuator Color	Voltage Rating	Contact Finish	Flat Flex Type	Pitch [x]	Pitch [x]	Cable End Type	Height Above Board	Height Above Board	Number of Positions	Actuator Material	Number of Positions

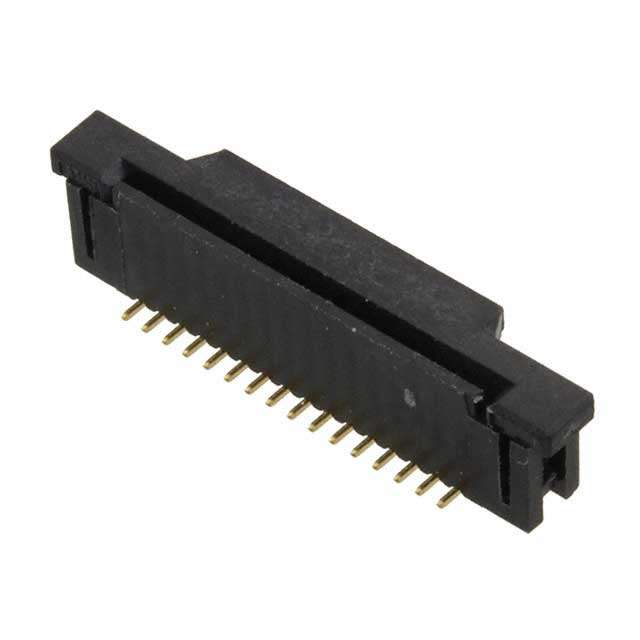

TE Connectivity Raychem Cable Protection 1-1734248-6	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in	16	Polyamide (PA9T) Nylon 9T
TE Connectivity Raychem Cable Protection 1734248-6	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	6
TE Connectivity Raychem Cable Protection 2-1734248-8	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	28

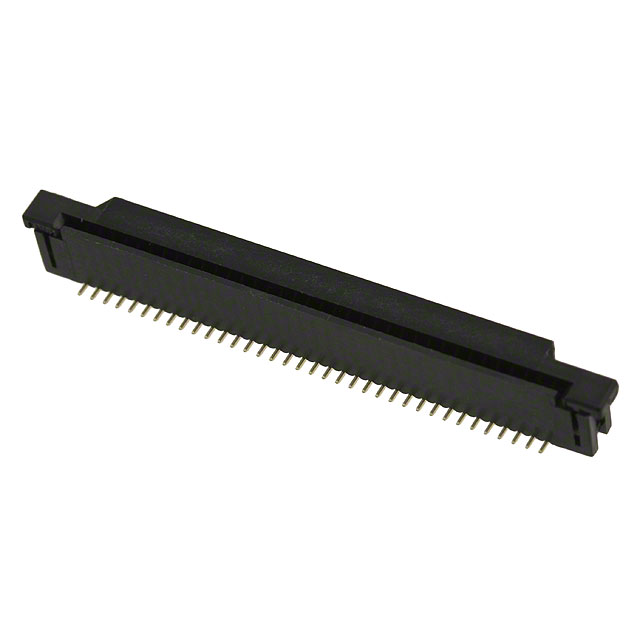

TE Connectivity Raychem Cable Protection 3-1734248-6	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	36

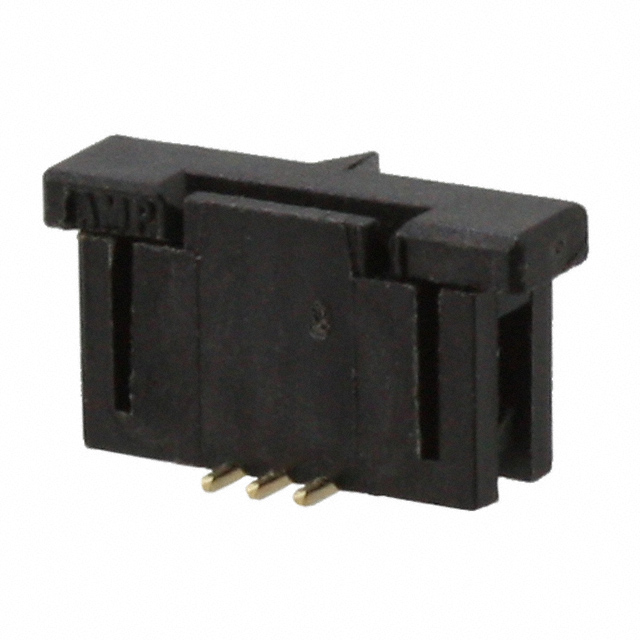

TE Connectivity Raychem Cable Protection 1734248-3	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T

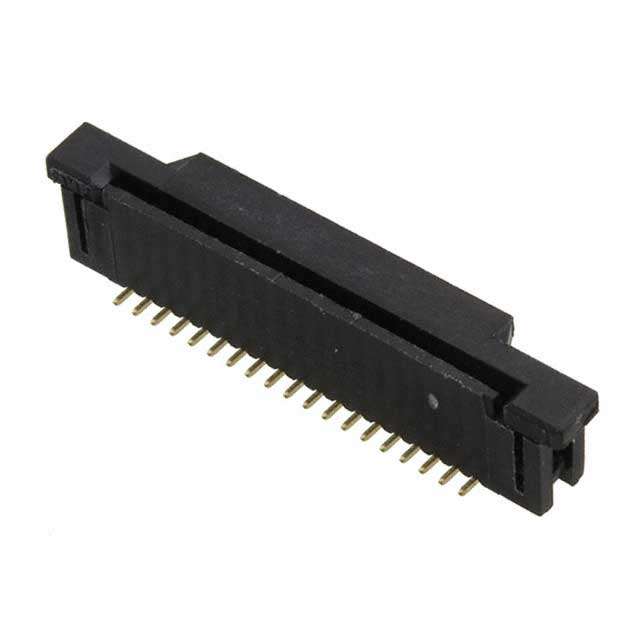

TE Connectivity Raychem Cable Protection 1-1734248-9	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	19
TE Connectivity Raychem Cable Protection 2-1734248-9	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	29

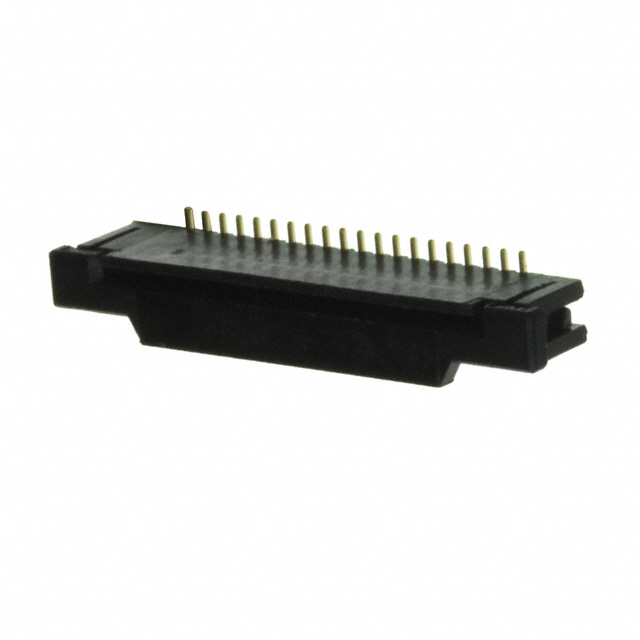

TE Connectivity Raychem Cable Protection 2-1734248-0	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	20
TE Connectivity Raychem Cable Protection 1734248-8	0.3 mm	Slide Lock	Surface Mount	UL94 V-0	Phosphor Bronze	Flash	Polyamide (PA9T) Nylon 9T	Solder	Black	85 °C	-20 C	Contacts Vertical - 1 Sided	20	Black	125 VDC	Gold	FPC	0.039 in	1 mm	Tapered	5.5 mm	0.217 in		Polyamide (PA9T) Nylon 9T	8
