284519 Series

Catalog

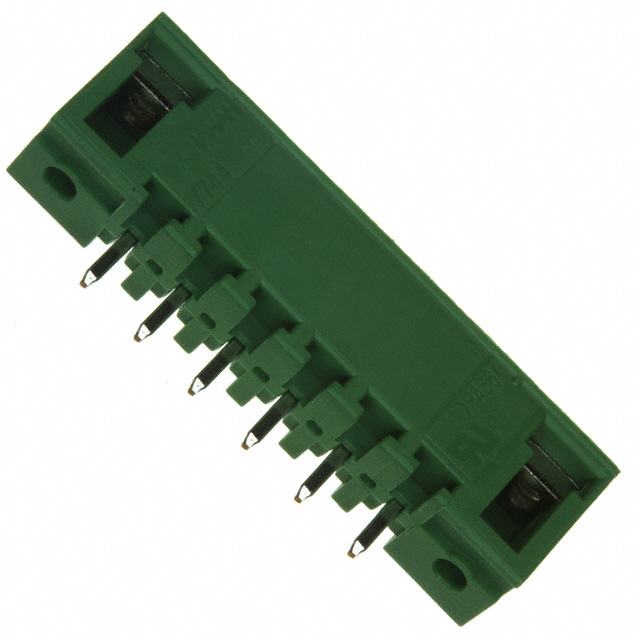

(284519-6) 6P TERMIBLOK HDR DIR VITI 3

Part	Pitch [x]	Pitch [x]	Header Orientation	Material Flammability Rating	Mounting Type	Color	Contact Mating Finish	Insulation Height	Insulation Height	Current - UL	Contact Tail Length	Contact Tail Length	Voltage - UL	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Type	Contact Material	Features	Number of Positions	Positions Per Level
TE Connectivity Raychem Cable Protection 284519-6	0.15 in	3.81 mm	Vertical	UL94 V-0	Through Hole	Green	Tin	0.362 in	9.2 mm	11 A	3.4 mm	0.134 in	300 V	Solder	-40 °C	110 °C	1	Header Male Pins Shrouded (4 Side)	Phosphor Bronze	Mating Flange	6	6

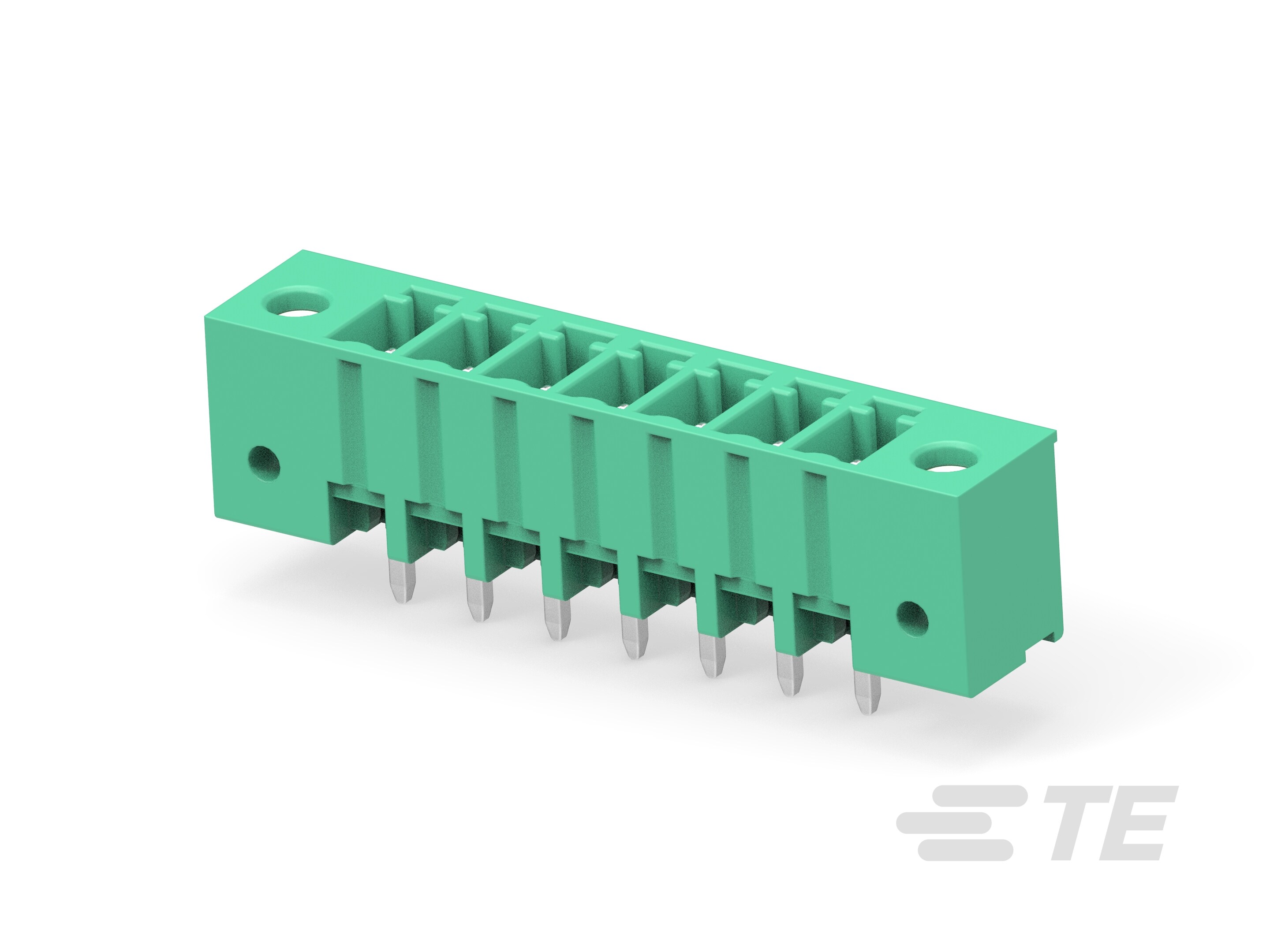

TE Connectivity Raychem Cable Protection 284519-7	0.15 in	3.81 mm	Vertical	UL94 V-0	Through Hole	Green	Tin	0.362 in	9.2 mm	11 A	3.4 mm	0.134 in	300 V	Solder	-40 °C	110 °C	1	Header Male Pins Shrouded (4 Side)	Phosphor Bronze	Mating Flange	7	7
TE Connectivity Raychem Cable Protection 1-284519-1	0.15 in	3.81 mm	Vertical	UL94 V-0	Through Hole	Green	Tin	0.362 in	9.2 mm	11 A	3.4 mm	0.134 in	300 V	Solder	-40 °C	110 °C	1	Header Male Pins Shrouded (4 Side)	Phosphor Bronze	Mating Flange	11	11
TE Connectivity Raychem Cable Protection 284519-8	0.15 in	3.81 mm	Vertical	UL94 V-0	Through Hole	Green	Tin	0.362 in	9.2 mm	11 A	3.4 mm	0.134 in	300 V	Solder	-40 °C	110 °C	1	Header Male Pins Shrouded (4 Side)	Phosphor Bronze	Mating Flange	8	8
TE Connectivity Raychem Cable Protection 284519-9	0.15 in	3.81 mm	Vertical	UL94 V-0	Through Hole	Green	Tin	0.362 in	9.2 mm	11 A	3.4 mm	0.134 in	300 V	Solder	-40 °C	110 °C	1	Header Male Pins Shrouded (4 Side)	Phosphor Bronze	Mating Flange	9	9
