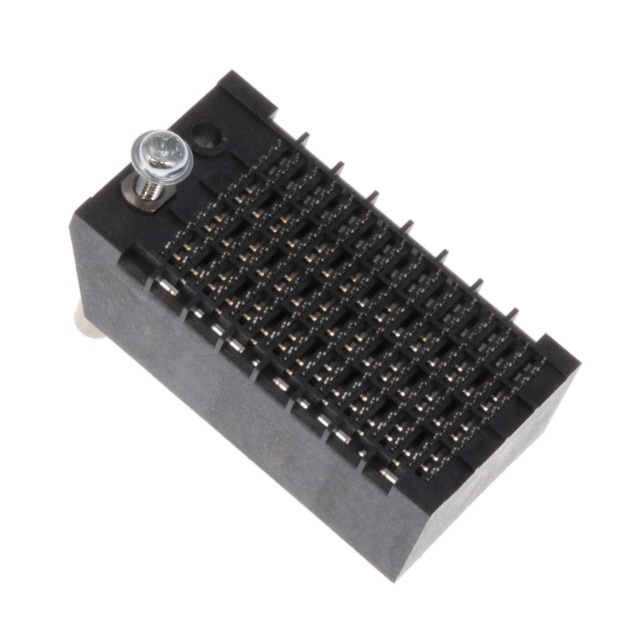

2007831 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
IMP100S,H,V4P16C,RG,LEW39,4.5
| Part | Material Flammability Rating | Features | Connector Type | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Voltage Rating | Current Rating (Amps) | Number of Columns | Contact Finish | Connector Usage | Color | Pitch [x] | Pitch [x] | Number of Positions Loaded | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Guide Pin | Header Male Pins | 128 | 64 | 0.76 Ám | 30 Áin | Press-Fit | 29.9 VAC/DC | 0.75 A | 16 | Gold | Backplane | Black | 0.075 in | 1.9 mm | All | Through Hole | 85 °C | -55 °C | 192 | 12 |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Header Male Pins and Blades | 0.76 Ám | 30 Áin | Press-Fit | 30 VAC | 16 | Gold | Daughtercard | Black | 0.075 in | 1.91 mm | All | Through Hole | 85 °C | -55 °C | 192 | 12 |
