1445054 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

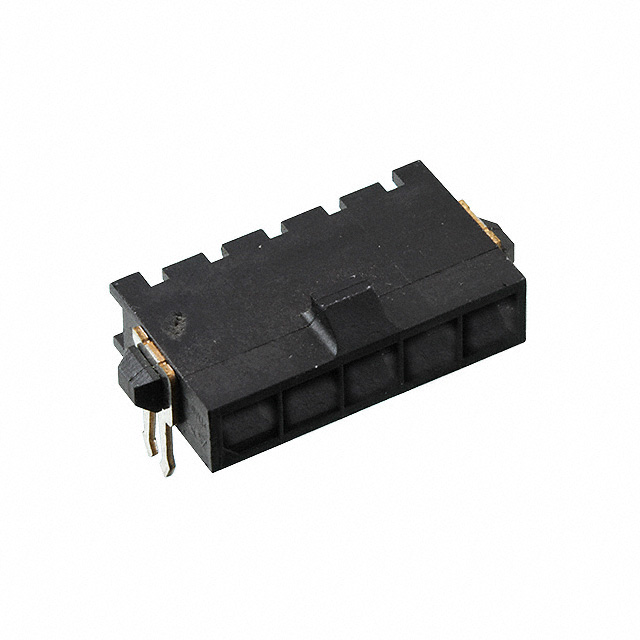

CONN HEADER R/A 5POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Style	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shrouding	Voltage Rating	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Features	Number of Positions	Contact Material	Mounting Type	Number of Rows
TE Connectivity AMP Connectors 1445054-5	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin-Lead	Square	Tin-Lead	Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	5	Brass	Right Angle Through Hole	1

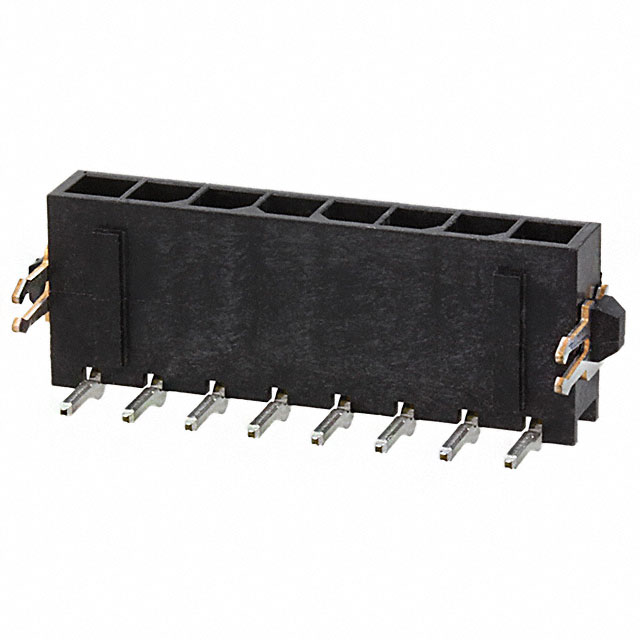

TE Connectivity AMP Connectors 1445054-8	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin-Lead	Square	Tin-Lead	Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	8	Brass	Right Angle Through Hole	1
TE Connectivity AMP Connectors 2-1445054-7	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin	Square		Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	7	Brass	Right Angle Through Hole	1
TE Connectivity AMP Connectors 3-1445054-0	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin	Square		Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	10	Brass	Right Angle Through Hole	1
TE Connectivity AMP Connectors 2-1445054-5	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin	Square		Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	5	Brass	Right Angle Through Hole	1

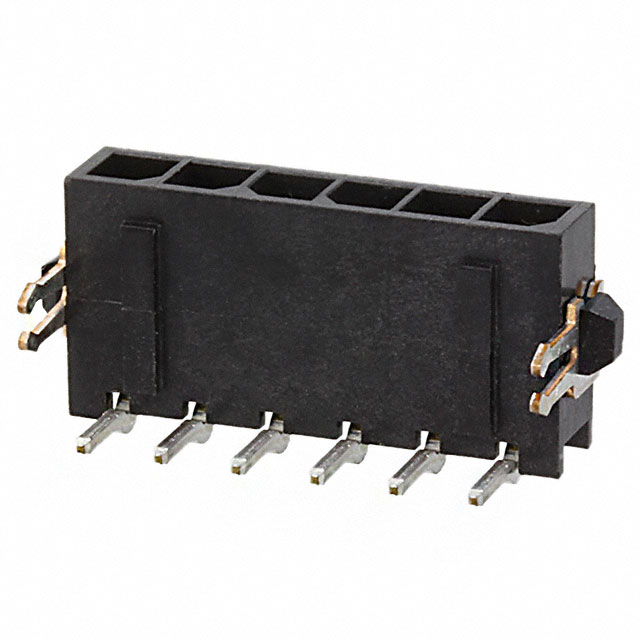

TE Connectivity AMP Connectors 1445054-6	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin-Lead	Square	Tin-Lead	Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	6	Brass	Right Angle Through Hole	1
TE Connectivity AMP Connectors 1445054-4	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin-Lead	Square	Tin-Lead	Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	4	Brass	Right Angle Through Hole	1
TE Connectivity AMP Connectors 2-1445054-9	2.54 µm	100 µin	General Purpose	0.114 in	2.9 mm	Locking Ramp	Solder	100 çin	2.54 çm	Nylon Polyamide (PA)	Tin	Square		Board to Cable/Wire	0.152 in	3.85 mm	All	Black	Varies by Wire Gauge	-40 C	105 ░C	Male Pin	Shrouded - 4 Wall	250 V	UL94 V-0	Header	3 mm	0.118 in	Board Lock	9	Brass	Right Angle Through Hole	1
