NRPN302 Series

Catalog

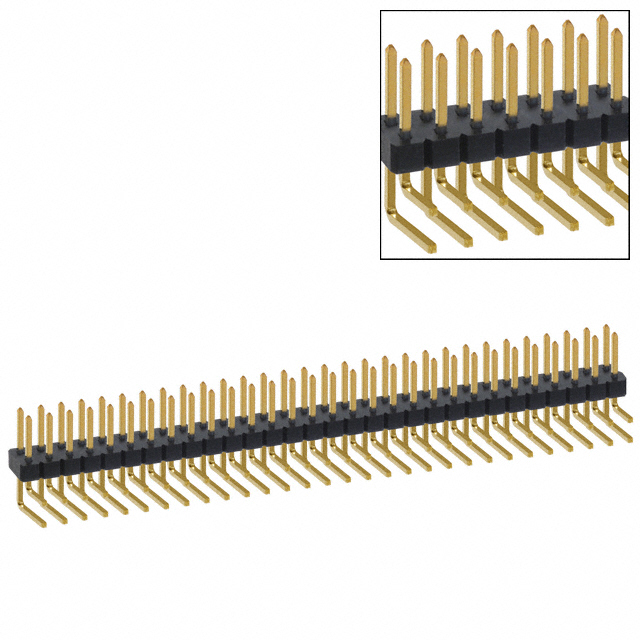

CONN HEADER R/A 60POS 2MM

Part	Contact Finish Thickness - Post	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Style	Contact Length - Post [custom]	Contact Length - Post	Shrouding	Insulation Color	Number of Positions	Fastening Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Type	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Material	Insulation Material
Sullins Connector Solutions NRPN302PARN-RC	Flash	Right Angle Through Hole	Header	Flash	0.079 "	2 mm	0.141 in	3.6 mm	Square	Board to Board Cable	0.11 in	2.79 mm	Unshrouded	Black	60	Push-Pull	2 A	-40 C	105 ░C	All	Solder	2 mm	0.079 in	Gold	Male Pin	Gold	150 VDC	UL94 V-0	2	4 mm	0.157 in	Brass	Nylon 6T Polyamide (PA6T)
